TSP soya protein food machine line

wooden case

Specifications

soya protein food making machine
1.high quality in low price
2.high output and capacity
3.high-speed
4.low power consumption



                   Soya / Peanut Protein Food Machine







Description:



Soybean protein food processing line takes soybean and peanut as main raw materials. After milling, mixing, tempering, high-temperature, high-pressure, high-cutting, then the spherical protein molecules change into chains and becomes layer fiber structure. It is similar with the muscle state of the animal and without the smell of beans.



Raw Material:soya, peanut, soybean



Capacity:  SLR65-5    260KG/H         SLR85-4    500KG/H



Consumption: SLR65-5   84.2kw     SLR85-4   150.3kw



Machine Surface: Stainless Steel



Flow Chart:



Mixer-----Screw Feeding-----Conditioner-----Extruder-----Air Conveyor-----Oven



Technical Parameter:



Technical Parameter of 260kg/h of standard configuration SLG 65-5

Model   Parameter	Mixer	Screw feeding	Conditioner	Extruder	Air conveyor	Five-layer oven
Model	BFJ-II	SLJ-I	DTZ-II	SLG65-V	FSJ-II	DKX-5-8
Installed capacity	4	1.1	4	57.75	1.1	60(heating)
consumption	3	1.1	4	30	1.1	45(heating)
Output	300	300	300	260	300	280



Technical Parameter of 500kg/h of standard configuration SLG 85-4

Model Parameter	Mixer	Screw feeding	Conditioner	Extruder	Air conveyor	Seven-layer oven
Model	BFJ-II	SLJ-I	DTZ-II	SLG85-IV	FSJ-III	DKX-7-8
Installed capacity	4	1.1	4	150	2.2	90 (heating)
consumption	3	1.1	4	80	2.2	60 (heating)
Output	300	500	500	500	500	500



Our service:

1.Provide you with the professional advice on the market,equipments,raw materials and production line ect.

2.Assist you to choose the ideal equipment,design the flow and we can offer on-site service.

3.Make compensate plan to the changeover of the material according to your final product, even we can perform the process at site.

4.Specially design the machines,practice test and provide relevant training as you required

5.One year warranty and life-time maintenance, with favorable price on spare parts permanently.

6.Provide reasonable packing and transportation plan, send technician to install and debug the machines and train your workers.

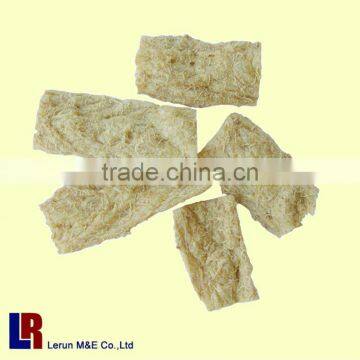

Sample Photos:
