Specifications

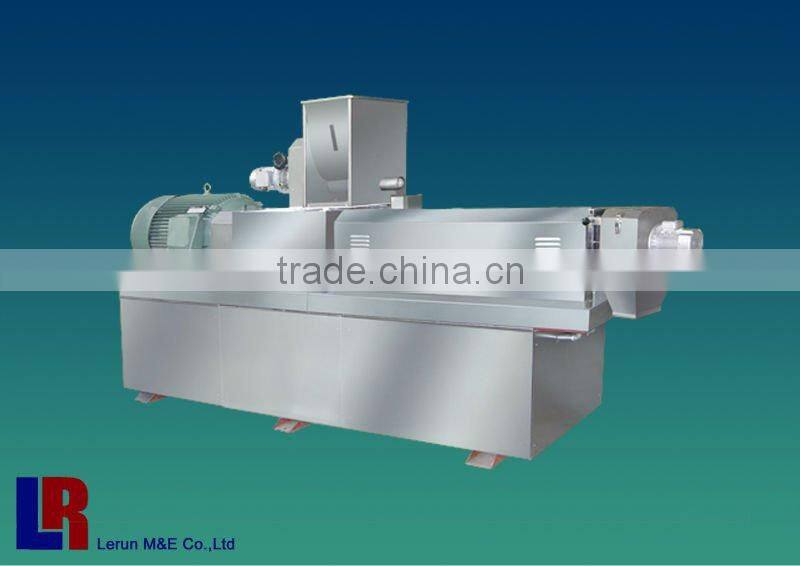

breakfast cereal machinery1.twin screw extruder
2.grain machinery
3.high efficiency with stable performance
4.100-350kg/h
breadfast cereal machinery
Our company research and development this process line after researching the developed countries living habits and breakfast development direction of them. All technologies are all reach the level of Europe. The equipment is made to complete the processing from raw material to finished products output at once. This processing line is high degree of automation, it would not damage inside nutrition ingredient of the products.
range of out put: 100kg/h---330kg/h
Flow chart: raw material→ mixing→ extruding and cutting into small balls→ air conveying→ flaking→ air conveying→ drying→ packaging
Equipment configuration: mixer→ extruder→ air conveyor→ tablet press→ air conveyor→ five-layer oven→ packager
single machines

Model and Main Parameter of 200kg/h
Model
Parameter |
Mixer |
Double Screw extruder |
Air conveyer |
Flaking machine |
Fryer |
Five-layer oven |
Installed capacity (kw) | 4 | 63 | 1.1 | 5.5 | 6 | 30 |
Power consumption (kw) | 3 | 40 | 1.1 | 3.5 | 3 | 20 |
Output kg/h | 260 | 200 | 80 | 200 | 200 | 260 |
Size (m) | 1.0×0.7×0.14 | 2.6×9.0×1.9 | 3.5×6.0×5.5 | 1.8×1.6×1.3 | 5.2×1.7×3 | 4.9×1.3×2.7 |
