Home > Products > 2 Stroke CDH kits > gas powered bicycles for sale/motor bicycle engine kits/bicycle engine kit

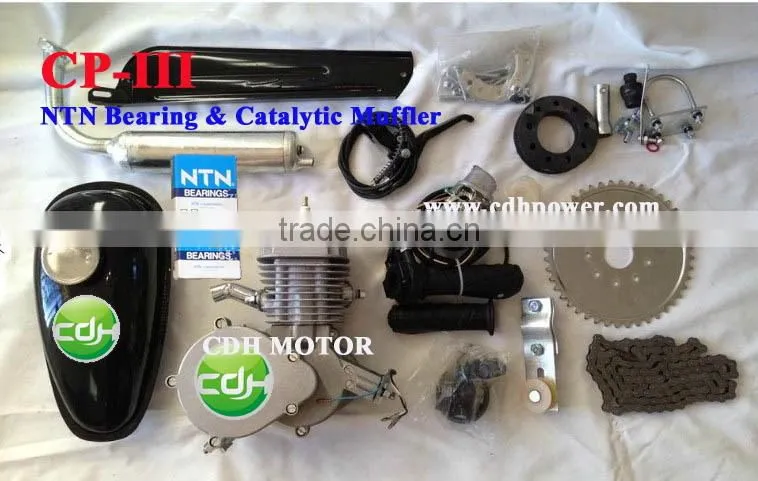

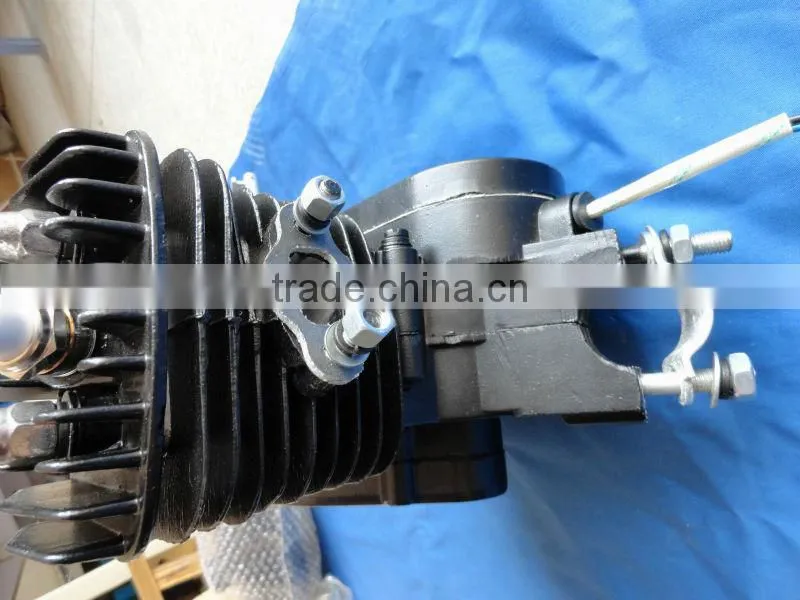

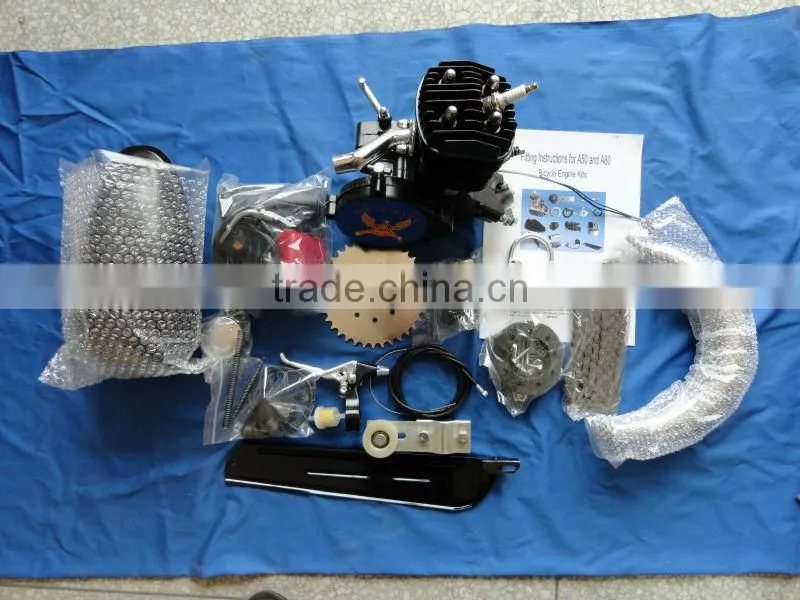

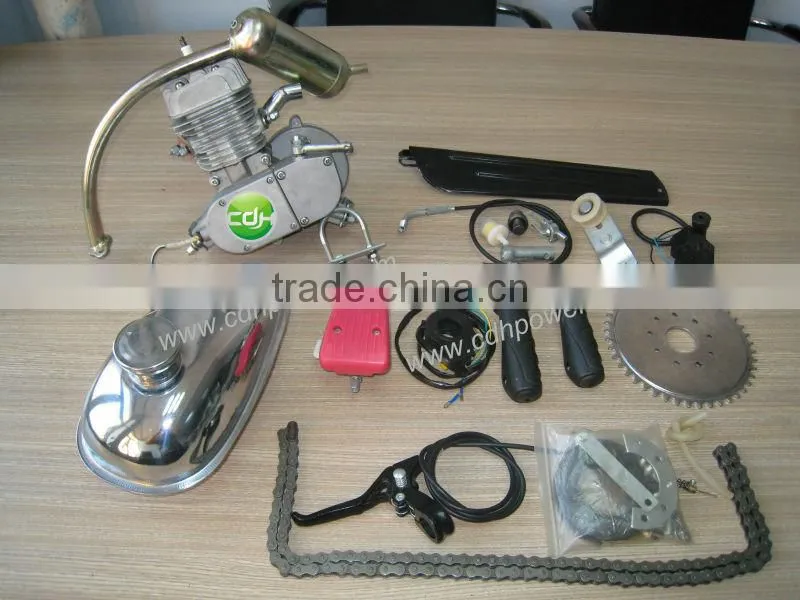

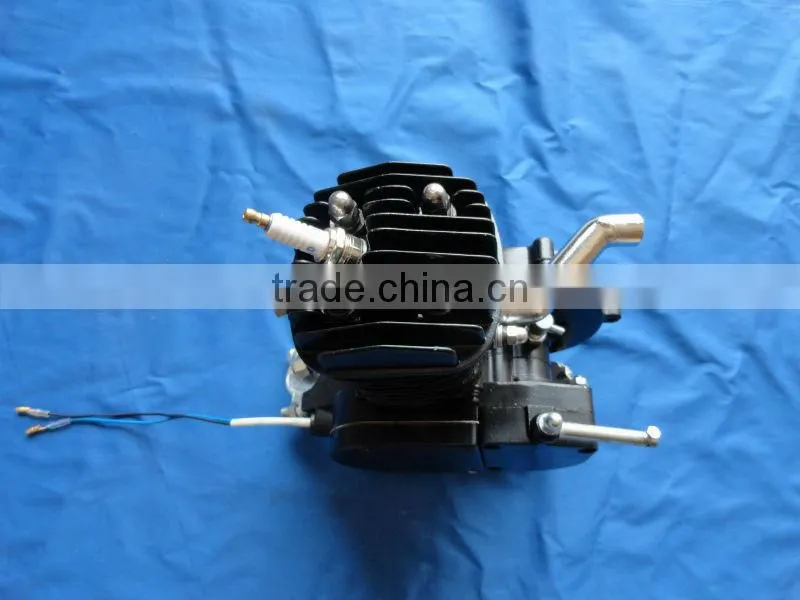

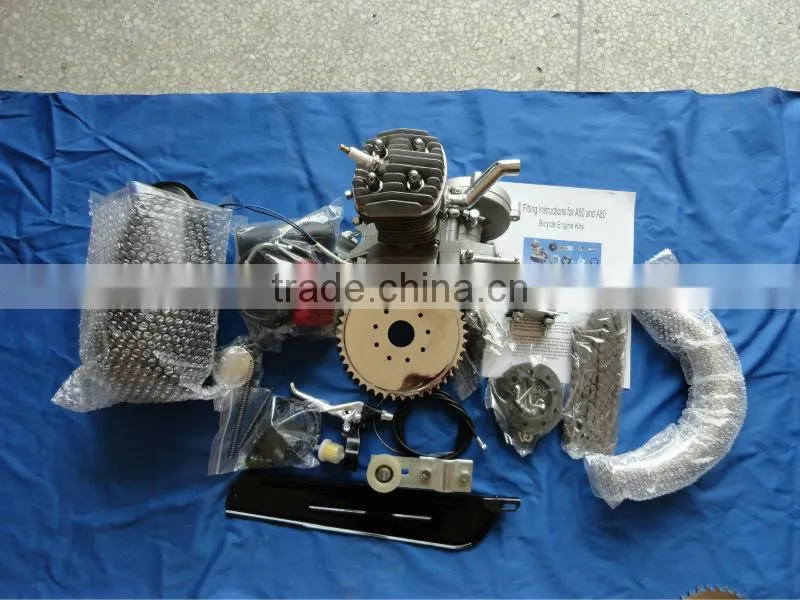

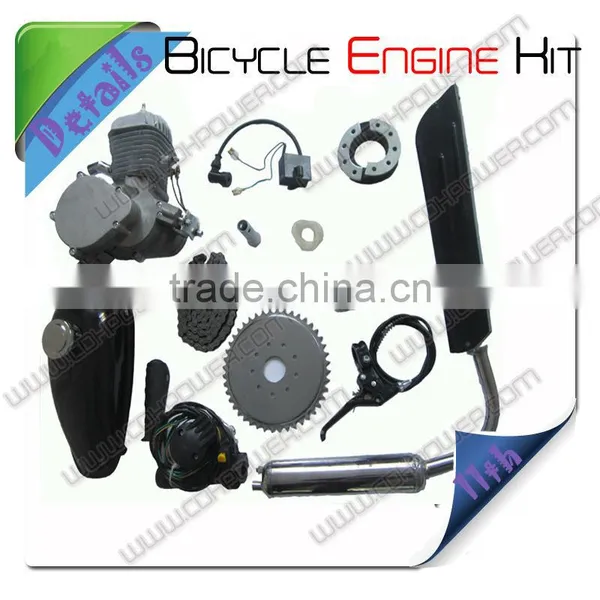

gas powered bicycles for sale/motor bicycle engine kits/bicycle engine kit
- 2000 Piece / Pieces per Month
- Shanghai Ningbo
- Credit Card PayPal
-
High quality mountain bicycle handle cover with cowhorn handle cover
-
Customizable bicycle handle cover, lockable bicycle rubber strip handle cover
-
Hot selling mountain bike spare parts Mountain bike tube Saddle bicycle quick release seat post clip
-
Presta Valve Core Removal / Install Tool Plastic French/UK Tubeless Bike Valve Core Disassembly Tool For MTB,Road Bike,Bicycle
-
44mm 48mm with hole alloy Bicycle Presta Valves
-
34 40 60 mm Brass Bicycle F/V Presta Tubeless Tire Valve
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | CDH, CDH | Model Number: | CDH 48CC/CDH 60CC/CDH 80CC |
Product Description
ON SALE NOW!!!!!!!!!!!!!!!!!!!!!!!!!!!!
2014 NEW MODEL BICYCLE ENGINE KITS!!!!!!!!!!!!!!!!!!
USA DESIGNED!!!!!!
CNC MACHINE MAKING!!!!!
BICYCLE ENGINE KIT !!!!!!!!!!!!
specification
| CDH 48cc | CDH 60cc | CDH 80cc |
Engine type | single cylinder, air-cooling, two strokes gasoline engine | ||
Bore & stroke | 40mmx38mm | 45mmx38mm | 47mmx38mm |
Ignition Mode | CDI Ignition | CDI Ignition | CDI Ignition |
Max. Power | 1.68kw/6000r/min | 1.86kw/6000r/min | 2.2kw/6000r/min |
Compression ratio | 6:1 | 6:1 | 6:1 |
Transmission ratio | 18:1 | 18:1 | 18:1 |
Starting | Kick starting | Kick starting | Kick starting |
Lubricating oil | Two-stroke machine oil (or 10W/40, 10W/30 machine oil) | ||
Mixing ratio of fuel and engine oil | 16:1 for new sets, 20:1 after running 500km | ||
Sparking plug | Z4C 16MMM | ||
Tank capacity | 2L | 2L | 2L |
Fuel consumption | 3L/100km | 3.5L/100km | 4L/100km |
Clutch type | Rub bloc drying | Rub bloc drying | Rub bloc drying |
Cooling | Air-cooling | Air-cooling | Air-cooling |
Shifting way | sprocket | sprocket | sprocket |
Max. speed | 30km/h | 35km/h | 38km/h |
Max. Load capacity | 120kg | 150kg | 180kg |
Fuel Type | 90# | 90# | 90# |
Net weight | 10.5kg | 10.8kg | 11kg |
Gross weight | 11.5kg | 11.8kg | 12kg |
Ctn size | 42×42×17CM | 42×42×17CM | 42×42×17CM |
20'GP | 890pcs | 890pcs | 890pcs |
Mini order | 40pcs | 40pcs | 40pcs |
PACKING
