Product Details
| Place of Origin: | Shanghai, China | Brand Name: | CDH | Model Number: | A80(CDH 48CC/CDH 60CC/CDH 80CC) |
Product Description
Manufacture of Bicycle Engine Kit---Hot Selling

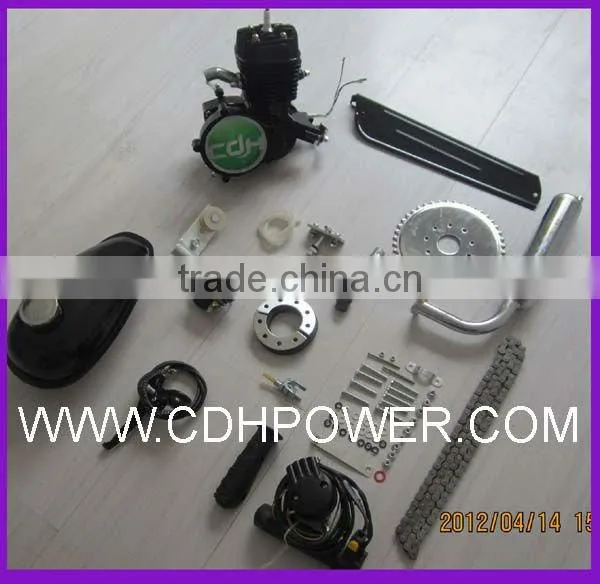

The kit include everything to change bike into moped
Bicycle Engine Kit included :
1. 2-stroke engine

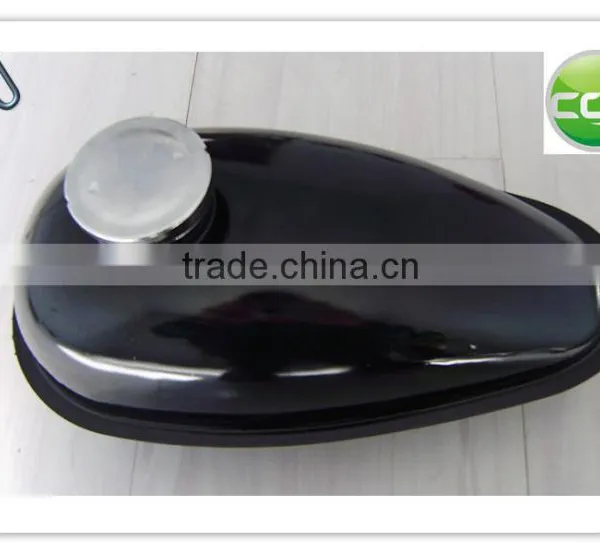

2. Black Gas Tank (2L)
3. Muffler

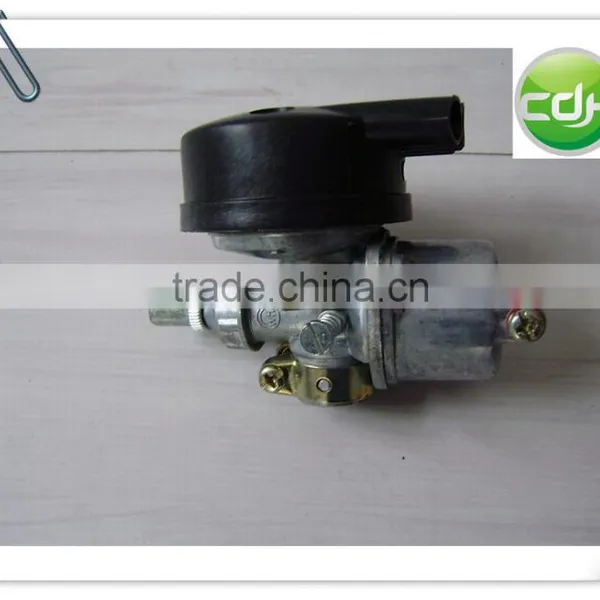

4. Carburetor
5. Bike Chain
6. Chain Guard

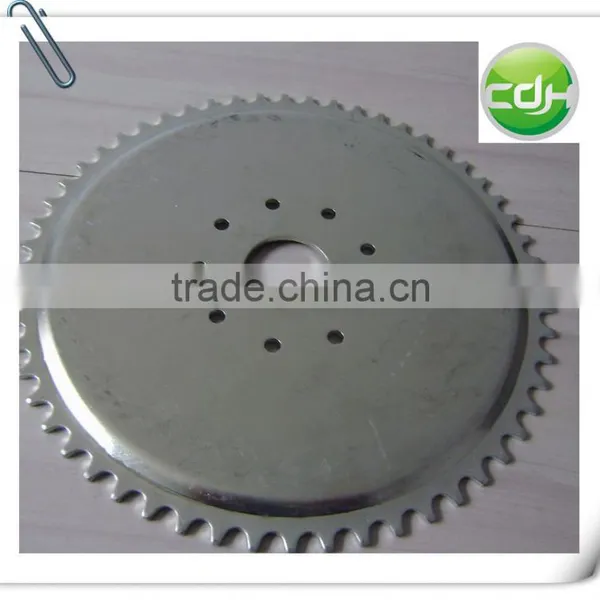

7. 44 Tooth Sprocket with 9 Holes
8. Spark Plug
9. CDI ignition
10. Throttle handle

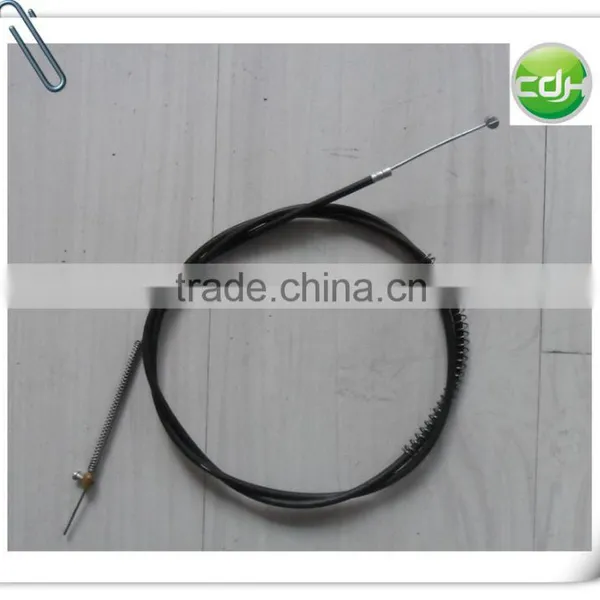

11. Throttle Cable

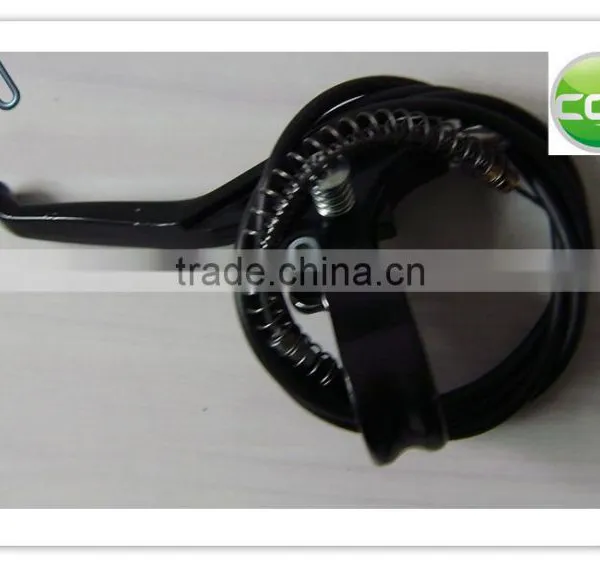

12. Clutch handle
13. Fuel hose
14. Tank value
15. Clamping grubber assembly
16. Screw tool
17. Chain idler assembly
18. All the Needed Mounting Brackets, Gaskets, and Hardware

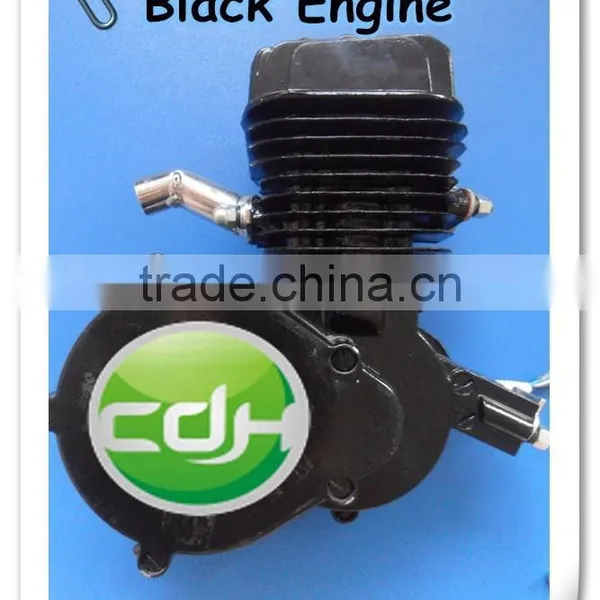

Black Engine
CDH A80 CE Approved Bicycle Moped Gasoline Engine/Motor Bike Gas Kit
| CDH 48cc | CDH 60cc | CDH 80cc |
Engine type | single cylinder, air-cooling, two strokes gasoline engine | ||
Bore & stroke | 40mmx38mm | 45mmx38mm | 47mmx38mm |
Ignition Mode | CDI Ignition | CDI Ignition | CDI Ignition |
Max. Power | 1.68kw/6000r/min | 1.86kw/6000r/min | 2.2kw/6000r/min |
Compression ratio | 6:1 | 6:1 | 6:1 |
Transmission ratio | 18:1 | 18:1 | 18:1 |
Starting | Kick starting | Kick starting | Kick starting |
Lubricating oil | Two-stroke machine oil (or 10W/40, 10W/30 machine oil) | ||
Mixing ratio of fuel and engine oil | 16:1 for new sets, 20:1 after running 500km | ||
Sparking plug | Z4C 16MMM | ||
Tank capacity | 2L | 2L | 2L |
Fuel consumption | 3L/100km | 3.5L/100km | 4L/100km |
Clutch type | Rub bloc drying | Rub bloc drying | Rub bloc drying |
Cooling | Air-cooling | Air-cooling | Air-cooling |
Shifting way | sprocket | sprocket | sprocket |
Max.speed | 30km/h | 35km/h | 38km/h |
Max. Load capacity | 120kg | 150kg | 180kg |
Fuel Type | 90# | 90# | 90# |
Net weight | 10.5kg | 10.8kg | 11kg |
Gross weight | 11.5kg | 11.8kg | 12kg |
Ctn size | 42×42×17CM | 42×42×17CM | 42×42×17CM |
20'GP | 890pcs | 890pcs | 890pcs |
Mini order | 45pcs | 45pcs | 45pcs |
