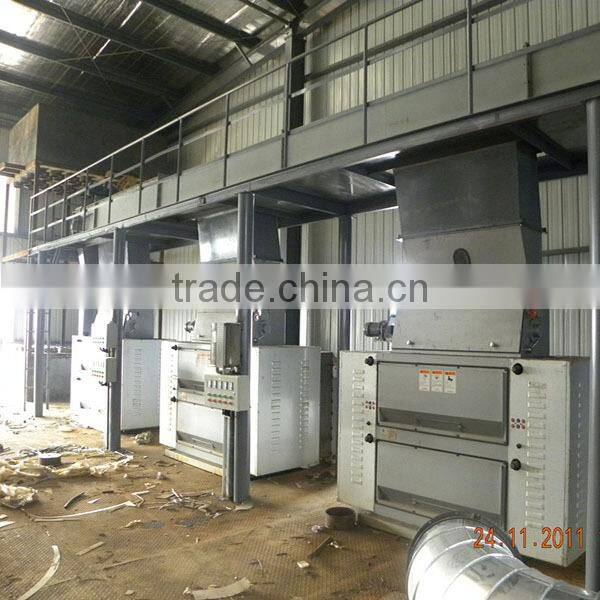

Cold Press Coconut/sesame Oil Processing Plant in Philippines

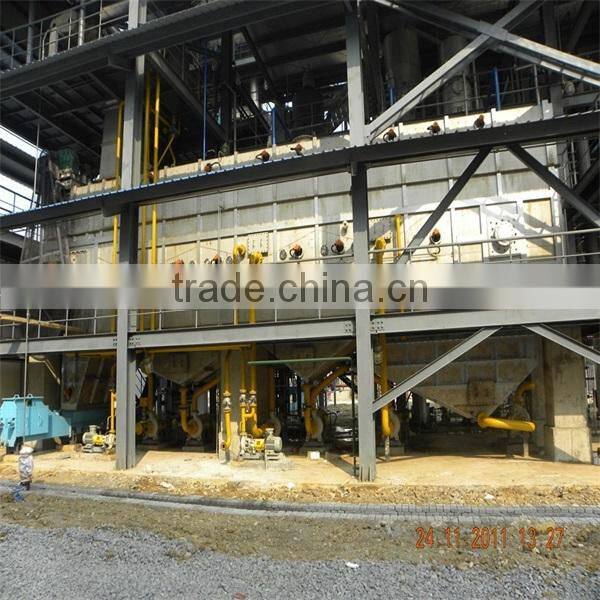

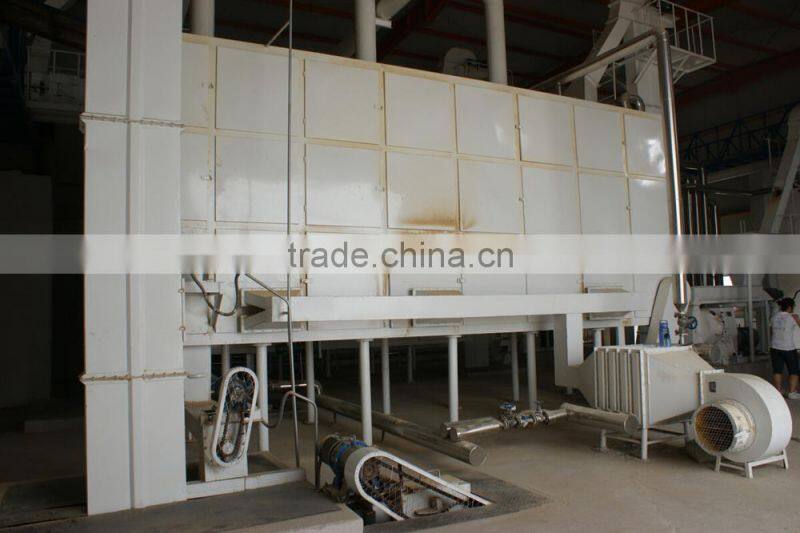

3. Solvent extraction Process of coconut oil processing plant :

1.Adopting negative pressure evaporation can ensure excellent oil quality;
2.Extraction system is highly adaptable,and can adapt to different oilseeds;
3.Unique exhaust gas absorption systems ensure good absorption effect;
4.Full energy-saving design utilize heat energy for many times and saves steam consumption.
Raw material scope of oil press: prepressed cake, pressed cake flake, expanded oilseeds ad all low oil-content oilseeds.

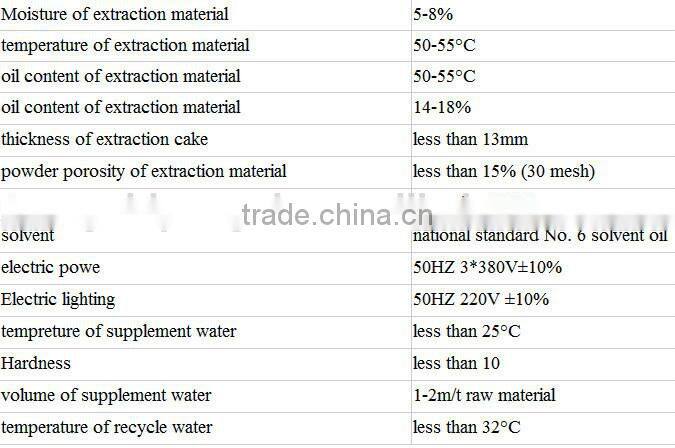

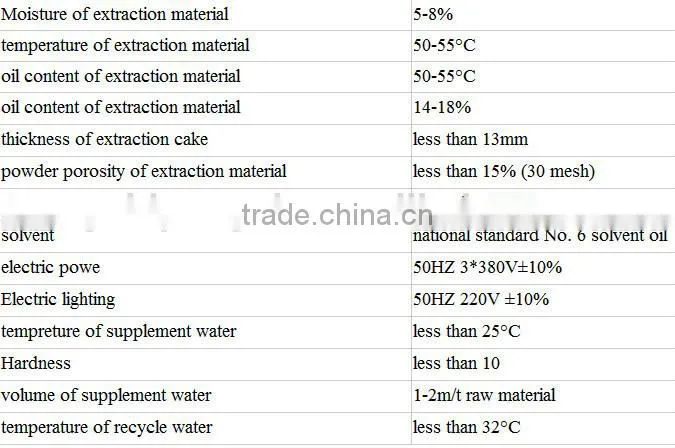

The craft index for 20-200T/D oil extraction equipment:
1. solvent consumption: 2.5kg per ton raw material;
2. steam consumption: 250-300kg per ton raw material;
3. electricity consumption : 12-19 KW.h per ton raw material;
4. water consumption: 0.2m3 per ton raw material ;
5. residual oil of meal : less than 0.5-1.5%;
6. residual solvent of meal: less than 500ppm (passing detonation test)

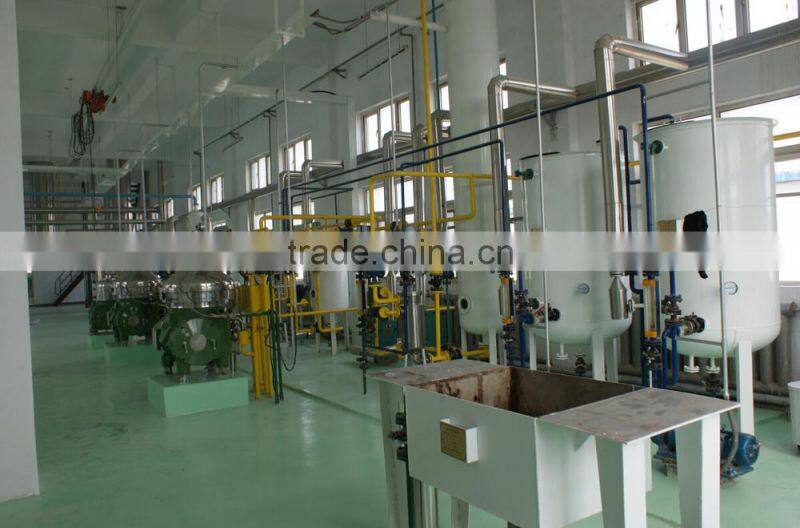

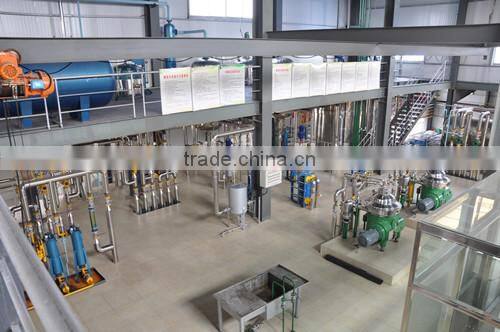

4. Refining Process of coconut oil processing plant :

Degumming and deacidification: The gumming is moved by phosphoric acid and hot water. There are
two ways to move the acid in the edible oil. One is chemical way, the other one is physical way.
The chemical way is using NaOH to react with acid. This way is suitable for the capacity of 5-30T per day. The physical way is using steam and centrifugal to move the acid. This way is used for
capacity from 30-2000T per day.
Decolorization: This step is used to adjust the color of the oil. You can control the color of the edible oil according to the requirement of your market.
Deodorization: The function of this step is to move the special smell in the oil. This is an important
standard for refined edible oil.

5. Factory introduction of coconut oil processing plant :

Zhengzhou Qi'e Grain&Oil Machinery Co.,Ltd is a large-sized joint-equity enterprise which specialize in producing edible oil mechanical equipment and it is also a group enterprise integrating  scientific research, manufacturing, sales as one. Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.

                               6. Certification of coconut oil processing plant :

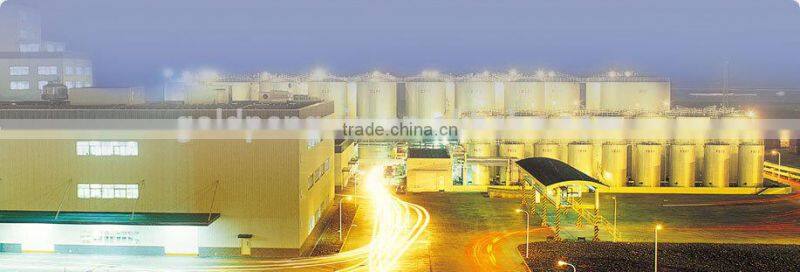

                              7. Our achievements of coconut oil processing plant :

                          8. Our customers of coconut oil processing plant :
