Soybean Oil Expeller Machine for Edible Oil Egypt

Specifications

Soybean oil expeller machine for edible oil egypt

Contact:Annie

Tel:+86 15237168511

Skype:goldpenguin9713

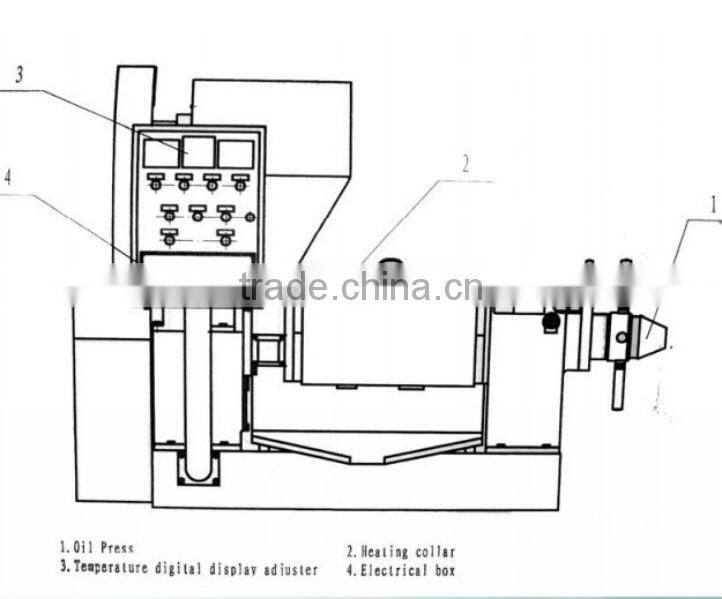

Screw Oil expeller machine

Screw oil expeller machine process:

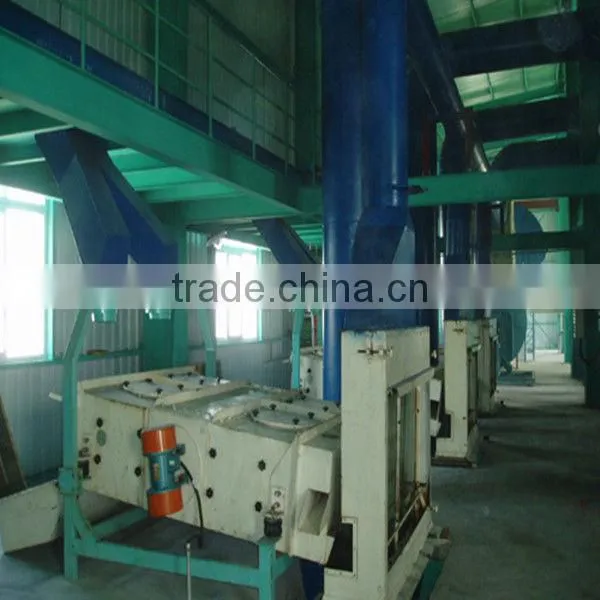

1.Cleaning

In order to obtain high effective cleaning, ensure good work condition and production stability,

high efficient

vibration screen was used in the process to separate big and small impurity. Suction type gravity stoner

removing

machine was applied to remove the shoulder stone and earth, and magnetic separation equipment

 without power

and exhaust system were used to remove iron. Dust removing wind net is installed

2.Dehulling

Put the raw material into the two discs.The relative movement between the two discs,the

insection on the disc

surface make kneading function of the material hull,then make the hull fall down.Separate the

shell and kernel

3.Softening

Adjusting the moisture and temperature , so that increase the oilseed plasticity,reduce powder

when flaking and

sticky roller, in order to ensure the quality of the flakes. conditioning can also reduce the vibration

 of the machine

when flaking roll wear, in order to facilitate   the flaking operate normally.

4.Flaking

Flaking means a certainty granularity of soy lamella was prepared for flaked of about 0.3 mm,

the oil of raw material

can be extracted in the shortest time and maximum, and residual oil was less than 1%. the

thickness is uniform,

moderate size, no out oil,less powder,and with a certain degree of mechanical strength.The fuel

cell wall damaged,

 then shorten the oil discharged from the oil seed away.

 5.Cooking

Put the material into the toaster,the mixing blade is with continuous turning driven by the reducer.

The toaster is with interlayer design, heating media is hot conducting oil or steam, thus keep

the flaking temperature stable.

ing

  This is the oil out process, the sunflower flake will be sent to oil press machine through the

screw conveyor. After pressing, we can get the crude cottoen oil.

Screw soybean oil expeller advantages :

Pretreatment process feature

1. different combinations of process can process various oil plants in one workshop
2. use special intensified pretreatment technology for aroma pranut oil to make it more aroma
3. adopt advanced and reliable shelling technology to meet higher requirements for protein content in meal
4. extrusion treatment is used for raw materials with hard extraction,large-sized powder,and large capacity,which can reduce residual oil an solvent consumption,and increase thecapacity by 50%-80%
5. the raw technology of shelling and low-tempreture treatment can ensure high protein and least denaturation.
