30t/d soy beans oil making machine
soy beans oil making machine process flowchart:
Material embryos → Extraction → Wet meal → Desolventizer → Cooling → Produnt meal packing
↓
Mixed oil → Fiter → Negative pressure evaporation → Crude oil
↓
Solvent recovery
soy beans oil making machine process category :
1. Towline extractor : The amount of processing is≥ 7000T/D .
2. Ring extractor : The amount of processing is ≥3000T/D.
3.Rotocel extractor: The amount of processing is ≤1500T/D.

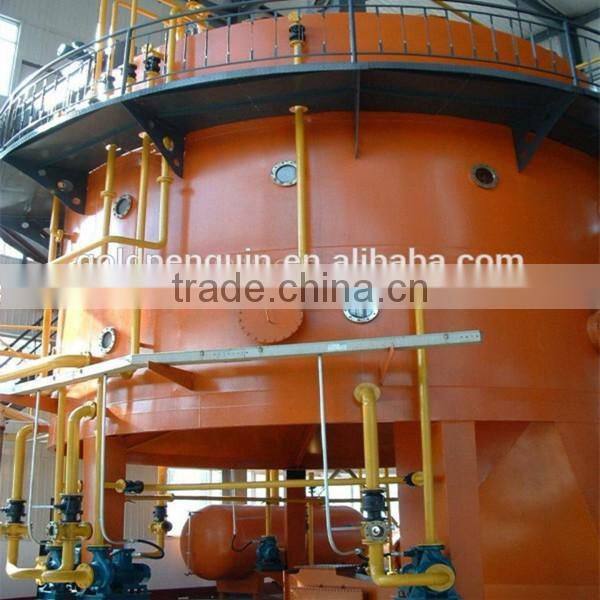

Sunflower oil extraction pharmacy rotocel extractor

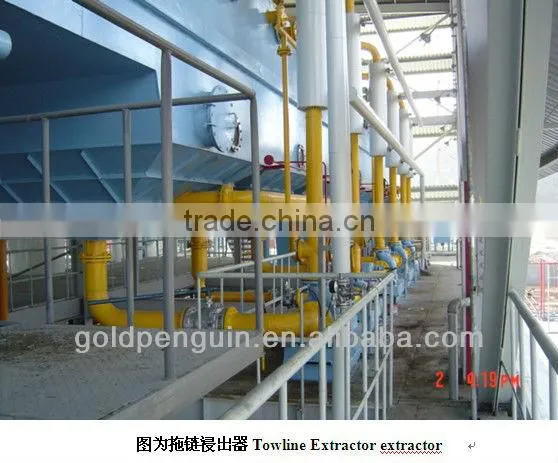

Sunflower oil extraction pharmacy towline extractor extractor

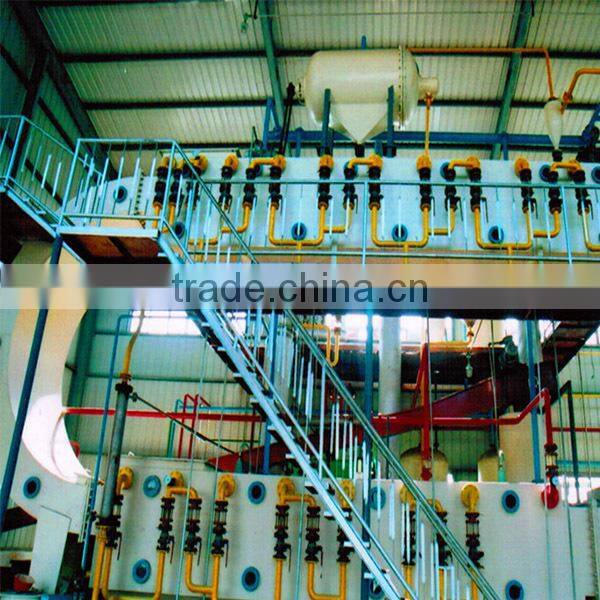

Sunflower oil extraction pharmacy Ring extractor
soy beans oil making machine working principle of leaching :
1. After pretreatment of the oil into the leaching, solvent (n-hexane) will be sprayed on the surface of the oil in the oil, most of the oil will be solvent extraction.
The oil concentration of the first funnel is relatively high, generally 60%-65%. Oil is directly pumped.
2. Oil after the second funnel, solvent will again sprayed on oil, again leaching, oil concentration and mixed oil obtained by solvent content is lower, more and more high.
3. Oil is shipped out extractor.
Main Economic and Technical Parameters of Towline Extractor (take 500T/D as an example)
Steam consumption |
≤ 280kg/t (soybean) |
Power consumption |
installed capacity 320KW |
Solvent consumption |
≤ 4kg/t (No.6 solvent) |
Residual oil in meal |
≤ 1.0% |
Moisture in meal |
12~13% (adjustable) |
Solvent in meal |
≤ 500ppm |
Urase activity |
0.05-0.25 (soybean meal) |
Total volatile matter |
≤ 0.3% |
Residual solvent |
≤ 300ppm |
Mechanical impurities |
≤ 0.2% |
Negative pressure evaporation process
The liquid from the extractor is the miscella containing grease and oil, which can be separated
out according their different vaporization
Vacuum Oil Evaporation Advantages:
a) Vacuum evaporation features high efficiency, thorough de-solvation and low solvent consumption in crude oil.
b) Use the second steam of desolventizer toaster and remaining steam from steam jet pump as
the heat source of the first steam, which can save energy, reduce the condenser configuration
area and save investment.
c) Due to the low temperature of the steam, the crude oil features light color, good quality and
low residual solvent.
Advantages of our oil extraction machine :
1.Full negative pressure control and Paraffin recycling equipment
2.Advanced technology,high quality
3.High safety,interlocking control,antomatic control,stable operation
4.Low consumption,low oil residue and high quality final products
5.Competitive price and suitable oil extraction plant equipment
We specialized in all kinds of vegetable oil machine manufacturing more than 30years,and we are university(Which is famous in Asia about grain and oil major)-cooperation enterprise,and our machine has exported to Russia, India, South Africa, Ukraine ,Nepal, Indonesia, Serbia, Romania and so on.
Our main Main business:
♦10-500T/H oil material first cleaning,drying and storage section turn-key project.
♦ 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean ♦ hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
♦ Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
♦ 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
♦ 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
♦ 10-200T/D Fatty acid esterification production cooking oil production line.
Factory productive cability:
1. How can I get your quotation or project?
Please tell me your flowing information:
Ø What is your raw material?Sunflower,soybean,coconut,peanut,rapeseed or other?
Ø How much raw material do you want to process per day or per hour?
Ø Do you need crude oil or refined oil?
2. How can I believe in your company?
We have more than 30years in all kinds of vegetable oil material machine production,and we have all kinds of production certificates,such CE,BV,ISO9001 and more,please visit our web:,and you will know more of us.
3. What is your sales-after services?
Please don’t worry,dear,if we have chance to cooperate with each other,once we signed the contract,we will build special project service team for you,from the drawing to the production,we will have special workers for all process tracking.And we will arrange our special engineers to go your project site for installation and guidance.
4. What is your MOQ?
At the moment,about the quantity,we have no special requirements,even if you just order one sets,we will do our best for you.
5. What is material of your machine?
Usually,the parts which contact with oil directly and the important are stainless steel,other part is carbon steel or Si-Mn steel and other.And we can design it according to your requirements.
Such Our machine is of high quality, such as valves from Siemens, bearings from SKF,gear box from SEW, etc.. Automatic welding machine, X-ray test machine, steel rolling machine and others are equipped completely, which won customers’ trust from Europe, America, Mideast, Romania, etc.
