solvent extraction machine plant price
solvent extraction machine plant price

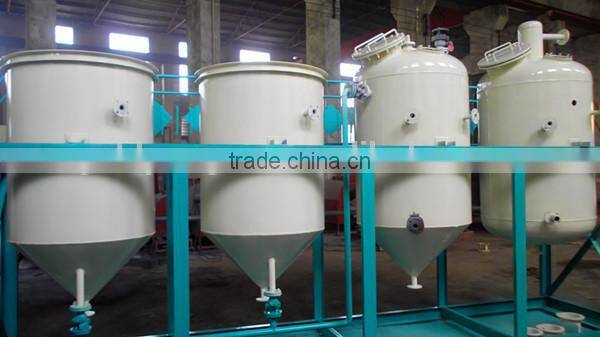

1, solvent extraction machine plant price introduction
This line is mainly for 1TPD-10TPD oil extraction. It can process many kinds of crude oil
such as sunflower, soybean, groundnut, coconut, cotton seed oil, etc. The main processing
equipments are as below:
| No. | Equipment name |
| 1 | Degumming tank |
| 2 | Deacidification tank |
| 3 | Bleaching tank |
| 4 | Frame filter |
| 5 | Deodorization tank |
| 6 | Leaf filter |

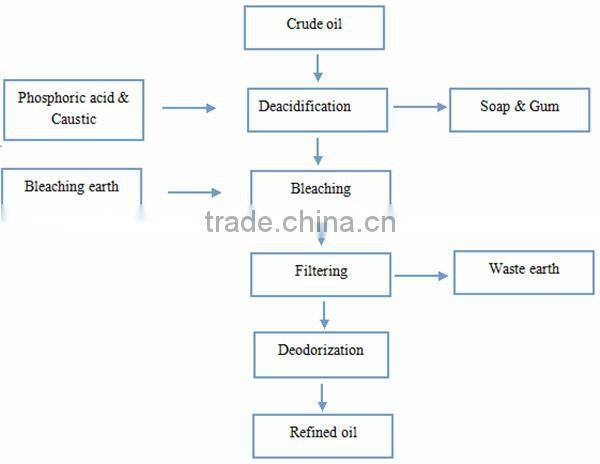

2, how does solvent extraction machine plant price run
3, oil quality standard after refining
1. Grade one for salad oil.
2. Grade two for high quality cooking oil.
3. Mixture and volatile≤0.25%.
4. Impurity≤0.2%.
5. AV (mgKOH/g)≤7.
6. FFA≤3.5%.
Batch and continuous refining technical-economic indicator comparison
| Name | Batch refining | Continuous refining |
| Refining rate (%) | 95 | 97 |
| Oil sediment content (%) | 35 | 25 |
| Power consumption (kwh/T) | 10 | 6.5 |
| Water consumption (kg/T) | 800 | 400 |
| Steam consumption (kg/T) | 180 | 100 |
Our edible oil refining machine advantages:
1, high quality steel
2, low energy consumption
3, easy operation
4, small oil refining machine save space
5, high oil refining rate
6, finish refined oil with high quality
4, solvent extraction machine plant price
We can provide an oil seed completed process line includes conduction oil cooker, elevator,
oil pressing machine and this refining line. If you want to set up a small oil mill,
it is the most suitable choice. Don't hesitate. Feel free to contact us!

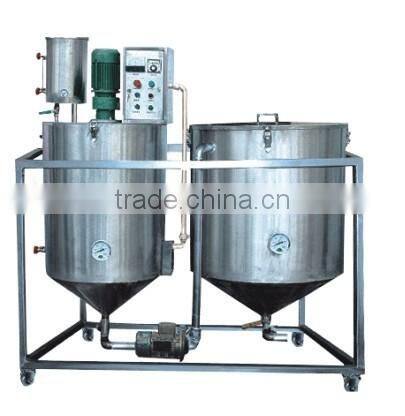

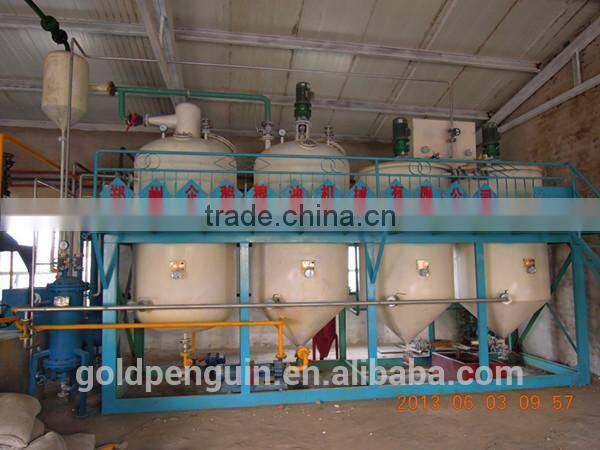

5, specialized 1TPD refining oil machine
Refining pot: It is also named dephosphorization and deacidification tank. Under 60-70°C,
it occurs acid-base neutralization reaction with NAOH. After stirring by reduction box, it can
decrease the acid value in oil and separate impurities, phospholipid which will become soap stock.
Bleaching pot: It is also named bleaching, dewatering pot. It removes water from oil by vacuum.
The bleaching earth is put into bleaching pot. After stirring, filtered, the oil will be more clear.

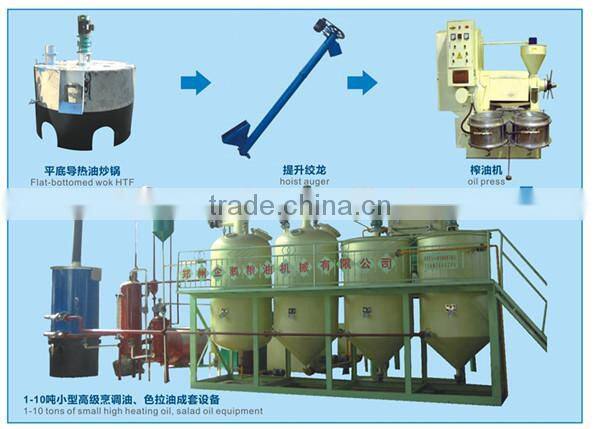

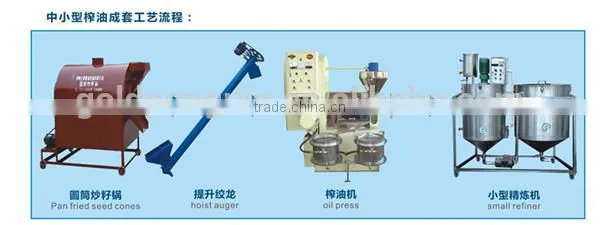

The completed process line with this machine.
Company Information
Our Strength
1, Established in 1982, we have more than 30 years experience. Our goal is to be pioneer in global grain and oil
industry.
2, We have deep cooperation with Henan Machine Design Research Institute and Henan University of
Technology. Our professor often go abroad attending grain and oil conference and forum.
3, We have completed service line including technical department, engineering department, project department,
electronic commerce department, domestic trade department and foreign trade department. After signing
contract, we will set up special team including engineers, installation technicians, drawing designer,
business person, after-sales service person, and so on. We will provide one-to-one service.
Our Service
Whole set of equipment for production line.
Motor and power control system.
Installation material.
Installation and test-run.
-
Drawing of process description, equipment layout, foundation and
hole, construction.
Drawing of power control.
Isolation and painting for equipment.
Water recycling and cooling system outside the plant (i.e. supplementary device).
Staff training and long-term technical service.
Main Business Field
- 10-500T/H oil material primary cleaning,drying and storage section turn-key project.
- 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot dehulling, bean skin crushing, the soybean extrusion, high oil contained pre-pressed cake extrusion and high oil contained flakes puffed directly). Rice bran turn-key project.
- 100-3000 T/D leaching workshop turnkey project (towline extractor, rotocel extractor, loop type extractor,
- DTDC separated machine, the full negative pressure evaporation,
- Paraffin wax recovery, leaching workshop degumming, phospholipid concentration).
- 30-1000T/D continuous physical (chemical) refining line.
- 20-3000T/D sunflower oil, rice bran oil, corn germ oil dewaxing turnkey project.
- 10-200T/D fatty acid esterification edible oil production line.
