30 years experiences soy beans oil press expeller machine

     There are two methods of sunflower cake solvent extractioner,one is prepress and solvent oil extraction,such as sunflower seed,peanut seed,rapeseed and more;The  other is that the materialr after pretreatment and enter into solvent oil extraction workshop directly,such as sobyean,rice bran and so on.

1.What is  soy beans oil press expeller machine Technology ?

  Solvent extraction production line is means that used N-hexane) (C6H14)solvent,soak and spraying to the prepress cake, and the oil was extracted from the oil material,and the oil yield could reach 99.5%,it is the more advanced oil extraction technology at the moment.

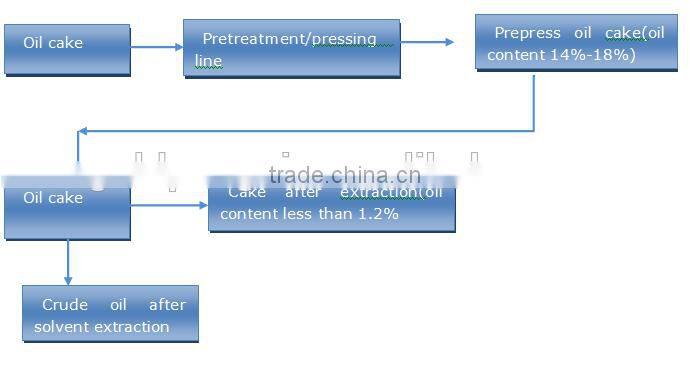

2.What is soy beans oil press expeller machine Flowchart?

Solvent oil extractor divide eto 3 kinds,please check the flowing:

1. Towline extractor : The amount of processing is≥ 7000T/D .

2. Ring extractor : The amount of processing is ≥3000T/D.

3.Rotocel extractor: The amount of processing is ≤1500T/D.

3.What is soy beans oil press expeller machine Operation?

Taking Rotocele extractor as an example.

Usually,small capacity adapt to Rotocel extractor,for example:

Rotocel Extraction:

1.Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;

2.The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power,

smooth operation, no noise and quite low maintenance cost;

3.The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity

and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.

4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.

5.The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella,

improve the quality of crude oil and reduce the evaporation system scaling.

6.Specially suitable for the extraction of various pre-pressed meals.

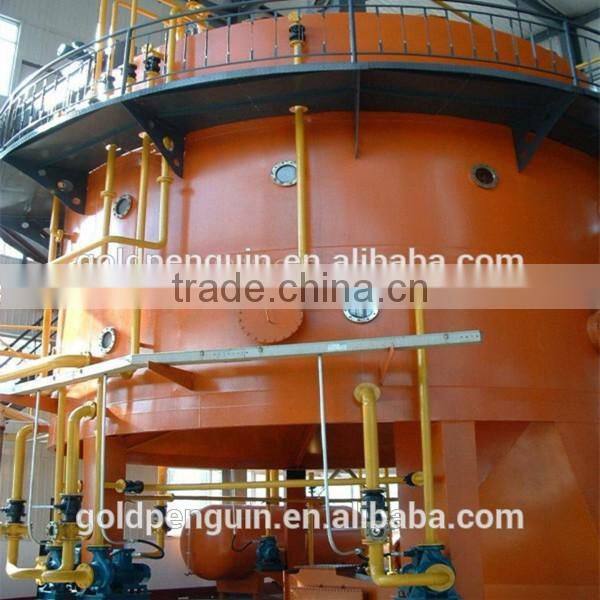

   Rotocel Extractor

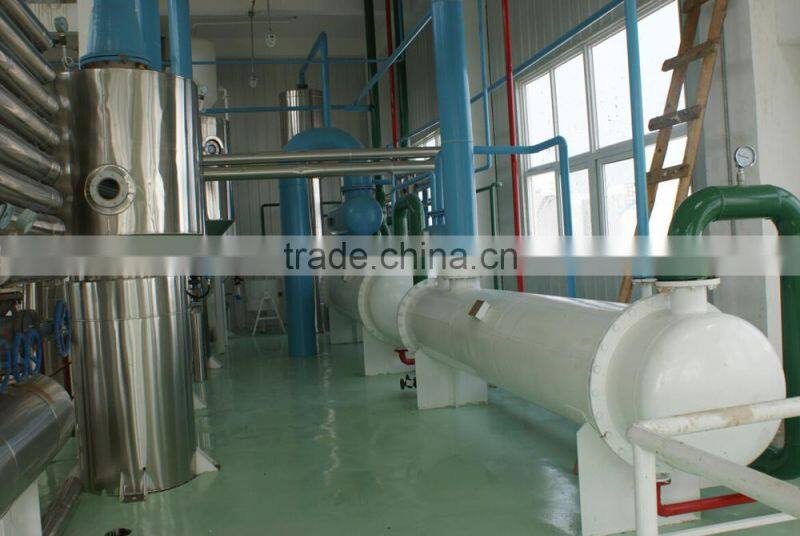

  Solvent condensation and Recovery process

Negtive pressure evaporation process

DTDC

 Sunflower cake solvent extractioner Exterior workshop we built

Main Economic and Technical Parameters of Rotocel Extractor (take 300T soybean extraction as an example):

4.What is Advantages of soy beans oil press expeller machine?

1.High oil yield,and the residual oil is less than 1%.

2.High quality cake.Solvent has a stong ablity to extract oil,so that it can get oil without heating completely to use solvent extraction method,and protect rich of soluble protein in water,and the cake could be used to make vegetable protein.

3.Lower labour strength.

5.Why Choose QI'E soy beans oil press expeller machine?

1.Pre-sale services:

1) Selecting equipment type;

2) Designing and fabricating the products in accordance with the special requirements of the clients;

3) Training technical personnel for our clients;

4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.

3. After-sale services:

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

    We specialized in all kinds of vegetable oil machine manufacturing more than 30years,and we are university(Which is famous in Asia about grain and oil major)-cooperation enterprise,and our machine has exported to Russia, India, South Africa, Ukraine ,Nepal, Indonesia, Serbia, Romania and so on.

Our main Main business:

♦10-500T/H oil material first cleaning,drying and storage section turn-key project.
♦ 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean ♦ hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
♦ Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
♦ 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
♦ 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
♦ 10-200T/D Fatty acid esterification production cooking oil production line.

1.    How can I get your quotation or project?

Please tell me your flowing information:

Ø  What is your raw material?Sunflower,soybean,coconut,peanut,rapeseed or other?

Ø  How much raw material do you want to process per day or per hour?

Ø  Do you need crude oil or refined oil?

2.    How can I believe in your company?

We have more than 30years in all kinds of vegetable oil material machine production,and we have all kinds of production certificates,such CE,BV,ISO9001 and more,please visit our web:,and you will know more of us.

3.    What is your sales-after services?

Please don’t worry,dear,if we have chance to cooperate with each other,once we signed the contract,we will build special project service team for you,from the drawing to the production,we will have special workers for all process tracking.And we will arrange our special engineers to go your project site for installation and guidance.

4.    What is your MOQ?

At the moment,about the quantity,we have no special requirements,even if you just order one sets,we will do our best for you.

5.    What is material of your machine?

Usually,the parts which contact with oil directly and the important are stainless steel,other part is carbon steel or Si-Mn steel and other.And we can design it according to your requirements.

Such Our machine is of high quality, such as valves from Siemens, bearings from SKF,gear box from SEW, etc.. Automatic welding machine, X-ray test machine, steel rolling machine and others are equipped completely, which won customers’ trust from Europe, America, Mideast, Romania, etc.
