Seeds processing Machine soya bean oil extraction machine

1. Extraction Section Processing of soya bean oil extraction machine :

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

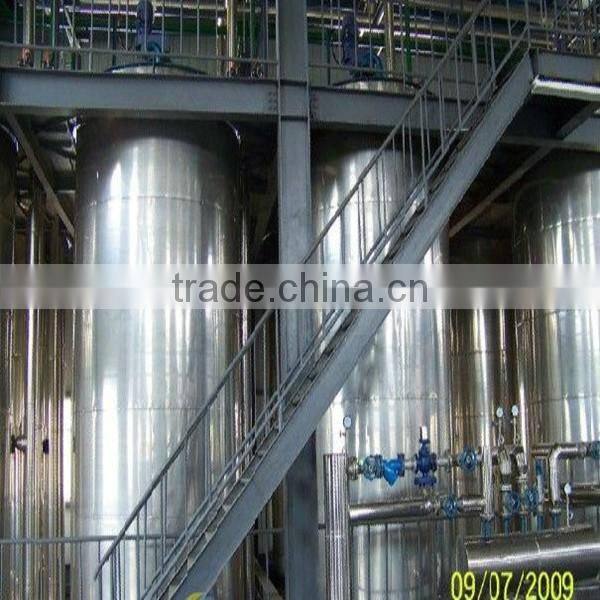

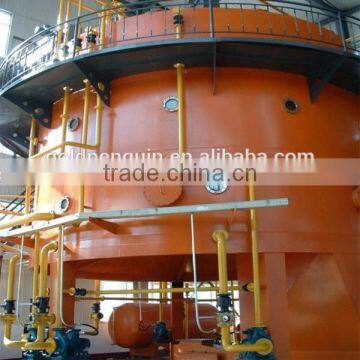

Oil Extractor of  soya bean oil extraction machine

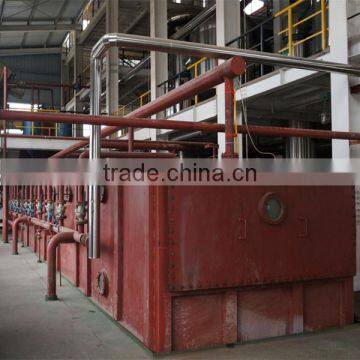

 Negative evaporation of soya bean oil extraction machine

The specification of  soya bean oil extraction machine

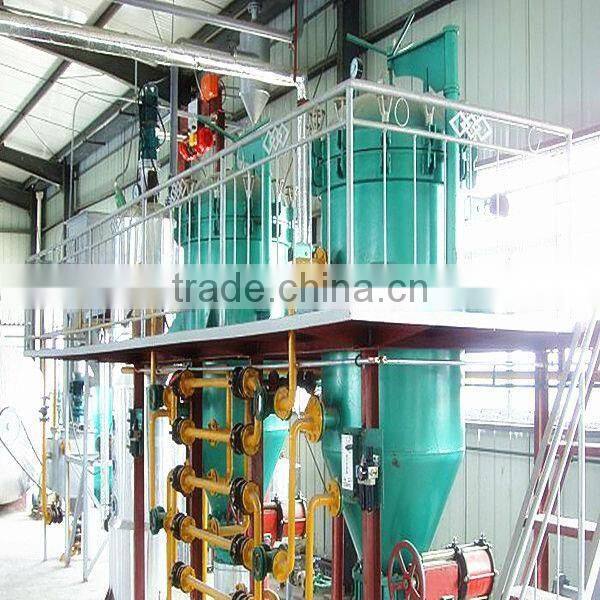

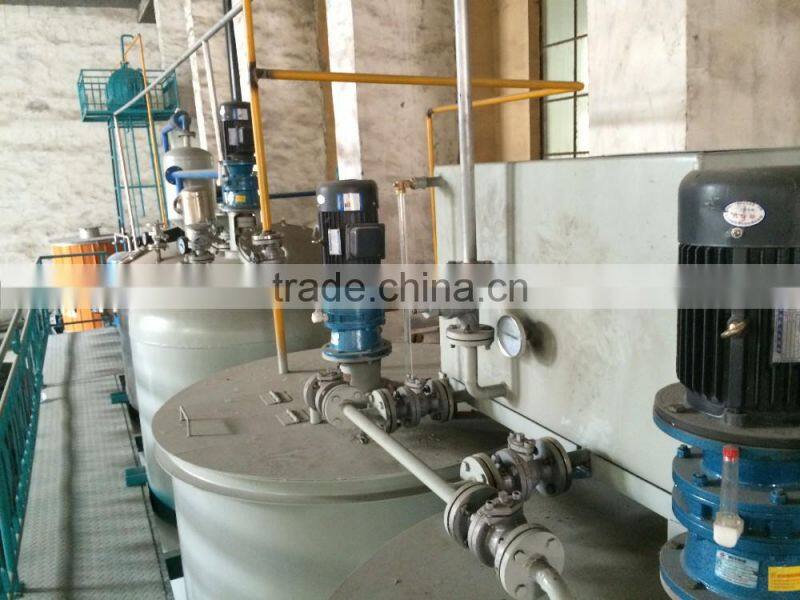

Oil Refining Machine of  soya bean oil extraction machine

Degumming:  We are using a special wet degumming,Thorough removal of colloid. Improve the quality of rice bran oil.

Decoloring :  Premixing the a certain amount of clay with 20% degumming oil in the premix tank , then using the oil pump the premixing oil and the rest 80% oil in the vacuum decolorization tower to get rid of the pigment, then using platetype filter to separate the oil and the waste clay.

Dewaxing:  Wax affects the taste of the oil and it's transparency.Poor solubility in oil, cannot be absorbed by human.

Deacidification /Deodorization:  Avoid large amounts of neutral oil accident losses, using high temperature and high vacuum environment, by using the method of steam stripping deodorization, removing acid.

Specification of refined oil after  soybean oil plant
