Reliable Quality 500td soybean oil plant
Available seeds for soybean oil plant
Raw material |
Oil content |
Peanut |
44-55% |
Camellia |
58-60% |
Castor seed |
50-70% |
Soybean |
18-21% |
Cotton seed |
33-40% |
Rapeseed |
33-40% |
Sesame seed |
45-50% |
Sunflower seed |
40-50% |
Rice bran |
18-20% |
Safflower seed |
29-45% |
Corn embryo/germ |
30-40% |
Walnut |
40-65% |
Flaxseed/Linseed |
29-44% |
Palm seed |
50-55% |
Coconut |
35-45% |
1. Extraction Section Processing of soybean oil plant :
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.
Oil Extractor

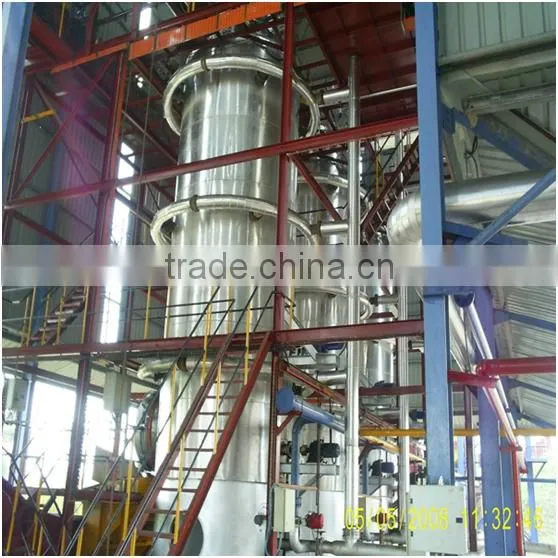

Negative evaporation of soybean oil plant
The specification of crude oil after extraction section
Item |
Standard |
Smell and taste |
The original smell and taste of crude oil |
Moisture and volatile matter (%) |
≤0.20 |
Insoluble impurities (%) |
≤0.20 |
Acid value (mgKOH/g) |
≤4.0 |
Peroxide value (mmol/kg) |
≤7.5 |
Oil Refining Machine of soybean oil plant
Degumming: We are using a special wet degumming,Thorough removal of colloid. Improve the quality of rice bran oil.
Decoloring : Premixing the a certain amount of clay with 20% degumming oil in the premix tank , then using the oil pump the premixing oil and the rest 80% oil in the vacuum decolorization tower to get rid of the pigment, then using platetype filter to separate the oil and the waste clay.
Dewaxing: Wax affects the taste of the oil and it's transparency.Poor solubility in oil, cannot be absorbed by human.
Deacidification /Deodorization: Avoid large amounts of neutral oil accident losses, using high temperature and high vacuum environment, by using the method of steam stripping deodorization, removing acid.
Specification of refined oil
Item |
Standard |
Color (Lovibond Cell 133.4mm) |
≤R2.0 Y20 |
Smell and taste |
≤No smell and good taste |
Transparence |
≤Clear and transparent |
Moisture and volatile matter (%) |
≤0.05 |
Insoluble impurities (%) |
≤0.05 |
Acid value (mgKOH/g) |
≤0.20 |
Peroxide value (mmol/kg) |
≤5.0 |
If you are interested in our machine, welcome to send inquiry to us!
Contact :Sarah
Skype: goldjinxin05
Mobile: 86 15824871876
