Home > Products > Pretreatment Processing Line > Europ vegetable oil standard evegetable oil machine
Europ vegetable oil standard evegetable oil machine
- 30 Set / Sets per Month
- Qingdao Tianjin Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, vegetable oil machine europe | Type: | Other, vegetable oil machine europe |
Automatic Grade: | Automatic | Production Capacity: | 1-100t/d | Place of Origin: | Henan, China |
Brand Name: | QI'E brand | Model Number: | YK55 | Voltage: | 220V/380V/440V |
Power(W): | 50kw | Dimension(L*W*H): | Depend on the capacity | Weight: | Depend on the capacity |
Certification: | ISO9001/CE/BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Europ vegetable oil standard evegetable oil machine
1st Level vegetable oil machine europe machine :
1.What is vegetable oil machine europe ?
The crude oil obtained either from expellers or solvent extraction plant contains impurities, which must be removed to make the oil edible, more palatable and stable against rancidity upon storage. The process of removing these impurities is called refining.
(1). Refining pot: used to P-acid de-gumming, alkali refining de-acid and
water rinsing.
(2).De-color pot: used to remove off pigments, bleaching oils and grease de-hydrate.
(3).De-odor pot: used to remove off oils odor, foreign smells (stainless made) Heat transfer oil stove: supply each device production needing heat energy, temperature reach above 280 ° C.
(4).Steam generator: produce the needing steam for de-odoring and distillation.
(5).Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can
reach above 755mmHg.
(6).Press filter: filter clay, filter out clear oil.
(7).Air compressor: blow dry bleached clay, blow empty the leftover oil in
3.What is vegetable oil machine europe of Each Part ?
Step 1.Degumming with water to remove the easily hydratable phospholipids and metals.
Step 2.Addition of a small amount of phosphoric or citric acid to convert the remaining non-hydralable phospholipids (Ca, Mg salts) into hydratable phospholipids.
Step 3.Neutralising of the free fatty acids with a slight excess of sodium hydroxide solution, followed by the washing out of soaps and hydrated phospholipids.
Step 4.Bleaching with natural or acid-activated clay minerals to adsorb colouring components and to decompose hydroperoxides.
Step 5.Deodorising to remove volatile components, mainly aldehydes and ketones, with low threshold values for detection by taste or smell. Deodorisation is essentially a steam distillation process carried out at low pressures (2-6 mbar) and elevated temperatures (180-220°C).
4.What is vegetable oil machine europe pictures?

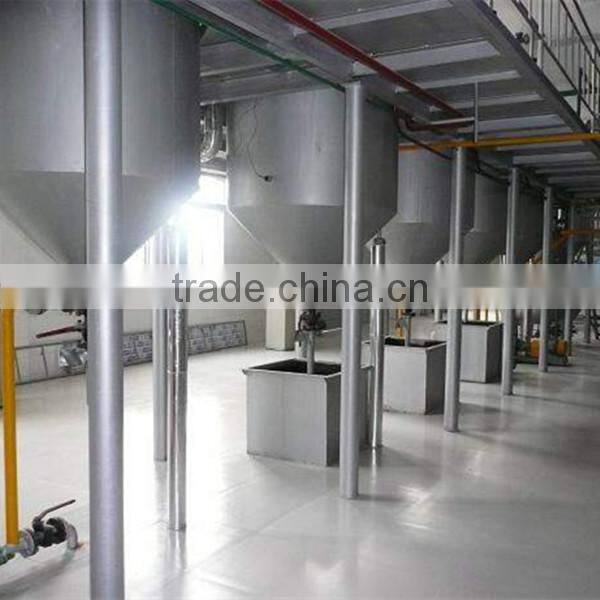

Complete of refining machine of palm fruit oil line

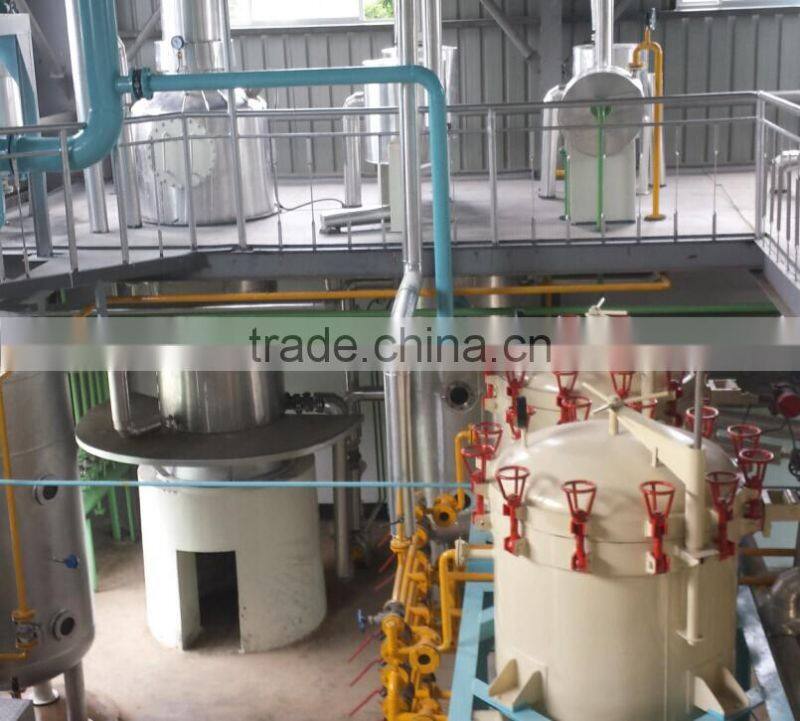

Leaf filter of refining machine of palm fruit oil line

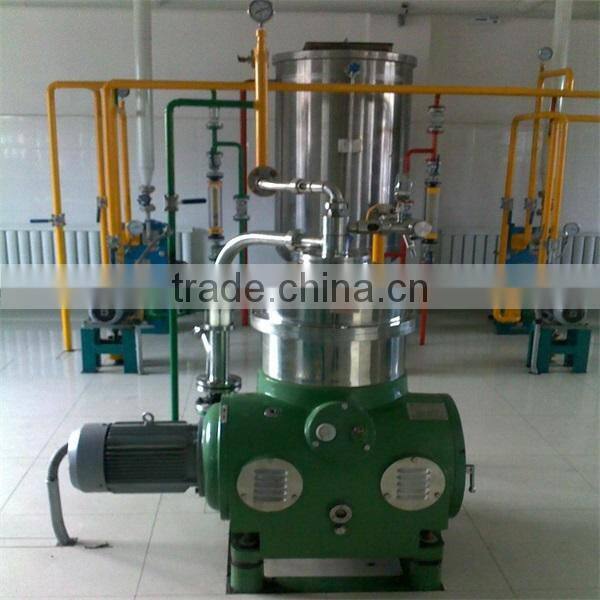

Centrifuge of refining machine of palm fruit oil line

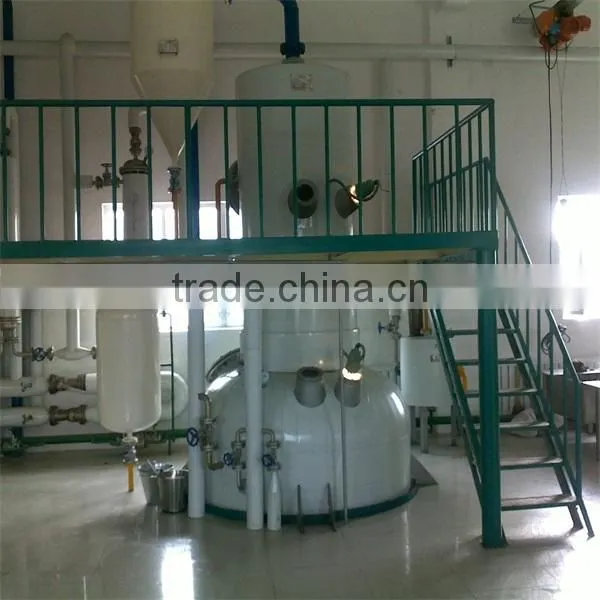

Decoloring section of refining machine of palm fruit oil line

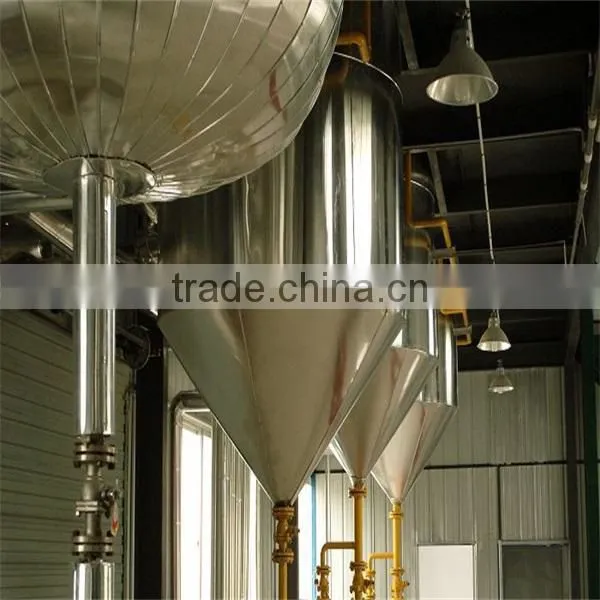

Deodorization section of refining machine of palm fruit oil line
refining machine of palm fruit oil line installated in Bangladesh
5.Why choose QI'E Brand vegetable oil machine europe palm oil ?
1. | Ensure to timely provide complete sets of equipment and accessories. |
2. | Ensure that one-time installation debugging acceptance. |
3. | To provide high quality material with preferential price. palm oil press |
4. | Priority to provide customer our new craftworks and products. |
5. | Free training technological operator to ensure the trained staff can operation independently. |
6. | In the installation process,we will appoint a installation supervision staff on the spot. |
7. | we will offer an experienced project manager, organize a good installation team for the work of field installation debugging. |
8. | After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation,to ensure that equipments can normal operate in full load conditions. We will provide all kinds of information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements withinone month after acceptance. |
9. | In the warranty period, all because of the quality of products has caused the damage or failure of equipment,suppliers will take the responsibility for the free repair and replacing spare part. Due to the damage caused by the customer,we only charge material costs for repair and replacement. After the receipt of customers notice,we will suggests the method to solve problem within six hours,or send specialist to the site to solve the problem within twenty four hours. |
We specialized in all kinds of vegetable oil machine manufacturing more than 30years,and we are university(Which is famous in Asia about grain and oil major)-cooperation enterprise,and our machine has exported to Russia, India, South Africa, Ukraine ,Nepal, Indonesia, Serbia, Romania and so on.
Our main Main business:
♦10-500T/H oil material first cleaning,drying and storage section turn-key project.
♦ 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean ♦ hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
♦ Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
♦ 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
♦ 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
♦ 10-200T/D Fatty acid esterification production cooking oil production line.an
1. How can I get your quotation or project?
Please tell me your flowing information:
Ø What is your raw material?Sunflower,soybean,coconut,peanut,rapeseed or other?
Ø How much raw material do you want to process per day or per hour?
Ø Do you need crude oil or refined oil?
2. How can I believe in your company?
We have more than 30years in all kinds of vegetable oil material machine production,and we have all kinds of production certificates,such CE,BV,ISO9001 and more,please visit our web:,and you will know more of us.
3. What is your sales-after services?
Please don’t worry,dear,if we have chance to cooperate with each other,once we signed the contract,we will build special project service team for you,from the drawing to the production,we will have special workers for all process tracking.And we will arrange our special engineers to go your project site for installation and guidance.
4. What is your MOQ?
At the moment,about the quantity,we have no special requirements,even if you just order one sets,we will do our best for you.
5. What is material of your machine?
Usually,the parts which contact with oil directly and the important are stainless steel,other part is carbon steel or Si-Mn steel and other.And we can design it according to your requirements.
Such Our machine is of high quality, such as valves from Siemens, bearings from SKF,gear box from SEW, etc.. Automatic welding machine, X-ray test machine, steel rolling machine and others are equipped completely, which won customers’ trust from Europe, America, Mideast, Romania, etc.
