Specifications
stainless steel tank1.Storage liquid,food etc.
2.Single-layer;3-layer
3.Easy to operate
4.Type: vertical

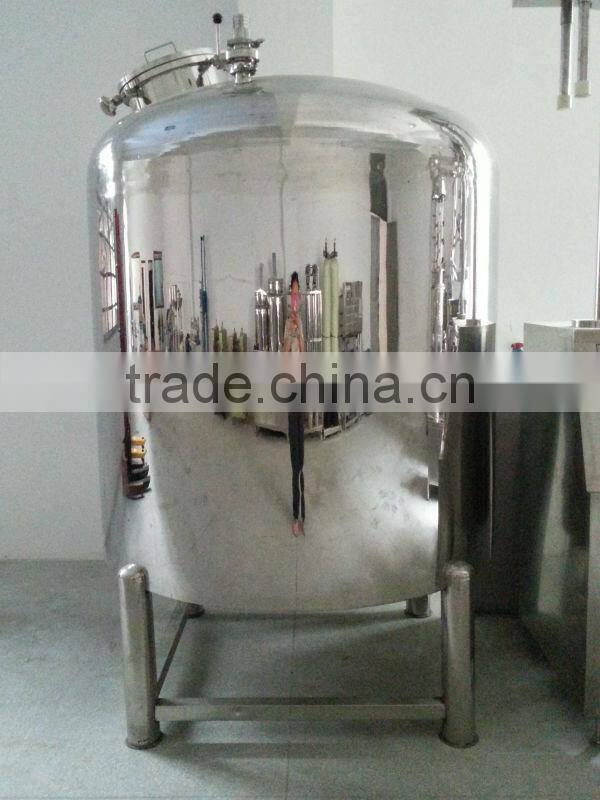

[Product name]JF Series Storage Tanks
[Product introduce]
This equipment can be used in medicine, food, chemical industry, liquid material storage. Has the advantages of
high efficiency, easy operation, the tank is equipped with automatic rotary spray head, ensure thorough cleaning,
adopts SUS304 stainless steel and Matt, accord with GMP standard.
According to different storage capacity by 1000-15000L, storage capacity in the 20000L above the tank, recommend the use of outdoor storage tank, storage
tank made of SUS304 stainless steel, has good heat preservation performance.
Additional device
ü Mixer
ü Inlet, Outlet
ü Manhole
ü Thermometer
ü High, low level alarm
ü Sterile mouth breathing
ü Fly, dustproof breathing holes
ü Aseptic sampling stick
ü Metering device
ü CIP cleaning spray head
Technical Parameters
Model | JFC-1000 | JFC-2000 | JFC-3000 | JFC4000 | JFC-5000 | JFC-6000 | JFC10000 | |
Volume(L) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000 | |
Machine weight(Kg) | 335 | 470 | 705 | 1060 | 1320 | 1550 | 2650 | |
Machine size(mm) | φ | 900 | 1200 | 1500 | 1600 | 1600 | 1800 | 2000 |
H | 2000 | 2800 | 2200 | 2500 | 2900 | 3000 | 3900 | |
