Specifications
DBF-900 Automatic Continuous Band Sealeris suitable for small bags packaging and so on.

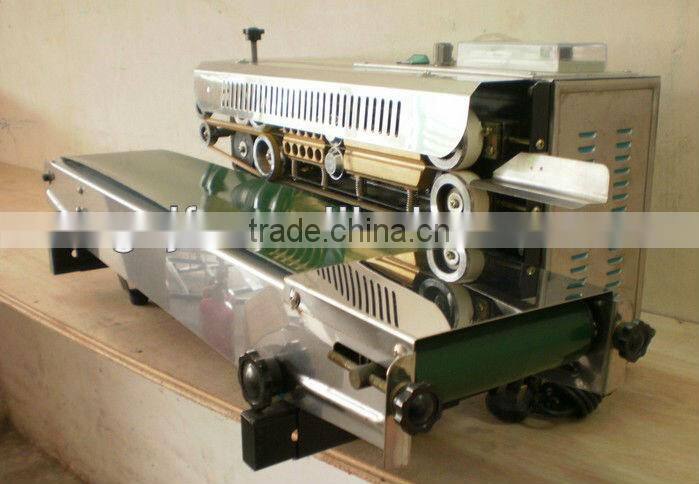

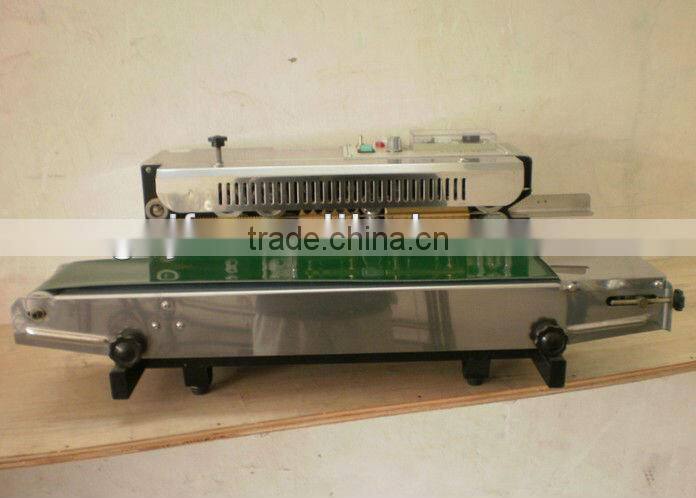

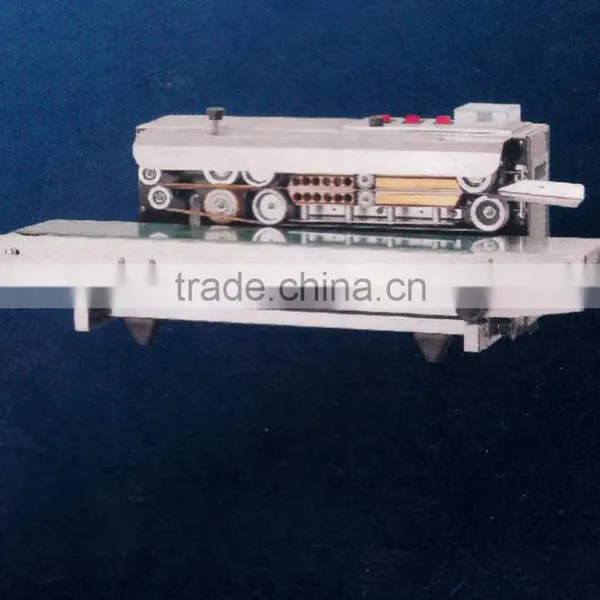

[Product name] FR-900 Continous Band Sealing Machine
[Product introduce]
Overview
This series sealer is in the function on continuous carry, seal and print it one operation, and enable to horizontally. Vertically and with stand, the machine adopts electronic constant temperature mechanism and stepless speed adopts electric constant temperature mechanism and stepless speed adjusts transmission mechanism, it can seal plastic film in various kinds of materials.
Using the principle and scope
Adopts high power heat pipe double constant temperature heating, the moment after composite plastic bag inside film melting point is reached, and then after cooling system with forming embossing wheel, the sealing after the mouth sealing dense, smooth, behind the embossing wheel with concave / convex word can suppress date, clear.
If the cookie bag , mask, instant noodles all composite plastic film sealing.
Technical parameters
Model | FR-900 |
Voltage | 110V/220V 50-60HZ |
Power | 500W |
Sealing speed | 0-12m/min |
Sealing width | 6-15mm |
Temperature range | 0-300°C |
Max. Loading | 3kg |
Printing type | Steel wheel printing |
N.W | 28KG |
Packing size | 860X430X520mm |
Conveyor speed | 0-12m/min |
Conveyor | PVC |
G.W | 28KG |
Points for attention in use
1. This machine is used to ground.
2. Safety first, the interior of the machine mold temperature, don't put hands.
3.Not recommended for the cable plug, preferably with 63A with leakage air switch.
4.Turn off the machine before the first turn, temperature, over 8-10 minutes off switch, prolongs service life of heating tubes.
5.Normal voltage above 200V can rise above 200 degrees, the highest temperature is 150 degrees below 200V.
6.To regularly on the chain wheel shaft with butter, reduce the abrasion of parts of.
7.Every day after work to clean up the health, especially the conveyor belt.
8.If a failure occurs, the professionals can not open the box, timely and contact us.
1, Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But buyer should pay for the airticket, living there charge of our engineer..
2, Commissioning services: the product`s installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.
3, Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there untill your staff can operate it properly and normally.
4, Maintenance services: any malfunction happened once you enquiry us, we will reply you within 48 hours except the special reasons.
5, Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6,Certificate services: we can provide related certificates to customers freely according to the request of customers.
7,Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
