2015 JF New High Precision Automatic Liquid Filling Machine/ Perfume, Oil, Cosmetic Toner, Milk, Juice Liquid Filling

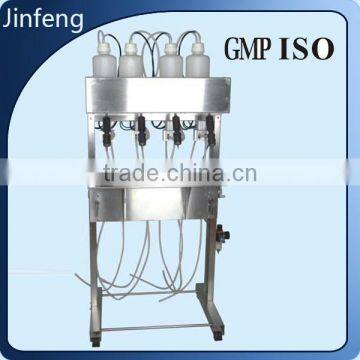

2015 JF New High Precision Automatic Liquid Filling Machine/ Perfume, Oil, Cosmetic Toner, Milk, Juice Liquid Filling photo-1

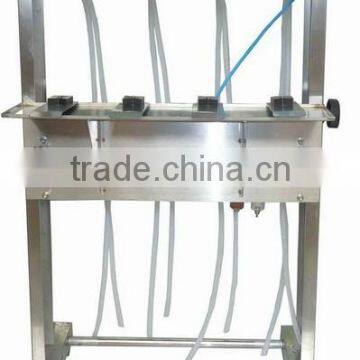

2015 JF New High Precision Automatic Liquid Filling Machine/ Perfume, Oil, Cosmetic Toner, Milk, Juice Liquid Filling photo-2

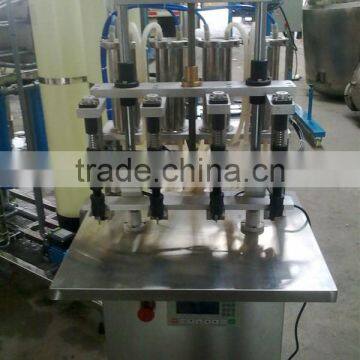

2015 JF New High Precision Automatic Liquid Filling Machine/ Perfume, Oil, Cosmetic Toner, Milk, Juice Liquid Filling photo-3

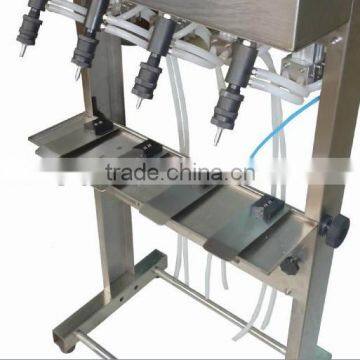

2015 JF New High Precision Automatic Liquid Filling Machine/ Perfume, Oil, Cosmetic Toner, Milk, Juice Liquid Filling photo-4
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity, Medical
Packaging Type:
Bottles, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Commodity, Medical
Packaging Type Bottles, Stand-up Pouch
Packaging Material Paper
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220V
Power 0KW
Place of Origin Guangdong, China
Brand Name JINFENG
Model Number JF-P
Dimension(L*W*H) Customized
Weight Customized
Certification ISO9001
After-sales Service Provided No overseas service provided

2015 JF-P Perfume Filling Machine (2 Head/Head)



2015 JF New high precision automatic liquid filling machine/ perfume, oil, cosmetic toner, milk, juice liquid filling





Overview



JF-P series liquid level control of the filler machine design and construction is through stable vacuum suction filler material to the

container and the filling volume is fixed on the surface of the liquid filling way. When the material to reach filling mouth, redundant

material recycling to recycle tin. Filling liquid level height depends on the depth of the filling nozzle inserted into the container, so

whether the container is consistent, liquid level is always the same. Especially suitable for filling perfume, toilet water, sesame oil

wine, liquor, etc liquid,JF-P series machine easy to maintain, do not need special maintenance tools, has a high filling precision

there will be no leakage phenomenon,We can according to your special request make to order the number of filling.

 the mouth.



Characteristic



Filling capacity to control the way the height of liquid



Bottle shape is not critical



Simple structure, easy operation and maintenance



Pure pneumatic machinery meets the requirements of anti-explosion



Equipped with automatic drainage system





2015 JF New high precision automatic liquid filling machine/ perfume, oil, cosmetic toner, milk, juice liquid filling





Technical parameters



Filling volume

2- unlimited

Filling speed

60Bottle/min,(for 50ml/Bottle, water, with 4 filling nozzles)

Filling Accuracy

liquid level ±1mm

Air supply

0.5-0.8MPa
