Help CenterAutomatic Liquid Packaging Machine (high Speed )
Related Products
-
PE,PVC Film Steam Shrink Packaging Machine/shrinking Machine/wrapping MachineUS$ 100 - 1,000MOQ: 1 Set -
Liquid Vacuum Packaging Machine/liquid Vacuum Sealer/liquid Vacuum Sealing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
China Supplier Accept Wholesale Best Grade Small Strapping Machine ,Automatic Corrugated Box Strapping MachineNegotiableMOQ: 1 Piece
-
2015 New Arrival Hot Selling Strapping Machines Packaging ,China Carton Sealer Strapping MachineNegotiableMOQ: 1 Piece
-
2015 New Arrival Hot Selling Semi-Automatic China Carton Sealer Strapping Machine ,Adjustable Strapping MachineryNegotiableMOQ: 1 Piece
Scope of application
Widely used in food, medicine, chemical industry, such as: curry sauce, bean paste, Sichuan chili sauce, bean paste, lotus seed paste, fish meat, fruit filling, stuffing melon, fruit sauces, hot pot seasoning sauce, roasted salad dressing, fruit sauce, Ding flesh, flesh pieces, fruit filling, edible jam, baking jam, fruit, fruit paste, peanut sauce, spicy sauce, tomato paste, fruit paste transparent, liquid additive, cheese, soy sauce, white wine, mineral water, liquid, etc. ! As well as non-food detergent, grease and other fluid, semi-fluid automatic quantitative packaging.
The packaging machine can pack 500 grams to 10 kg range of materials. Bag length can be adjusted, and when it comes to packing specifications, a variety of packaging bags wide timing, can according to the packaging specification and weight of the bag, to purchase multiple sets of different packaging specifications of the molding machine, pump with different material. Objects can be achieved under high temperature condition of automatic quantitative filling packaging, can effectively improve the efficiency of production, to avoid the secondary pollution caused by bacteria. Can form a complete set of our cooling conveyor sink cooling equipment, plastic blow drying machine, conveyor belt production line equipment, so as to improve the overall efficiency. Avoid the second pollution!
Function
Fluid, semi-fluid conveying, bag forming, weight regulation, vacuum sealing, cutting, counting, etc.

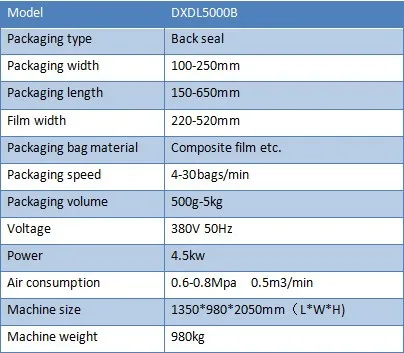

Technical parameters
Note : In case of inconformity of the data in the form due to technical improvement or customization , the real object shall prevail.
1.The machine appearance and molding parts adopt stainless steel, clean and tidy, accord with the food sanitation standards.
2.The computer operating system adopts imported color touch screen control, digital humane management and a range of advanced features material shortage, lack of packaging materials, automatic shutdown alarm in time, so that the operation easier, more convenient maintenance.
3. Control part of the Japanese Mitsubishi PLC programmable control, stable and reliable performance, with a self-test prompts.
4. Pipeline adopts imported 304 mirror tube, smooth conveying fillings stability. Based on the rapid installation joints, pipe connection disassembling quickly and easily, to facilitate cleaning.
5. Advanced control the long-term testing program, the package weight can reach six thousandths of error, far below the national standard weight error.
6. Feed pump using 304 stainless steel pump, durable, high standard pressure, especially suitable for high viscosity material conveying.
7. Electrical originals adopt international brand products, reliable quality, convenient to purchase replacement.
8. Rotor pump filling system filling does not rotate, squeeze, does not destroy the structure of fillings, does not constitute a filling color, no effect on the taste appearance.
9. Packaging capacity can reach more than 1.5 tons per hour, 85 ℃ or more complete automatic filling sealing, avoid secondary pollution, improve the work efficiency, reduce production costs.
10. Especially for piping design features a set of cleaning system, cleaning pipe is very convenient.
Delivery
Shipping Details
Usually by sea
About Us
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Service
1,We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you .
2,Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3,If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4,We offer the video to you teach you how to use ,fix ,maintain this machine.
5,When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
