PE,PVC film steam shrink packaging machine/shrinking machine/wrapping machine
- 500 Set / Sets per Month
- Guangzhou
- T/T Credit Card PayPal
- Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
- MK60S Semi Automatic Strapping Machine
- Mastek Strapping Head
- MK900 Fully Automatic Strapping & Wrapping All In One Machine
- Chocolate Candy Foil Folding Wrapping Machine
- chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Medical | Packaging Type: | Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 15KW | Place of Origin: | Guangdong, China |
Brand Name: | Jinfeng | Model Number: | PX2020 | Dimension(L*W*H): | 1900x650x1060mm |
Weight: | 220KG | Certification: | GMP Standard | After-sales Service Provided: | No overseas service provided |
Product Description
PE,PVC film steam shrink packaging machine/shrinking machine/wrapping machine
Working principle
Exclusive use of steam and constant temperature diffusion characteristics of the uniform to work in order to achieve the common electric infrared heat shrinkage machine incomparable effect. Device uses a steam generator to generate steam, with no additional steam boiler. There are primary and secondary hosts two heaters can be adjusted depending on the size of the power equipment production speed, the conveyor belt with variable speed, transmission speed can be adjusted. Widely used in vat or a small bottle of mineral water, purified water; soft drinks and tea drinks and other food and beverage industry, as well as cosmetics, shampoos and hardware and electronics need to shrink film packaging occasions.
Feature
·Take the lead in using the latest technology : steam heat.
·High efficiency heat shrinkage, different and irregular round bottles, square bottles, flat bottles, bottle-shaped, simple adjustment.
·Optimized circuit design, instrumentation temperature control, the temperature reaches the set temperature to stop heating, saving energy.
·Machine three layers of insulation, reduce heat loss, USES the waterproof design, 304 stainless steel manufacturing.
·Conveniently equipped with a thermometer and a pressure gauge, steam pressure and temperature shrinkage, easy to start operation.

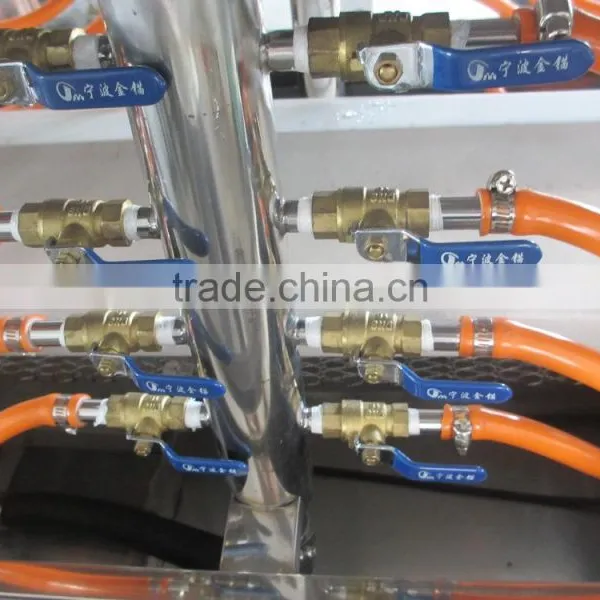

·Steam inlet valve is equipped with a dial, saving time start when operation.

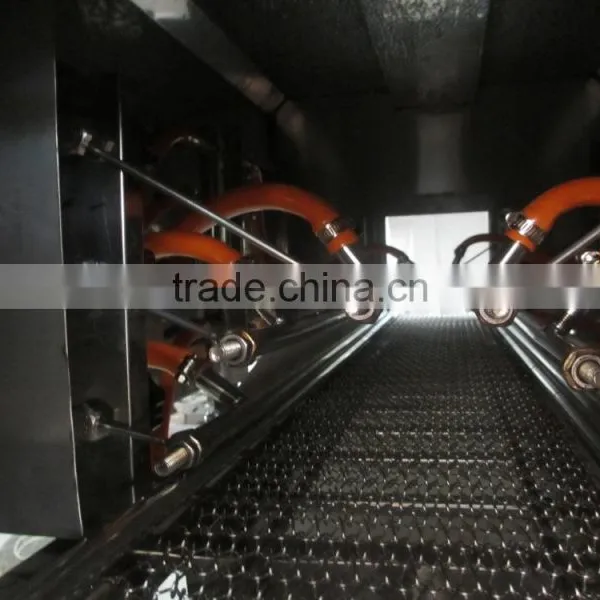

·Each machine on both sides of the nozzle can be adjusted up and down / inside and outside the location and direction of the jet.
·The whole front end is equipped with the import and export shield device, reduce the steam leakage, improve the heat preservation effect.
·High power dc motor, stepless speed regulation, and can work continuously for a long time, and the operation is stable and reliable.
·The entire lower body to install water tray for collecting condensate discharge concentrated, put an end to the wet problem.
·All the electrical components made of high quality, famous brand, so the quality has been effectively guarantee.
·On PE film, PVC film, heat shrinkable labels are perfect shrinkable packaging.

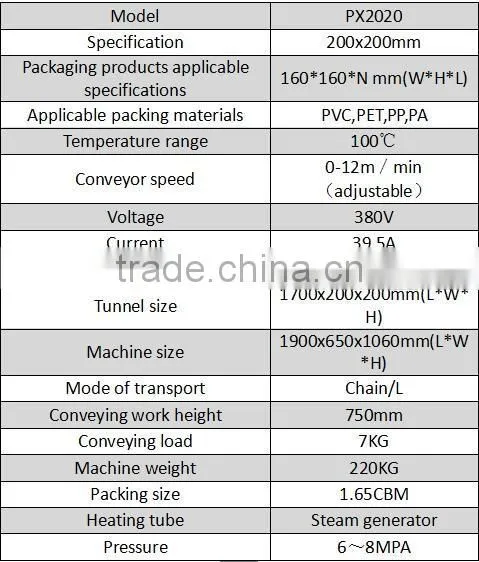

Technical parameters
Notice
·Heat shrinkable machine due to the consumed power is very big, so the input power supply must be greater than the power of shrinking machine nameplate of nominal power, otherwise easy to burn down lines or electric parts.
·When the rules for three-phase voltage 380 v power supply machine, must enter zero at the same time, the standard of three phase four wire system. Otherwise the machine doesn't work, and easy to burn internal electrical components.
·Machine of continuous use, should add lubricating oil regularly to chain and bearing, every week to prevent high temperature increase after drying the chain rust resistance caused by transportation motor overload.
·Packing after work, should turn off the heating switch, keep conveyor motor and fan motor run 10 minutes, then cut off the power supply.
Packing:the seller packs all of the machine and parts in the firm case that suitable for sea shipping.
Delivery date:20-30 working days after receive the deposit.
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
Jinfeng focuses on creating value for customers. We not only provide installation service, but also help customers design and select equipment according to existing sites. After-sales Department specifically organizes clients to carry out debugging. We also offer one-year warranty and lifetime maintenance. The after-sales hotline is opening the whole day and we are willing to provide consulting service for you. We value the good relationship with customers. We serve customers in domestic and international markets, and have won a good reputation. "With credit to survive and develop" is our philosophy.
Q:Are you manufacture or trading company?
A:We are factory, we have our own design team and own workshop.
Q:What kind of payment terms do we accept?
A:40%T/T as advance payment,60% before shipment.we also accept Western Union and Money Gram.
Q:How much is the transportation freight?
A:The freight depends on the quantity, weight and size ,also the destination port.
Q:How about the working life of machine?
A:Our machine can be used for over 5 years.
Q:How can I trust your company and ensure to get the goods if order from you?
A:We are Alibaba legitimate certification company(VIP).
Q:How to ensure that I received the machine undamaged?
A:Our package is standard for shipping .
Q:What's your delivery time?
A:20-30 working days according to your quantity.
Q:Can I have my own customized product?
A:Yes, your customized requirements for logo, design and mark etc.are very welcome.
Q:Do you provide installation & debugging service?
A:Yeah,we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding.
Factory (Welcome to visit)
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Service
1,We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you .
2,Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3,If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4,We offer the video to you teach you how to use ,fix ,maintain this machine.
5,When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
