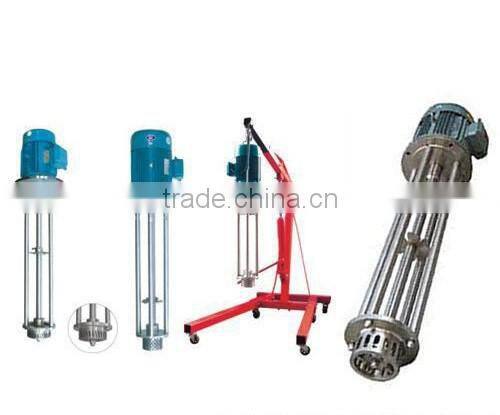

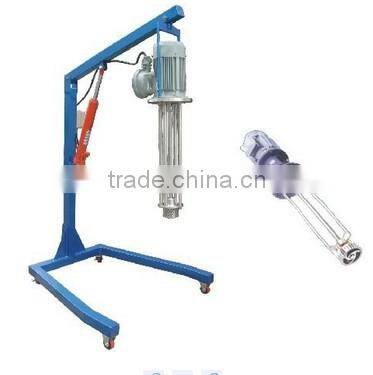

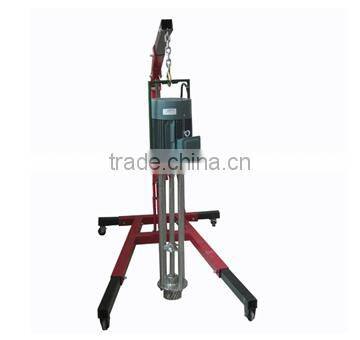

[Product name]Mobile Crane Homogenizer
[Product introduce]
This product is suitable for homogeneous, low viscosity of emulsion dispersion and emulsion manufacture, suitable for the majority of the formula, special the rotor and the stator to generate strong shearing, grinding, impact and convection, the emulsion particles reach the steady state (1-2m)
Installation considerations
² Mechanical length of this machine (L) size of standard length, if need to lengthen or shorten can be matched with.
² The best position of mechanical length choice for emulsified frame slot, at level 60% is the best effective depth.
² Please refer to the selected emulsifier when: capacity, viscosity, treatment time, the reaction temperature, the purpose, the company business department.
² Emulsification machine water bearing with self-lubricating bearing, boot device no liquid below the water bearing, to avoid causing bearing damage.
² The correct parameters to provide the material object as the standard, the data is subject to change, without notice.
Technical parameters
Model |
JF-C1.5H |
JF-C4H |
JF-C7.5H |
JF-C11H |
JF-C22H |
Power(kw) |
1.5 |
4 |
7.5 |
11 |
22 |
Speed(R.P.M.) |
2880 rpm |
2880 rpm |
2880 rpm |
2880 rpm |
2880 rpm |
Width (mm) |
100 |
115 |
130 |
140 |
220 |
Length (mm) |
592 |
895 |
1168 |
1168 |
1498 |
Max volume(L) |
20-200 |
50-300 |
100-1000 |
150-1000 |
500-2000 |
Weight (kg) |
41 |
73 |
168 |
275 |
523 |
picture show
