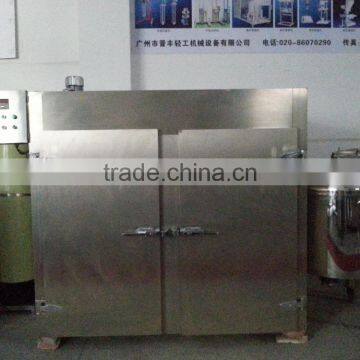

Steam or electric power supply hot air circulation oven machine

Product introduce

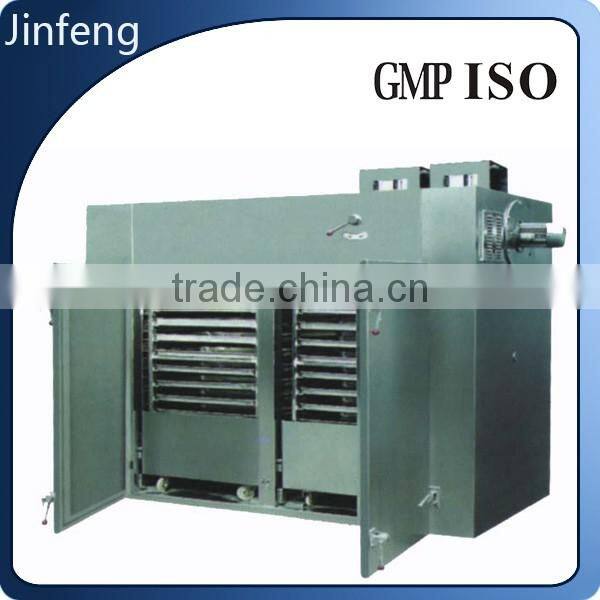

JF series hot air circulating oven is equipped with low noise axial flow fan and automatic temperature control system, the circulatory system fully closed, the heat efficiency of oven drying room from the traditional 3-7% to the current 35-45%, the highest thermal efficiency of up to 50%. The successful design of JF hot air circulation drying oven, so that the hot air circulation oven in China has reached the advanced level at home and abroad. Saving a lot of energy for our country, improve the economic efficiency of enterprises. 1990 by the State Drug Administration issued the industry standard, unified model for RXH

Explain
The heating source, far infrared electric, steam, gas and electric dual-purpose, for the user to choose

The use of steam heating temperature: 50-130 degree, the highest 140 degree

Electricity, far infrared temperature 50-300 degree, can complete automatic control system and computer control system, for the user to choose

Common steam pressure 0.2-0.8mpa (2-8kg/cm2)

Equipped with electric heating calculation according to the 1 15kw type, 5-8kw/h

Special requirements in order that

Non standard oven price negotiable

Using the temperature higher than 140 degree or less than 60 DEG C, to specify when ordering

A baking vehicle factory manufactured, baking pan size uniform, interchangeable

Baking pan size: 460*640*45mm

Machine size:2190*1180*1710mm

Performance characteristics
Most of hot air inside the circle, high thermal efficiency, energy saving. By using the forced ventilation function, is provided with adjustable air distributing plate, even drying of the material, the heat source can be steam, hot water, electricity, far infrared, wide selection. The noise is small, running balance. Automatic temperature control, convenient installation and repair. Applicable to a wide range, variety of materials can be drying, drying equipment are common

Adapt to the material
Applicable to the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and so on material and products of curing, drying and dehydration. Such as raw materials, crude drug, Chinese herbal medicine, extract, powder, granules, powder, pills, water bottles, pigments, dyes, dehydrated vegetables, dried fruit and melons, sausage, plastic resin, electrical components, paint etc.

Packing:the seller packs all of the machine and parts in the firm case that suitable for sea shipping.
Delivery date:20-30 working days after receive the deposit.
