US$ 5,800 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drying Equipment
Place of Origin Guangdong, China
Brand Name Jinfeng
Model Number JF-02
Voltage Customzied
Power(W) Customized
Dimension(L*W*H) Customized
Weight Customzied
Certification GMP Standard
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

laundry washing tablets making machine


Overview
JF-02 series drum dryer is a new product developed by our company, are widely used in sticky, paste materials production processes.Worked in the food, chemical, pharmaceutical and other industries. Good performance.

Working principle
JF-02 series drum dryer working principle is to make liquids or muddy object item in steam or other hot heating surface to form films. drum turn around was in the process of drying is completed. use spatula scrape. revealing the surface again with the raw material contact drying form a thin film.

Structure introduction
JF-02 series dryer drum composed by a rollers, racks, the charging device (top feeding or bottom prepregs), drive, Hopper, charge transfer device and so on.

Feature
①With steam or thermal oil as the heat source. larger heating area. efficiency. uniform heating
②Drying rate fast. wall of wet material membrane on heat and mass transfer process from the inside outward in the same direction. temperature gradient greater. keeps the material membrane surface high evaporation intensity
③The drying time is short. about 7~30s. suitable for heat-sensitive materials
④Operation is simple. easy maintenance.

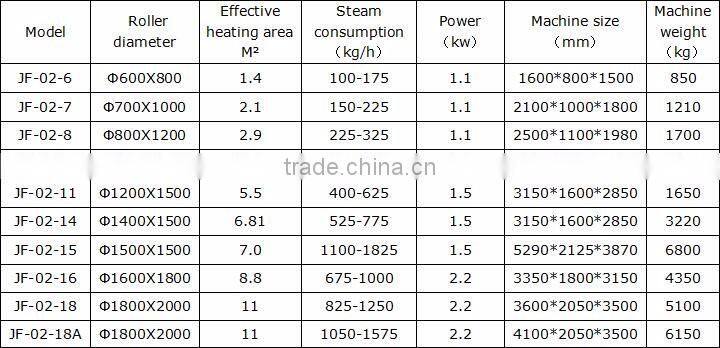

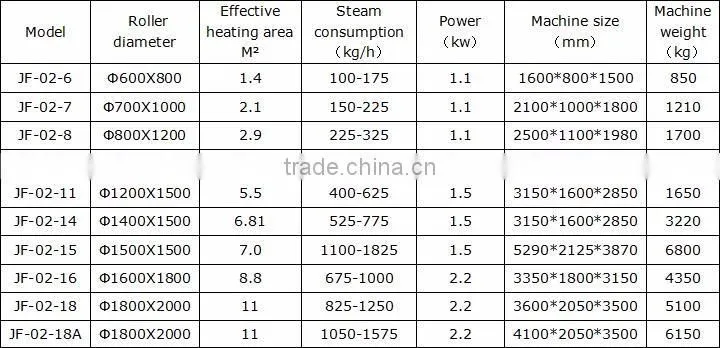

Technical parameters

Note: In case of inconformity of the data in the table due to technical improvement or customization, the real objects shall prevail.
