HEGU Plastic Machinery: SJSZ Series Conical Double Screw Extruder

Qingdao Hegu Wood-Plastic Machinery Co., Ltd.

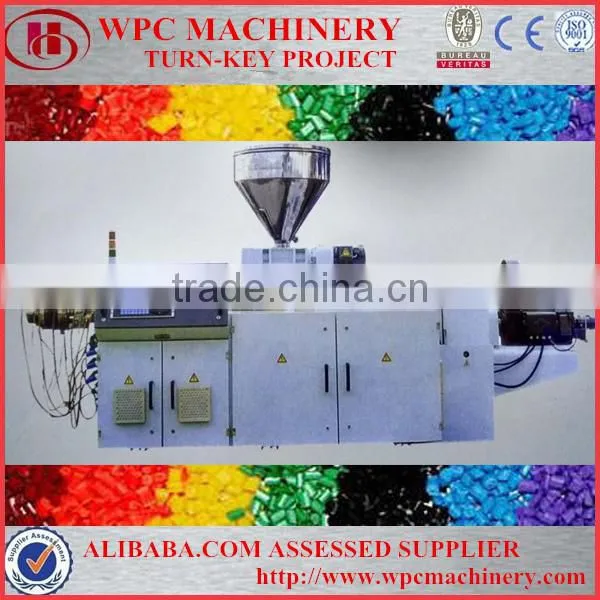

HEGU Plastic Machinery: SJSZ Series Conical Double Screw Extruder thumbnail-1

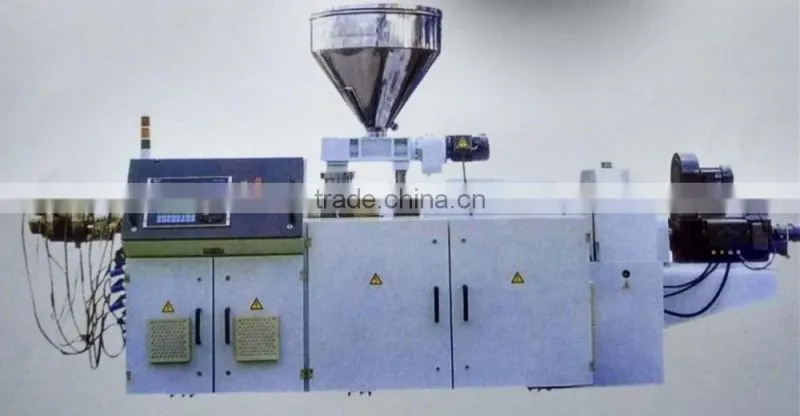

HEGU Plastic Machinery: SJSZ Series Conical Double Screw Extruder photo-1
US$ 15,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Board/sheet/rob/tube/pipe and other special shapes
Plastic Processed:
Other, PVC, wpc, wooden PVC/PP/PE, etc.
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Board/sheet/rob/tube/pipe and other special shapes
Plastic Processed Other, PVC, wpc, wooden PVC/PP/PE, etc.
Screw Design Single-screw
Automatic Grade Automatic
Place of Origin Shandong, China
Brand Name HEGU
Model Number SJSZ-45/90, 51/105, 65/132, 80/156, 92/188
Voltage 380V 50HZ or other area special requests
Power(W) 15~90kw
Dimension(L*W*H) 3~6m*2m*3m
Weight 1.5~3tons
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application on Plastic Machinery: SJSZ Series Conical Double Screw Extruder
Plastic Machinery: SJSZ Series Conical Double Screw Extruder is appropriate for producing such products with thermoplasticity as pipes of PVC, wpc, wooden PE, PP as well as plates, sheets, rods, profiles and plastic pellets. According to different raw materials and product specifications, screws are adopted with different ratios of length diameter and compression and barrels are of different structures .Proper barrels, screws and driving mechanism are adopted so as to realize high-quality final products production.

Model
SJSZ-45
SJSZ-51
SJSZ-65
SJSZ-80
SJSZ-92
Screw diameter (mm)
45/90
51/105
65/132
80/156
92/188
L/D
22~28
22~28
22~28
22~28
22~28
Screw RPM
49
45
37
37
33
Motor power (kw)
15
22
37
55
90
Max output (kg/h)
80
160
250
400
550
Heating power (kw)
11
18
24
36
85
Screw diversion
Insonaruous outward

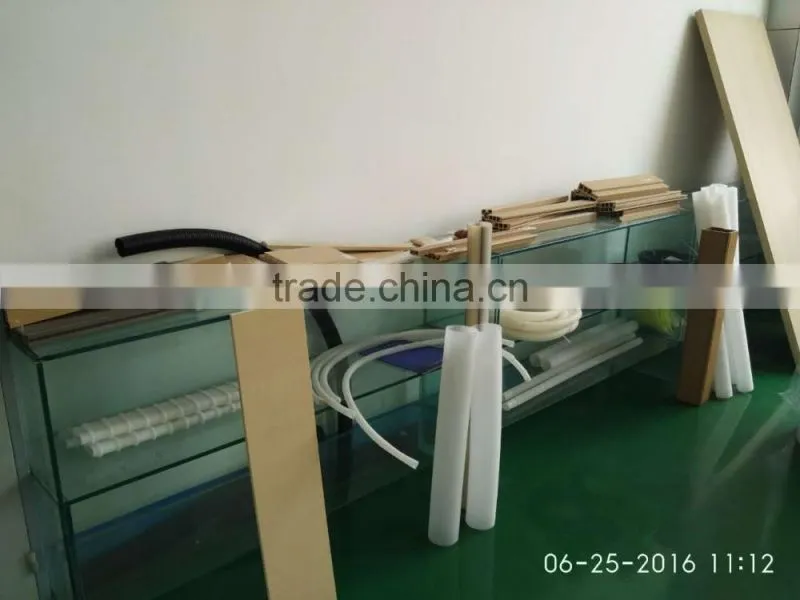

Products Show

The excellent features on Plastic Machinery: SJSZ Series Conical Double Screw Extruder

SJSZ series of conical double-screw extruder is specializing in extruding pipes with various kinds of PVC powder. When equipped with different moulds and auxiliary machines, such products as any PVC pipes, profiles, plates, sheets, rods and pellets can be produced.
● The screw adopts circulating oil cooling device, so that the friction temperature would be quite allowable.
● The screw barrel adopts special designed wind cooling system, which makes repair quite easy.
● According to different material mixing requirements of clients, screws of reasonable structure can be equipped with to make sure desirable plasticization and quality of flowing substance.
● The centers of driving motor, reduction box and screw are assembled in a line, which ensures easy maintenance.
● The specially designed distributing box has extra-sized thrust bearings with long rotation lifespan. They are originally imported and can bear more powerful extruding pressure.
● Equipped with forced feeding device, the extruder ensures consistent speed of material discharging and extruding.

Our Service

Engineers team

Engineers available to service machinery

overseas, free within one year quality guarantee, and $100/day after one year.

Software updating

Life long technical support. Contnual improving our technology on the machine part, process and software level for much smarter.

24hour online maintain

Anytime on line trouble shooting by telephone and email for saving your time and cost.

Our Company

Factory

Workshop


Warehouse

Team

Packing & Delivery

Packing Details  : For conical double screw extruder, it is standard sea-worthy packaging, pallets with film, plywood box for electrical parts and quick-wear parts.

Delivery Details : 30 days after received the 30% down payment, also according to order planning.

Our Certifications
FAQ
Payment terms
30% down payment after signing the contract within 5 workdays, the rest 70% payment after test run in our factory and before shipment.
Accepting& inspecting
in seller's factory
Bring into the agreed time, it is in seller's factory to accept and inspect the PVC Semi Skinning Foam Board Extrusion Production Line. The test run will make the pipes under two sides discussion, and promise the machine works in succession for two hours. Other special request, negotiate by two sides. The charge of test materials should be paid by buyer side.
Installation&test-run
in buyer's factory
1) User should prepare the SJ series single screw extruder operators and tools for machine installing, and make the energy available such as water, electricity, materials, work space, labors and so on.
2) Seller send one engineer for direction and supervising the installing, test run and training. The test run will be finished in 15 days if there is other requests please inform in advance.
3) The buyer should pay $100 per day as subsidy for the engineer, and in addition the round airplane tickets, food, hotel fee and insurance of the engineer during the installation and test-run period.
Documents supply
Mechanical and electrical operation manual(1),
Electrical connection drawing(1),
And Operation technique manual(1).
In Chinese-English bilingual version.
Customer Photo

Customers overseas

We have a lots of aboard customers with high speak of our

Plastic Extrusion Production Line and products, they are mainly in Russia, Australia, Singapore, USA, Malaysia, Indonesia, Iran, Italy, Mexica, and other countries of North and South America, East Asian, West Europe, Africa, and so on.
