wood plastic decking machine
wpc profile production line
PE/PP/PVC WPC profile extrusion line
youtube video running link:
1.pvc door turnkey project: /watch?v=vnEIBio3xw0
2.PE WPC wall cladding extrusion line: https://youtu.be/hgVwtqVeKH8
3.pvc profile extrusion making line :https://youtu.be/JXqYTc7V6zw
4.wood milling machine wood crusher machine : /watch?v=Fw6YEFBbLEs
5.WPC profile extrusion line (for floor) : /watch?v=Fw6YEFBbLEs
6.wpc PE profile extrusion machine (for wall) : /watch?v=Fw6YEFBbLEs
7.plastic crushing and washing machine: https://youtu.be/7L5-Ihh_-Ls
A brief introduction
This machine line is adopted specially designed screw, barrel, mould and technique wpc craft and formula initiated by our company. The extruder can match with the auxiliary machines and moulds perfectly. The whole production line is automatic control from the loading to the final discharging. The machines can also be manually adjusted seperately.
Advangage:
good plastication, low energy-consumption, high output, excellent performance, long endurance, etc
Main technical parameter:
| Item/ model | SJMS65/132 | SJMS80/156 | SJMS92/188 |
| Screw diameter(mm) | 65 | 80 | 92 |
| L/D ration | 22:1/25:1 | 22:1/25:1 | 22:1/25:1 |
| output(kg/h) | 200-240 | 250-350 | 400-500 |
| main motor power(kw) | 37 | 55 | 110 |
| heating power(kw) | 4zones, 20kw | 5zones,38 kw | 6zones, 54kw |

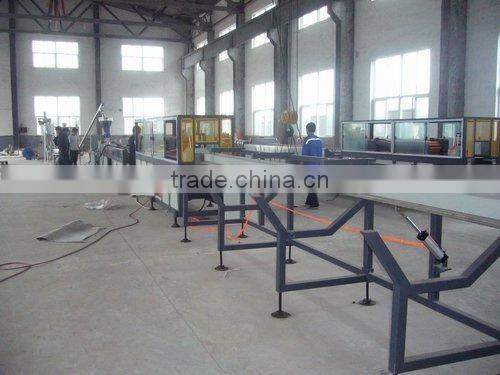

The production line consists of:

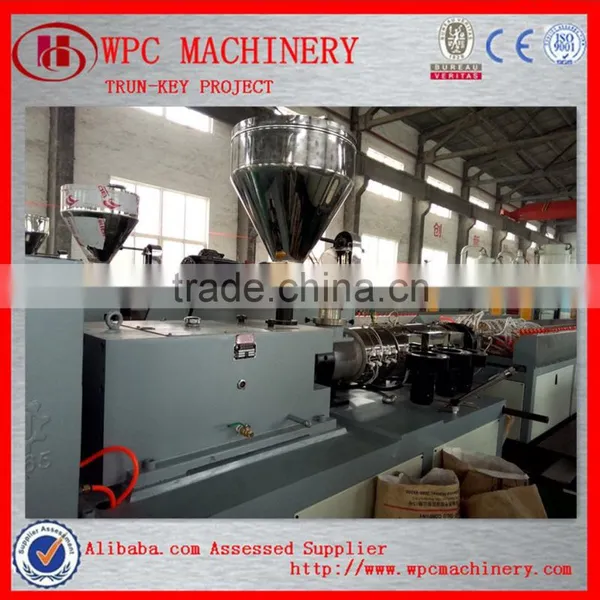

1.automatic feeding loader

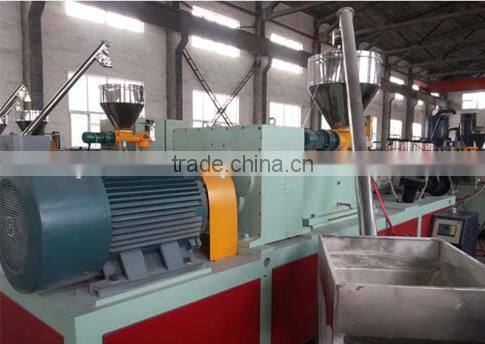

nical twin screw extruder

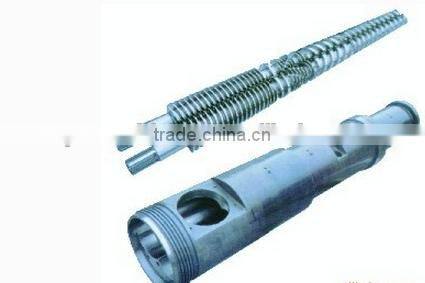

Screw and barrel material:38CrMoAI under nitrogen treatment
Screw length and diameter ratio :
(pvc material:22:1 pp/pe material: 25:1)
3.die head and forming mould
Mould material: 3Cr17 stainless steel
corrosion resisting ,wear resisting and long-life service

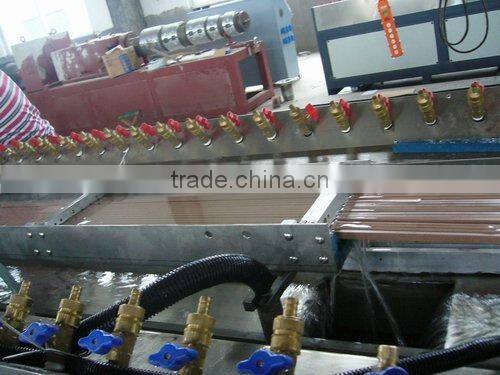

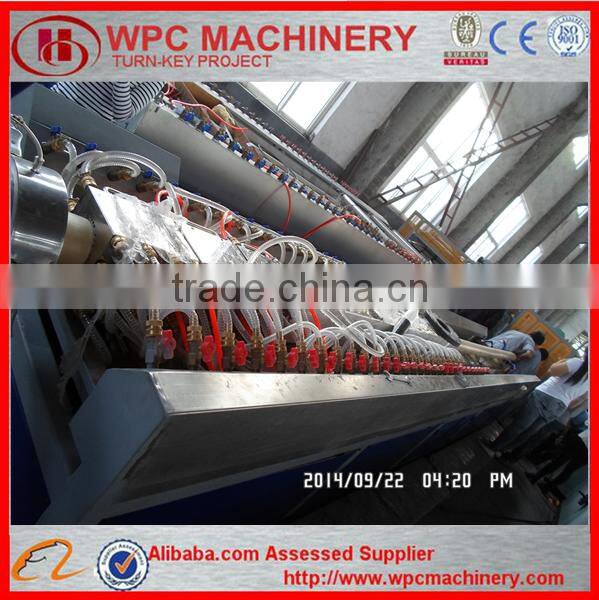

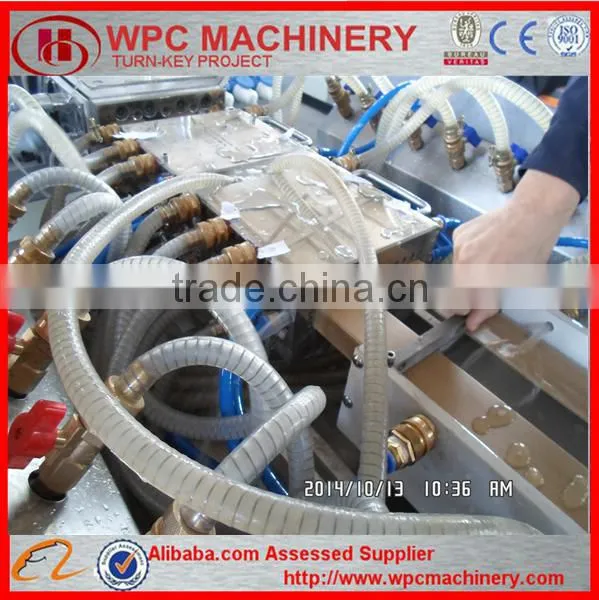

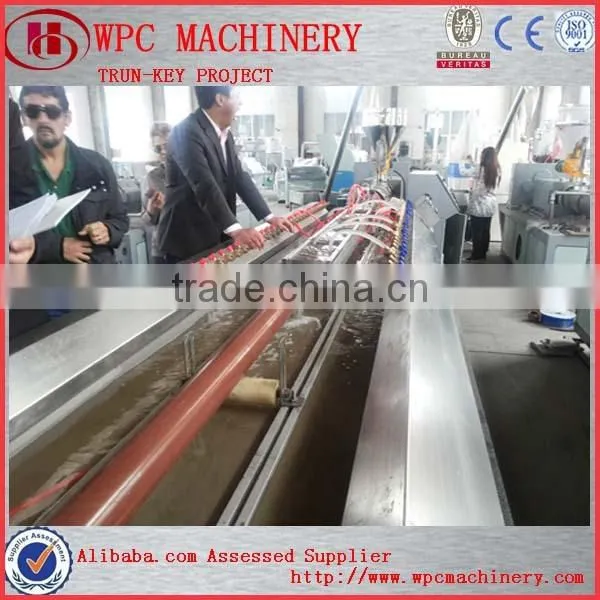

4.vacuum calibration platform
adopt vacuum system to make sure the product more stable and continous
Vacuum calibration platform equipped with some water channel and vacuum channel pipes

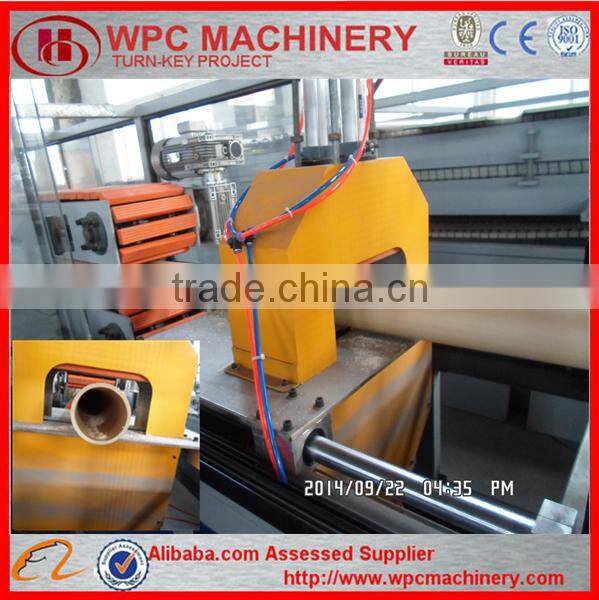

5.caterpilar haul-off and cutter
The space can be adjusted up and down so that it can be adjusted the traction.
Speed regulating way: frequency speed regulator
6.tilt stacker
Plates transported from haul off machine, cutting by cutting machine. This machine can automatically follow online, automatic metering, automatic cutting.
8.elecrical system
HUALI motor
Omron temperature controller
ABB frequency convertor
SIEMENS contactor

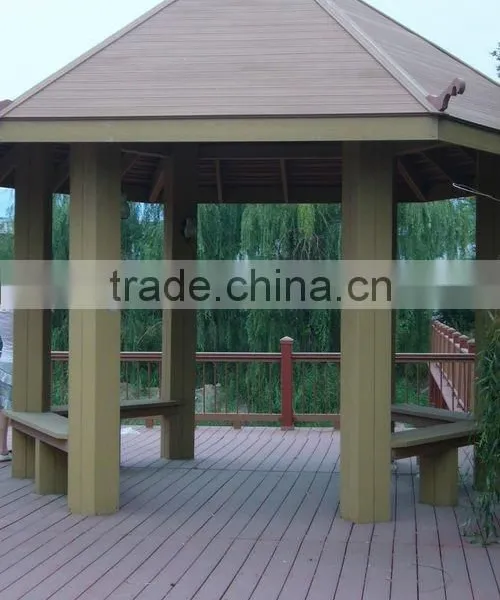

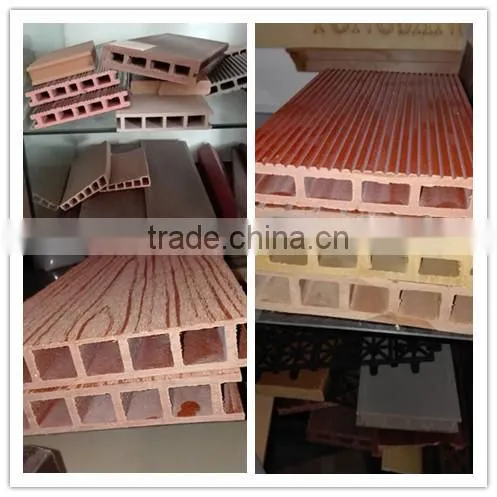

Application
various product all are high quality .
