WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc.

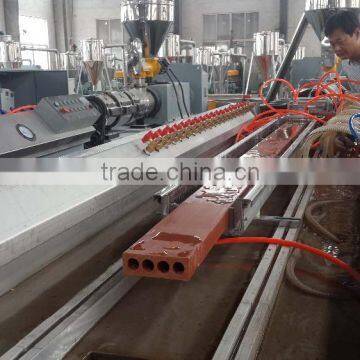

WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-1

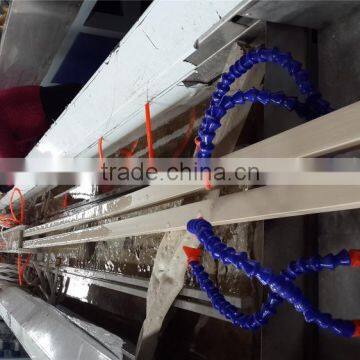

WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-2

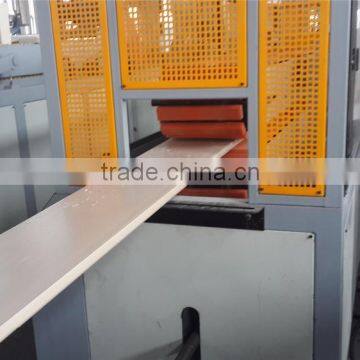

WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-3

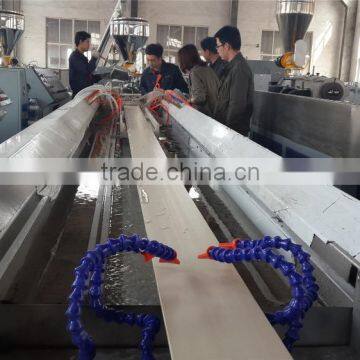

WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-4
WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-5
WPC Wood Plastic Extrusion Machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall Skirt,panel Etc. photo-6
US$ 40,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Plates
Plastic Processed:
WPC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Plates
Plastic Processed WPC
Screw Design Double-screw
Automatic Grade Automatic
Place of Origin Shandong, China
Brand Name HEGU
Model Number SJMS
Voltage 380V 50HZ
Power(W) 37kw
Dimension(L*W*H) 22x3x3
Weight 7000kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas
Product Description

WPC wood plastic extrusion machine--floor,decoration,decking,railing,columns,chair,fence,handrail,wall skirt,panel etc.

componant of the production line:

Twin screw extruder
SJSZ-65/132
equipped with automatic spring feeding machine

Electrical control system

One set
1) ABB inverter
2) Schneider contactor
3) Omron temperature controller
Caterpillar tractor
SLQ-240
Vacuum sizing platform
SZD-6000
Cutter machine
SQG-240
Stacker
SFZ-6000
High speed cooling mixer
SHRL300/600
Plastic crusher
SWP-360

SJSZ-65-132 Twin Screw Extruder

Screw diameter
65-132mm
Screw and barrel material
38CrMoAIA under nitrogen treatment
The depth of nitrogen layer of the screw and barrel
0.4-0.7mm
Screw Qty
2/pcs
Screw length and diameter ratio
22:1
Screw rotating direction
Converse-direction, outward rotation
Barrel heating
Ceramic heating circle
Heating power
4-section* 20kw
Barrel cooling
air-blower, 3- sections 180 w×3
Air exhaust mode
vacuum air exhaust
Vacuum pump
1.5kw
Feeding type
Automatic force conveying
Frequency control motor
Power:7kw
Hopper material
stainless steel
Spiral automatic feeding machine
300kg/h
Max. capacity
200-240kg/h
Reducer and distribution box:
Basic structure
horizontal installing
Cooling mode
external cycle cooling system
Imported Thrust Bearings
High Torque Output.
Gear material
20CrMnTi,Carburized,hard tooth surface,grinding treatment
The whole gear box is of long service life, low noise, and low heating specific reducing device.
Detailed Images

Vacuum Sizing Platform

Haul-off

SQG-1000 Cutting Machine

SFZ-6000 Stacker

SHRL-300/600 High Speed Cooling Mixer

SWP 360 Crusher

Packing & Delivery

pallet ,the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in english .wooden crate : under fumigation treatment .together with one set of packing list in english
partial shipment allowed container shipment allowed before delivery ,we will send the dimension & weight of machinery to customer to help the them choose suitable container (attention :no OT container in Qingdao port )

Our Company

 Qingdao Hegu Wood-plastic Machinery Co.,LTD. is a joint-stock private enterprise, which is devoting itself to the research, development and production of various woodplastic machine and products
We provide series of WPC extrusion line for customers. Our main products include: wood milling machine, WPC thin plate extrusion line, WPC thick plate plate extrusion line, WPC profiles extrusion line, WPC decking extrusion line, WPC granulating machine, parrallel and conical twin-screw granulation machine, PVC/WPC foamed thin plate extrusion line, PVC/WPC skinning foamed plate extrusion line, PVC/PE/PP wood-plastic profile extrusion line and other auxiliary equipments.
Our machines are of good quality and various kinds. What you want, we can!

Our Service

1. Can supply project analysis report.
2. Can suggest machine model and parameters.
3. Can design factory lay-out and power facilities accounting.
4. Can provide the product formula on different kinds of products.
5. Can supply the relative products treatment technology.
6. Can provide the staff operation training.
7. Can send engineers to service overseas.
8. Can supply the various solutions to the actual questions in production.
9. Can provide the installation and commission in buyer’ factory.
10. Can supply the hardware and software updating technology after-sales.
11. Can finish the turn-key project
