Waste Plastic PVC Pulverizer, Plastic Recycling Pulverizer Machine

Waste Plastic PVC Pulverizer, Plastic Recycling Pulverizer Machine photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Plastic Raw Mixing
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Plastic Raw Mixing
Automatic Grade Automatic
Production Capacity 500liter
Place of Origin Shandong, China
Brand Name HEGU
Model Number SRL-Z500/1000
Voltage 380v or as local
Power(W) 56/76/15 kw
Dimension(L*W*H) 5*3*4 m
Weight 5000-6000kgs
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Waste Plastic PVC Pulverizer, Plastic Recycling Pulverizer machine

Developed on the basis of advanced technique, the SRL-Z series mixer is mainly used for drying, dewatering and mixing for the wood plastic products. The spindle sealing equipment of good sealing and non-leakage has been awarded the national patent. The heating mixer has the heating function of self-friction and electricity.The pot cover adopts double-sealing layer.
The cooling mixer adopts arched pot cover and specically-designed blade, which passes the test of static balance and dynamic balance.Combined with the heating mixing technique and cooling mixing technique, the SRL-Z mixer is the ideal processing equipment in WPC production.The material after heating mixing would turn into cooling mixer automatically, then the air would be exhausted and the material wouldn’t be blocking.

Main Technical Parameter for Waste Plastic PVC Pulverizer, Plastic Recycling Pulverizer machine
Total Volum
500/1000 litres
Valid volum
375/650 litres
Stir Speed
heating mixing blade 3 pieces; blade material: stainless steel
Rotary speed of heating mixing blade
heating mixing: 500/1000 rpm; cooling mixing: 96 rpm
Heating mode
electricity / Self-friction; automatic friction or electric heating
Cooling Mode
Water cooling
Mixing time
6-10 mins.
Cooling Time
10-15 mins.
Motor
Variable level multispeed three-phase asychronous motor
Motor parameters
56/76/15 kw
Water Consumption
6.9 t/h
Production Run
700-900 kg/h
Discharging Mode
Pneumatic
Overall dimension
4725*3000*4050 mm
Net Weight
5800 kgs
Detailed Images

Raw PVC + Wood Powder +Additives

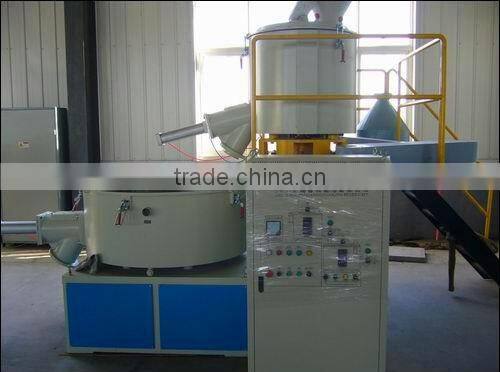

Mixing Machine.

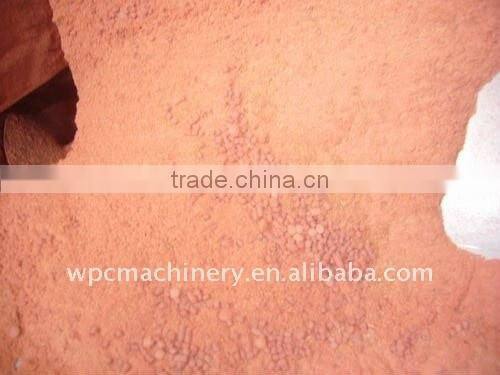

Mixed Wood & PVC powder

Our machine running videos on YOUTUBE

WPC profile extrusion line/decking/flooring making machine                              https://youtu.be/bGDxpMdImzk
WPC door board extrusion line                                                                                          https://youtu.be/OIWR5qPoZfA
WPC door profile extrusion line/making machine                                                      https://youtu.be/LZsoGYTYVkM
PE WPC shaped board making machine                                                                        https://youtu.be/kt2MiJlp0XU
PVC WPC foam board making machine                                                                         https://youtu.be/bIPVjja2fKo
HIPS, GPPS board extrusion production line                                                               https://youtu.be/QZOByd9t7ac
PVC WPC granulating machine                                                                                         https://youtu.be/vozxqkUFxSg
Wood cutting machine-for WPC products making,                                                   https://youtu.be/MnorN4eNRo4
WPC milling machine, make PVC powder for recycled usage                               https://youtu.be/DAqen3B1ZGk
Waste plastic cleaning line, waste plastic recycled                                                     https://youtu.be/_ZyD3XOd97U

Packing & Delivery
Packaging
Size
4725*3000*4050 mm
Weight
6 T



Packaging Details
Waste Plastic PVC Pulverizer, Plastic Recycling Pulverizer machine
1 Pallet: the material of pallet is stainless steel pipe
2 the surface of each part of machinery covered film together with one set of packing list in English
3 wooden crate, under fumigation treatment, together with one set of packing list in English partial shipment allowed container shipment allowed before delivery.
4 we will send the dimension & weight of machinery to customer to help them choose suitable container.
5 customized
