wood embossing press machine/ wpc product embossing press machine
- 1 Set / Sets per Month
- FOB qingdao port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | WPC |
Screw Design: | Double-screw | Automatic Grade: | automatic | Place of Origin: | Shandong, China |
Brand Name: | HG | Model Number: | MSLMT1300 | Voltage: | according to your need |
Power(W): | 20KW | Dimension(L*W*H): | 2x2x2 | Weight: | 1000kg |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
wood embossing press machine qingdao tongsan company

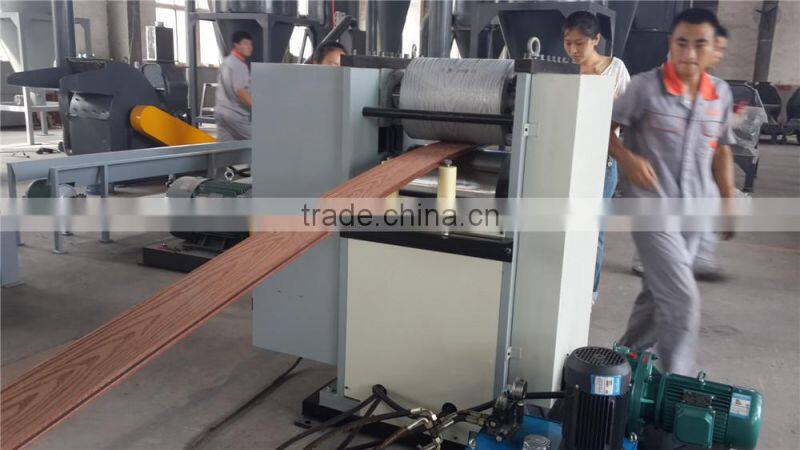

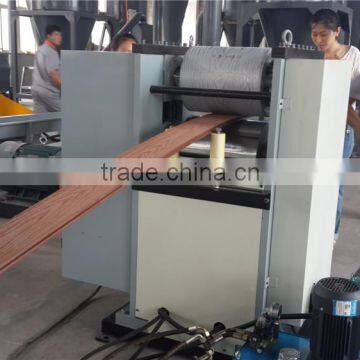

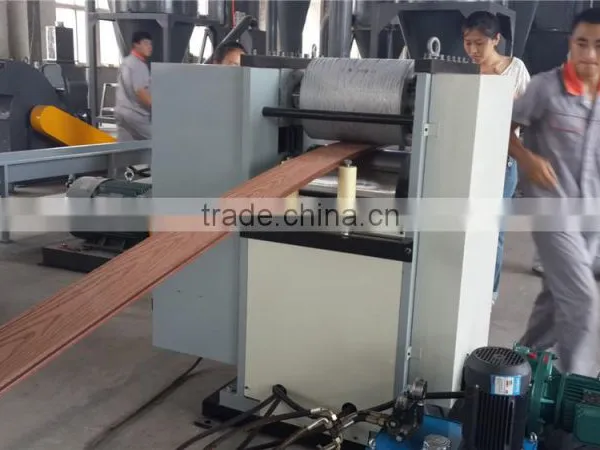

wood embossing press machine/ wpc product embossing press machine
Machine running video showroom:
1. The embosser can be used for online embossing during WPC making process.
2. It adopts oil-heating and electrical heating(according to different products)
3. handwheel-clamping
4. digital tempreture control and frequency speed regulation.
5. It has features of small volume, light weight, time and energy conservation.
model | embossing width | embossing thickness | roller heating | embossing rollers |
400 | 0-400mm | 0-240mm | electricity or oil heater | 2 sets |
600 | 0-600mm | 0-240mm | electricity or oil heater | 2 sets |
1000 | 0-1000mm | 0-240mm | electricity or oil heater | 2 sets |
1300 | 0-1300mm | 0-240mm | electricity or oil heater | 2 sets |
Embossing working process:
1, The embossing roller should be heated to a required temperature before working,
2. it should be keep around the required temperature in working,
3. roller up and down control system
4. temperature control system for the embossing roller, we use OMRON brand.
5, The lower embossing roller can be adjusted up and down to adjust the space of two rollers
according to the thickness of the WPC product.
pallet ,the material of pallet is stainless steel pipe the surface of each part of machinery covered film
together with one set of packing list in english .
wooden crate : under fumigation treatment .together with one set of packing list in english
partial shipment allowed container shipment allowed before delivery ,
we will send the dimension & weight of machinery to customer to help the them choose suitable container
(attention :no OT container in Qingdao port )
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build
the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for longterm cooperation, we always provide good quality, good price and good service to
customer. we are the professional and trustable supplier for turnkey projects. let us do win win business together.
