Frozen French Fries (Fresh and Delicious)
- 50 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | DAYI |
Model Number: | QXDL | Type: | Washer | Voltage: | 110V/220V/380V |
Power(W): | 4kw | Weight: | 500kg | Dimension(L*W*H): | 900*460*740mm |
Certification: | ISO CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

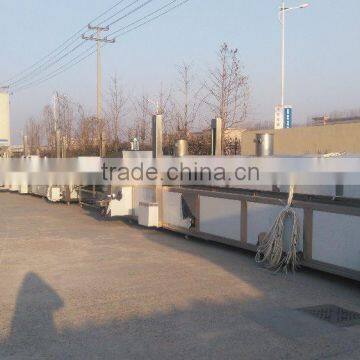

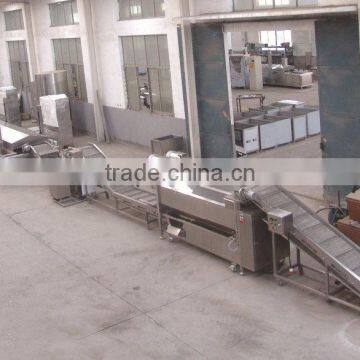

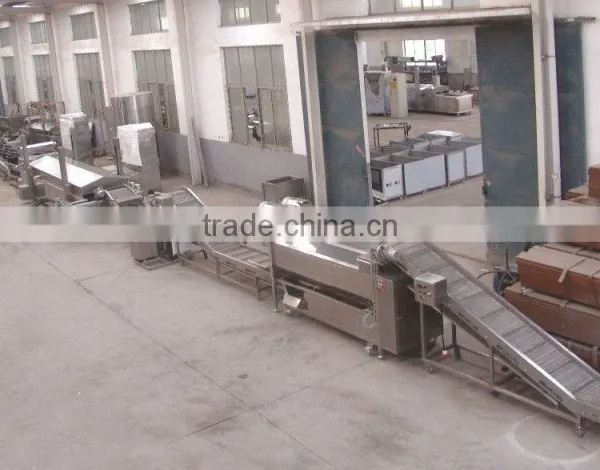

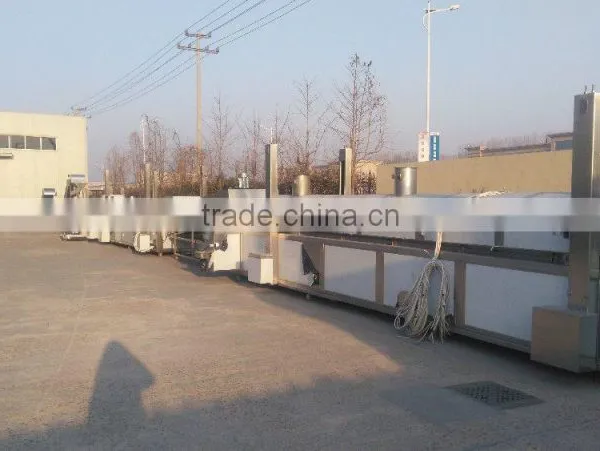

Automatic Frozen French fries Production Line
500kg/h
1). Process
Washing- washing peeling--picking line--cutter-vibrating-washing-blanching-vibrating dewater-drying line-frying-vibrating deoil-cooling-seasoning line-packing line
2)Output capacity
It is 4:1 for fresh potato and finished potato chips. 4:1
3)fresh potato chips requirement
For fresh potato
Diameter is about 40-90 mm, regular shape;
Inside is white, small bud ;
Drying material content is about 22-25%.
deoxidize sugar content ≤0.2%:before using the potatoes, it is needed to put storage potatoes in another room whose temperature is about 12-18 °C and last for 1 week
DEVICE NAME | INTRODUCTION |
>Model:TSJ-5000*600 >Dimension:5000*1200*3000 >Power:1.5kw/380v/50hz >Consist of: water tank+hoist device >Material: SUS304 >Thickness: 3mm | |
2. Brush washing machine | >Model: QXJ-2400 >Size: 3500*950*1900 mm >Power: 4.55KW/380V/50HZ >Spiral vane speed is adjustable Rolls speed is adjustable >Filter to separate peel, sand from water >Spraying device to wash during peeling >Material: SUS304 >Shell: 1.5mm Board of the two sides: 10mm |
3. Washing and Peeling machine | >Model:QP J-2400 >Size: 3500*950*1670 mm >Power: 4.55KW/380V/50HZ >Spiral vane speed is adjustable Rolls speed is adjustable >Filter to separate peel, sand from water >Spraying device to wash during peeling >Material: SUS304 >Shell: 1.5mm Board of the two sides: 10mm |
4.Picking &inspecting line | It has two function: one is picking line to pick ou 3 .All material is Stainless steel. >Model: TJX-4000*600 >Size:4000*1400*1500 >Power: 1.1KW/380V/50HZ >Two parts: returning device+picking line >Material: SUS304 except the belt Material for belt: PVC P25-24 >Thickness: 2.5 mm |
5. Washing &Conveyor2 | It has three functions: To wash off the sands and other dirt on potatoes in order to protect the cutter. Convey it to cutter; Distribute the fresh potato into two cutters Mesh belt is board with holes. >Model:TSJ-3800*600 >Dimension:3800*1200*3000 >Power:1.1kw/380v/50hz >Consist of: water tank+hoist device >Material: SUS304 >Thickness: 3 mm |
6.Frecnh fries cutter | Easy to wash and easy to opSave labor and cost. >Model:QTJ-1000 >Size: 1060*690*1040mm >Power: 1.5kw 380V/50HZ/set >Quantity: 2sets >The normal size:8mm*8mm and 10*10mm and 6*6mm |
7. Bubble Washing machine | >Model: QXJ-3500*800 >Size: 3500*1800*2000mm >Power: 8.03KW/380V/50HZ >Function: hoisting device+redisue scraping device >Material: SUS304 >Mesh belt frame thickness: 3 mm Body board thickness: 3mm |
8.Blanching machine 1 | the mesh belt is mesh with holes >Model: PTJ1-6000*800 >Size: 6000*2000*2000mm >Heating methord: Steam heating >Power(gas): 10.78KW/380V/50HZ >Material: SUS304 >Mesh belt frame thickness: 3 mm Body board thickness: 3mm |
9. Blanching machine 2 | |
10. Vibrating dewatering and separating machine | The small residue will be removed by this machine >Model: ZDS-2500*800 >Size:2500*1400*800 >Power: 0.37KW/380V/50HZ >Material: SUS304 >Thickness: 2.5 mm |
11. 4m/3-long hot air drying line | >Model:FGX-4000*800/3 >Dimensions: 5000*1400*3000 >Power: 90KW/ 380V/ 60HZ >Belt width:800mm >Total length:12meter >Material: SUS304 >mesh belt frame body: 3 mm |
12. Continuous frying machine | >Model:XDL-4500×800. >Dimesion:6000*2200*2200 >Capacity per hour: 200kg/h >Principle: Continuous working >Heating methord: thermal fluid heating system >Material: SUS304 >mesh belt frame: 4mm Body: 4mm Control box: 1.5mm |
13. Vibrating machine | 1.It is used to remove some oil by vibrating 2. It is equipped with oil collection board and oil collection box >Model: ZDS-2000*800 >Size:2000*1400*800 >Power: 0.37KW/380V/50HZ >Material: SUS304 >Board thickness: 2.5 mm |
14. 5m-3 layer cooling line | >Model:FLX-5000*800/3 >Dimensions: 5000*1400*3000 >Power: 3.75KW/ 380V/ 50HZ >Belt width:800mm >Total length:15meter >Material: SUS304 >frame thickness: 2.5 mm |
15. vibrating machine | It is of 5mm holes; >Model: ZDS-2500*1100 >Size:2500*1400*1150 >Length: 2.5m >Belt width: 1100mm >Power: 0.37KW/380V/60HZ >Material: SUS304 >Thickness: 2.5 mm |
16. Packing machine | The parts included: XD-620 Automatic packaging machine 14-heads combination weigher. 3. bucket elevator 4. Supporting platform 5. Finished products conveyor Packing machine Packing speed: 10-60 bags/ min Bag size: (W)100-300mm (L)100-380mm Max film width: 220-620mm Weigher: Name: 14-hopper computer combination scale scale; SUS304 structure; 10.4 in Hopper capacity:2500ml Language:Chinese, English, Italy, Spanish, Franch, and 10 different languages Display Screen:Color Display input keypad |
Production Process:
No. | Product name | introduction |
1 | Washing peeling machine | Washing and peeling the potatoes; It is centrifugal washing peeling machine for small capacity; brush washing peeling for larger capacity |
2 | French fries cutter | Cut the potatoes into different sizes of French fries |
3 | Blanching machine | Wash and remove the potato powder and keep good color and flavor for the potato chips or French fries |
4 | Centrifugal dewater machine | Remove water by the force of the centrifugal force |
5 | Frying machine | Frying the French fries; oil or oil-water structure; electric, gas, diesel ; automatic feeding and discharging |
6 | Centrifugal deoil machine | Remove the oil by the force of centrifugal |
7 | Freezer | Instant freezer |
8 | Packing machine | Pack the French fries into different bags |
The electric device are Siemens and other famous brand as following.
Name | Brand | Note |
Frequency converter | OMRON | |
Temperature controller | OMRON | |
Converter contactor | SCHNEIDER | |
Disconnector | SIEMENS | |
Switching push button | SIEMENS |
