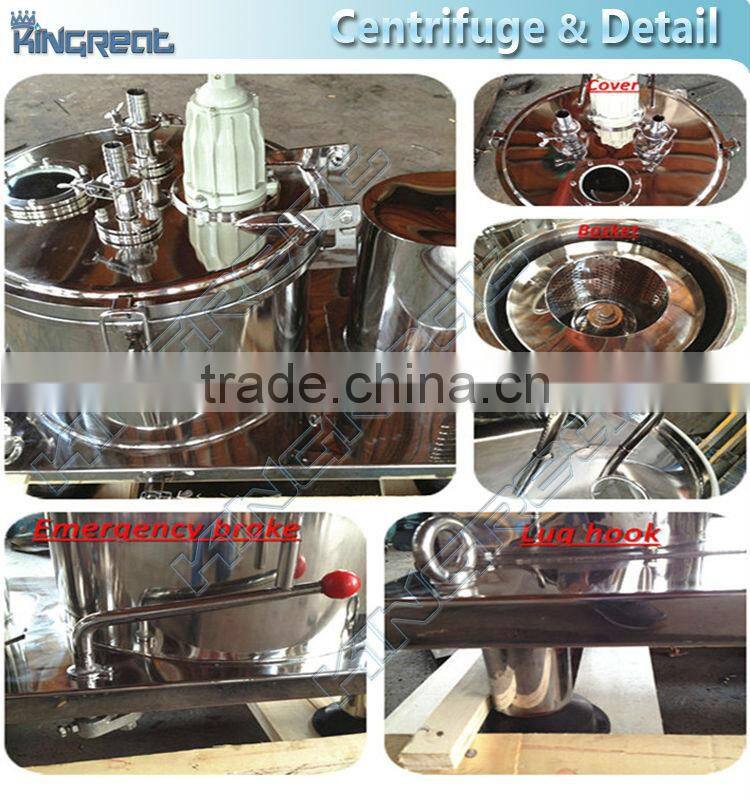

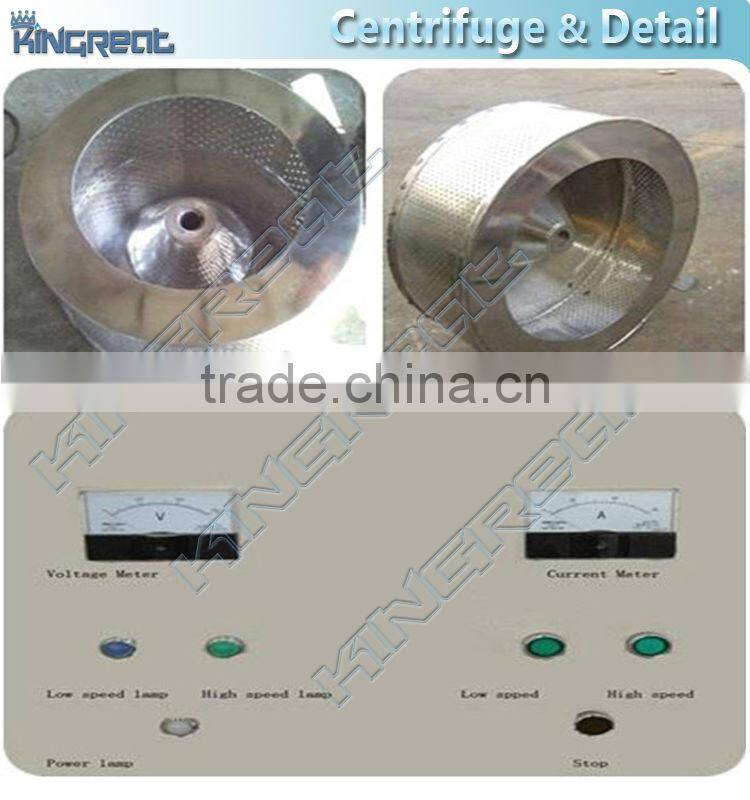

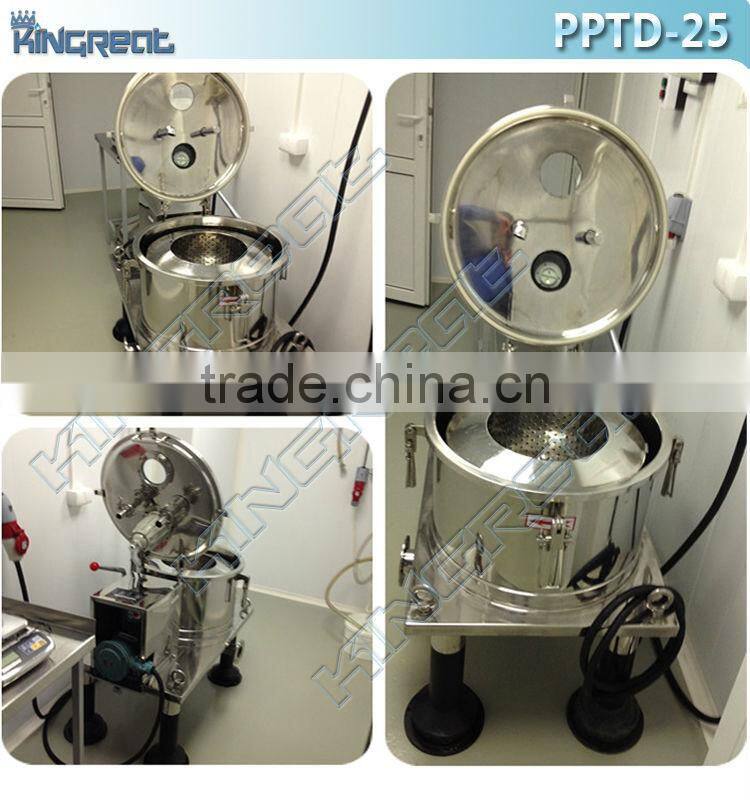

High Rotate Speed Plate Type Lifting Bag Centrifuge
1) No-base installation, without traditional tripod type hanging structure and simplifies the installation process
2) Reasonable design and new and simple structure
3) Basic platform is the work operation platform
4) Reduced labor and high efficiency
5) Simple operations and easy cleaning
6) Outside and inside surface of rotary drum is polished
7) All of fasteners are made of stainless steel
8) Transmission section is sealed with stainless steel
9) Airtight packing is made of silicone rubber
10) Equipped with CIP system, the whole machine meets GMP hygienic standards
11) Imported high-viscosity liquid damping agent shock isolator ensures that no vibrations will affect the base of the unit, the ground and neighboring equipment
12) Outer case has a fully opening cover
13) Especially suitable for solid-liquid separation of poisonous, harmful mediums
14) With open-cover, overheating, overloading and over-current protection
15) Full sealing, explosion-proof and very clean
16) Adopts explosion motor frequency driving and static-proof V-belt
17) When equipped with nitrogen protection, the machine is suitable for solid-liquid separation of combustibles or explosive
| Model | Length (mm) | Width (mm) | Height (mm) | Power (kw) | Weight (kg) | Capacity (kg/hr) |
| PPTD-10 | 890 | 600 | 500 | 1.1 | 180 | 10 |
| PPTD-25 | 980 | 650 | 870 | 1.5 | 250 | 25 |
| PPTD-50 | 1300 | 880 | 900 | 3 | 800 | 50 |
| PPTD-135 | 1800 | 1200 | 1140 | 5.5 | 1300 | 135 |
| PPTD-135-NA | 1800 | 1200 | 1140 | 7.5 | 1300 | 135 |
| PPTD-200 | 2050 | 1500 | 1220 | 7.5 | 2000 | 200 |
| PPTD-200-NA | 2050 | 1500 | 1220 | 11 | 2000 | 200 |
| PPTD-300 | 2350 | 1650 | 1370 | 11 | 2500 | 300 |
