Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Eagle |
Model Number: | DP-250 | Application: | Other, Pet Food | Voltage: | 380V/50HZ |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

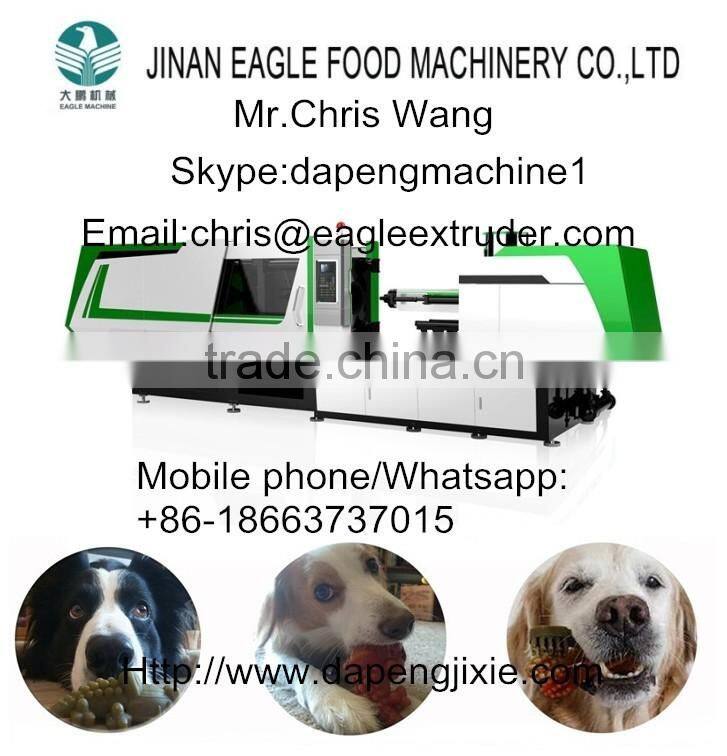

DP 250 Pet Dental Care Moulding Machine/Dog Treats Injection Moulding Machine
Product Specification
Injection Dog Snack Moulding Machine is special machinery for producing pet snacks.
With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games.
Also, we can provide different recipes to meet various market demands.
Sample Picture
Pet Treats Molding Machinery for producing pet snacks and pet chewing toys.
Model | DP-250 |
Screw diameter | 60mm |
Screw L/D Ratio | 18.8 |
Short volume | 707mm |
Short Weight | 636g/22.4oz |
Injection pressure | 142Mpa |
Injection rate | 239g/s |
Plasticizing capacity | 49g/s |
Screw speed | 180rpm |
b) Dust, oil proof and colorful touch switch control panel.
c) El display of pressure, speed, time and distance for each motion.
d) Shut-down device with 100 presets mold data memory.
e) Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
f) PID barrel temperature control: temperature abnormal & electrical wire breaking alarm.
g) SSR-solid state temperature controller.
h) Screw cold start protection.
i) Abnormal shot detection.
j) Output quantity and packaging quantity preset.
k) Clamping, injection and ejection, and carriage action (option) by linear potentiometer.
l) Screw rotating speed read-out.
m) Security code function to avoid missing data or careless changing.
n) Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.
1. Screw rotating speed read-out.
2. Security code function to avoid missing data or careless changing.
3. Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.
4. The response time of the drive system is very fast. It requires only 0.005s to reach the maximum power output, greatly shorten the cycle time.
5. The precision of processing tolerances to produce the plastic parts will be greatly improved. The optimized rate of repeated qualified parts is around 40-130%.
6. Equipped with a rotary encoder and pressure sensor, the pressure flow state of the energy saving the machine will be transmitted to the controller, the command of which will be sent out to the efficient synchronous servo motor to change the rotation and the torque accordingly.
Best products about Pet Food Extruder , Dog Food Extruder and Pet Injection Molding Machine.
Jinan Eagle Food Machinery Co.,Ltd. an ISO9001 certified enterprise, specialized in development
and sales of pet food machinery and relative packing machine. After years of development, Eagle has established a mature sales and agency network. Eagle machine runs in more than 80 countries including USA, Germany, Italy, Span, Holland, Australia, Brazil,Mexico, Egypt etc. All Eagle machines are CE certified with premium quality and stable performance.
Best products about Pet Food Extruder , Dog Food Extruder and Pet Injection Molding Machine.
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 50 are on client’s account.
