Fry pellet machine/Extruded Fry Snacks(Fry Pellets) Processing Line
The extruded fry snacks(fry pellets) processing line is our special line for making oil fry starch based snacks.The main raw materials for this line should be potato starch,corn starch,tapioca starch,cassava starch.The raw materials are first processed in the single screw extruder and this procedure is called curing but not puffing.Then the products should be dried at low temperature to reduce the moisture inside the products.After that the products will be fried in hot oil.The after-frying products are sprayed with seasoning powder in drum roller flavoring line.
The starch materials have more fine structure than the common grain material like corn flour.So the starch based fry snacks have unique smooth taste different from corn flour non-fry puff snacks.The fry pellets snacks food are specially popular in Asia countries markets and also more and more people in other countries like to enjoy that as leisure snacks.
By changing the different shapes of extruder dies,this line can offer you different shapes of fry snacks like spiral,shell,round pipes,square tubes,wheel,fish and so on.
This line process procedure includes raw material mixing,extrusion,cutting,cooling,drying,frying and flavoring.
Technical Parameter:
Parameters / Mode | DP100 single screw extruder processing line |
Input Voltage | 380V/ 50Hz |
Installed Capacity | 96kw |
Power Consumption | 70kw |
Output | 100-120kg/h |
Length | 26m |
Flow Chart: Mixing —Extrusion —Shaping —Drying —Frying —Flavoring
This line includes below machines:
- raw material mixer
- screw conveyor

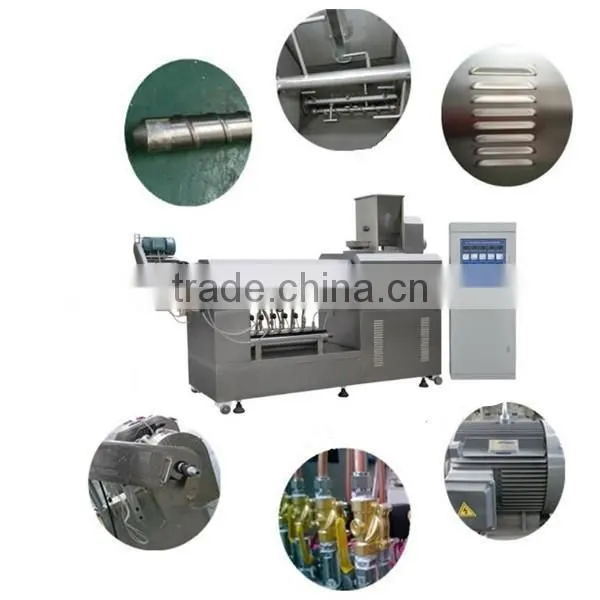

- single screw extruder
- pulling cutter
- cooling machine
- hot air dryer
- fryer
- single roller flavoring line
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
Details & Features of Full Automatic Frying Complex Lays Potato Chips Production Line
1. The Screw is made of durable hard alloy-38CrMoAl, with quite long using life.
2. Feeding Hopper uses Two grades mixing design which allows high feed speed and also avoid any block in raw materials.
3. Radiating Windows design ensure the thermal heat caused by machine discharge easily to extend the machine using life.
4. SIEMENS(China) motors are used, ensure the excellent performance of machines.
5. Cooper Pipes used for cooling cylinder, they are quite durable than plastic rubber pipes.
6. Food Grade stainless steel made Cutter cover meet strict food process safety requirements.
We Provide Satisfied Service & Turnkey Solution
a.) Consultation service before, during, and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
Jinan Eagle Food Machinery is a professional extruded fry snacks(fry pellets) processing line manufacturer in China. We produce principally the corn flakes breakfast cereals processing line,the fish feed processing line and so on. With years of experience, we have established a management system which can adapt to the requirement of market. We can improve our products according to the feedbacks of our customers and manufacture food processing line according to clients' requirements.
If you are in need of food processing equipment, please contact us.
