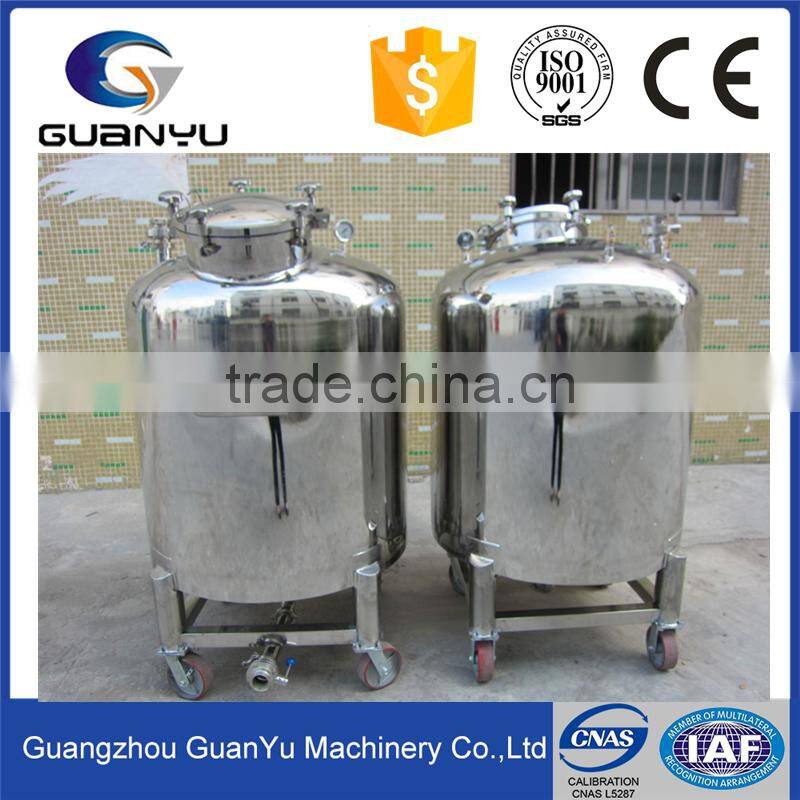

Stainless Steel Storage Wine Tanks Storage Water Tank,Oil Storage Tanks
We can supply single-layer, dual-layer and three-layer stainless steel tanks with or without agitation to blend product. These tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards
Application field:
1.Used for rawness milk tank, processed milk tank, mixing tank(without heating),temporary storage tank, waiting for filling tank, etc.
2.Suitable for such fields as dairy, juice, beverage, medicine chemical or bio-engineering project, etc.
Structure
1.Consisting of inner tank body and outer covering layer, among which is heat preservation material.
2.material of tank is good quality stainless steel.
Standard scheme:
1.Quick open type manhole
2.Numeral indication type thermometer
3 .T type cleaning head
4. lever discharge valve
5.Adjustable conic supporting feet
Technical
Stainless steel storage tank | |
Material: | SS304 or SS316L or Duplex stainless or 904L |
Design Pressure: | -1 -10 Bar (g) or ATM B9 |
Work Temperature: | 0-200C |
Volumes: | 100~30000L |
Construction : | Vertical type or Horizontal type |
Jacket type : | Dimple jacket, full jacket, or coil jacket |
Structure : | Single layer vessel, vessel with jacket, vessel with jacket and insulation |
Heating or cooling function | According to the heating or cooling requirement , the tank will have jacket for required function |
Optional Motor: | ABB, Siemens, SEW or Chinese brand |
Surface Finish: | Mirror Polish or Matt polish or Acid wash&pickling or 2B |
Standard components : | Manhole,sight glass , cleaning ball |
Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves |
Applications: | Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial |
The data in this form due to technical improvement,and not customized to Prevail in kind.
Guangzhou Guanyu Machinery Co.,ltd. has been engaged research and manufacture of machinery for medical ,daily,food,and industrial chemicals for many years.Our main products include fixed vacuum emulsifying machines,hydraulic lifting vacuum emulsifying machines,mobile homogenizers,all kind of reaction agitator kettles,pneumatic,mechanical,pedal and manual filling machines,water treatment equipment and all sort of production line.
After-sales Service:
1. The machines' quality that we sold will be guaranteed for 1 year.
2. Provide you life-long maintenance.
3. Within 24 hours we will send service technicians to the your site.
4. Under normal circumstances, the company will be equipped with conventional spare
replacement parts to meet your requirements at any time.
