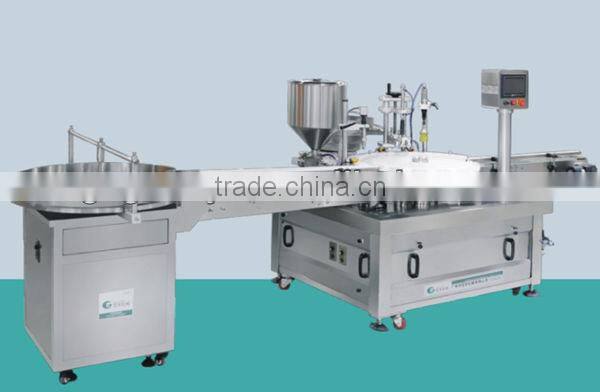

Explosion Proof Rotary Perfume Filling Machine,perfume Filling Production Line

Explosion Proof Rotary Perfume Filling Machine,perfume Filling Production Line photo-1
US$ 6,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V or 380V
Power 0.75kw
Place of Origin Guangdong, China
Brand Name Guanyu
Model Number PER15
Dimension(L*W*H) L700*W500*H2100mm
Weight 350kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Explosion Proof rotary perfume filling machine,perfume filling production line



Introduction:

1. Perfume filling machine is used for filling floral water,perfume and other water-based materials.

2. This machine adopts vacuum typ filling and fixed liquid level type filling,thus avoiding the different levels caused by the thickness of each container bottom.

3. The machine filling nozzle number can be customized,like 6nozzles, 8nozzles, 12nozzles etc, rotary type filling,which has speeded up and meanwhile saved a lot of spaces.

4. The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and lbor tensity.

5. Suitable for glass bottle or the bottle that can not easily be out of shape after the vacuum suction.

6. Equipped with casters, convenient to move.

7. Material contact is stainless steel 316, table surface with stainless steel 304.

Technical parameter:

Model8Heads10Heads
Production capacity20-40bot/min20-50bot/min
Filling Volume5-1000ml5-1000ml
The use of bottles of body height≤250mm≤250mm
application of bottle diameter≤Φ90mm≤Φ90mm
application of bottle diameter≥5mm≥5mm
Supply voltage3/N AC380V/220V3/N AC380V/220V

Perfume products:



Explosion Proof rotary perfume filling machine,perfume filling production line

Perfume equipments as follow:

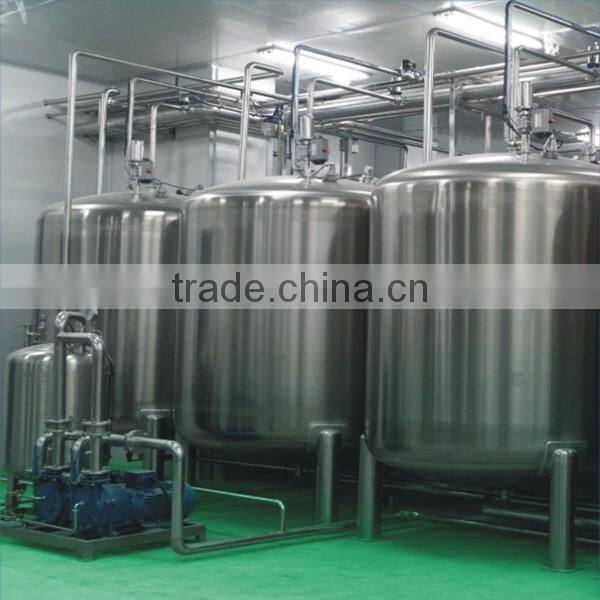

Perfume mixer:

Explosion Proof rotary perfume filling machine,perfume filling production line

Explosion Proof rotary perfume filling machine,perfume filling production line

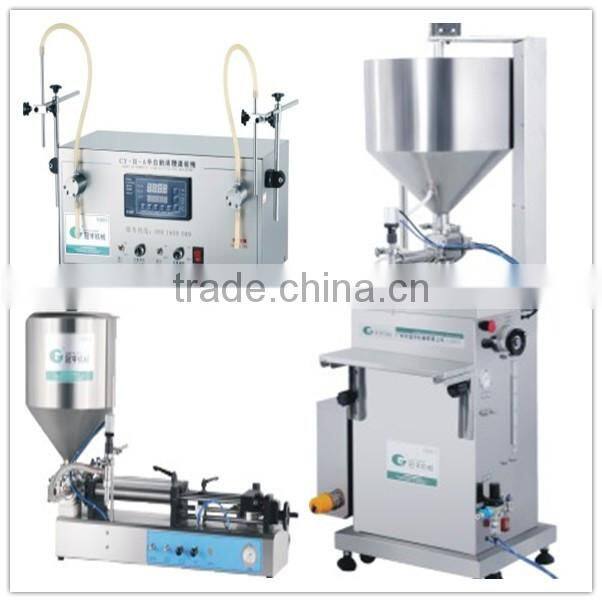

Perfume filling machine:

Explosion Proof rotary perfume filling machine,perfume filling production line

Explosion Proof rotary perfume filling machine,perfume filling production line

Explosion Proof rotary perfume filling machine,perfume filling production line

Explosion Proof rotary perfume filling machine,perfume filling production line

Explosion Proof rotary perfume filling machine,perfume filling production line

Perfume capping machine:

Explosion Proof rotary perfume filling machine,perfume filling production line

Perfume filter:

Explosion Proof rotary perfume filling machine,perfume filling production line

Show Room:

Explosion Proof rotary perfume filling machine,perfume filling production line

Package:

Explosion Proof rotary perfume filling machine,perfume filling production line

Fair:



After Sales Service:

After training:

When you buy our packing machine, you should be after trained to use the packing machine. We have user manual, online video to teach you how to use the packing machine.

After sales service:

1. We have one year warranty and lifetime maintenance.

2. If the buyer has any questions from our technical department, we can supply on-line service.

3. Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; both of them are free of charge.

4. After one year, we offer to repair the machine, but cost of the changed parts are paid by customers.





If you need more information and quotation about the machine.



please contact :Jerry



Skype :gymachine



Phone number /whatsapp/ wechat: 13825018778
