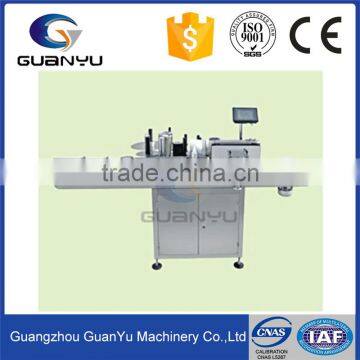

Double Sides or Single Side Labeling Machine Automatic Small Round Bottle labeling Bigh Speed
1. Features
The whole machine adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery, it adopts suit type assembly. The maintenance and servicing can be completed without professionals. When it is necessary to replace the product, just make some simple adjustments, it can be immediately put online for production.
The whole machine is made of S304 stainless steel and high class aluminum alloy using anodizing treatment.
The labeling head is driven by advanced stepping motor Imported from Japan.
All electric eyes are Japanese or German advanced photoelectric eyes.
PLC large-scale human machine interface control, allocated with 60 groups of memory units.
The machine is most suitable for use of small amount of various products or for operation of single machine and single person.
The machine is provided with such mechanism as bottle Piloting, bottle dispensing and labeling, and counting etc.
The labeling position, height and angle can be adjusted.
It can be connected by conveying belt with the production line.
2. Applications
It is suitable for labeling various round bottles (tanks) in such industries as food, condiment, medicine, wine, oil and cosmetics etc.
3. technical paramete
Model | Semi-auto round bottle labeling | Flat bottle labeling | Round bottle labeling | Double sides labeling |
Hight Label Object | 30-200mm | 30-280mm | 30-280mm | 5-180mm |
Label Hight | 15-140mm | 5-180mm | 15-140mm | 30-280mm |
Output Speed | 10-40pcs/min | 60-200pcs/min | 20-200pcs/min | 20-60pcs/min |
Pastes the sign precision | ±1.0mm | ±1mm | ±1mm | ±1mm |
Power Supply | 220V 0.5KW 50/60HZ | 110/220V 2kw 50/60HZ | 220V 1.2kw 50/60HZ | 110/220V 2kw 50/60HZ |
Air supply | 5Kg/cmm | 5Kg/cmm | 5Kg/cmm | 5Kg/cmm |
Machine Size (mm) | 570(L)×270(W)×500(H) | 2800(L)×1450(W)×1360(H) | 2000(L)×1000(W)×1250(H) | 2800(L)×1450(W)×1360(H) |
Guangzhou Guanyu Machinery Co.,ltd. has been engaged research and manufacture of machinery for medical ,daily,food,and industrial chemicals for many years.Our main products include fixed vacuum emulsifying machines,hydraulic lifting vacuum emulsifying machines,mobile homogenizers,all kind of reaction agitator kettles,pneumatic,mechanical,pedal and manual filling machines,water treatment equipment and all sort of production line.
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for our engineer. We will send some free set of spare parts for you change it.
