Batch emulsifier,high shear mixer,high shear emulsifier
Operation Principle:
Batch high shear emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other.The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.
| Intermittent High Shear emulsifier working: |
The rotor revolves in high speed produces centrifugal force,which suctions the material from upper and lower feeding area axially to the operation chamber. The strong centrifugal force throws the material axially to the narrow slot between stator and rotor.The material then receives centrifugal press,clash and other forces,which firstly disperse and emulsify the material. The outer terminal of the rotor revolved in high speed produces a line speed more than 15ms and even up to 40ms,which produces strong mechanical and liquid shearing,liquid abrasion,clashing and tearing which fully disperse,emulsify,homogen,and break the material and jet from the stator slot. As materials jet in radial in high speed , they change their flow direction with resistance from themselves and vessel walls.The upperand lower axial suction force then leads to strong upper and lower rushing flows.After many circulations,the material is finally disper sed and emulsified evenly. |
Technical parameter:
Model | Power Kw | Rotation speed r/min | Flow L |
GYW90 | 1.5 | 2800 | 5-50 |
GYW100 | 2.2 | 2800 | 50-100 |
GYW120 | 4 | 2800 | 100-300 |
GYW140 | 5.5 | 2800 | 200-800 |
7.5 | 2800 | ||
GYW160 | 11 | 2800 | 300-1000 |
15 | 2800 | ||
GYW180 | 18.5 | 2800 | 500-1500 |
GYW200 | 22 | 1400 | 800-2000 |
GYW220 | 30 | 1400 | 1000-3000 |
GYW240 | 37 | 1400 | 1500-5000 |
GYW270 | 55 | 1400 | 2000-8000 |
GYW290 | 75 | 1400 | 3000-10000 |
We mainly make the follow machineries:
The design of the shape have a different style:
The project:
RO pure water treatment---liquid and washing mixer---storage Tank---bottle drying&sterilizing Machine--Filling Machine---Transportation Table---Inkjet Printer---labelling Machine---Aluminum foil sealing machine---shrink Film Packing Machine.

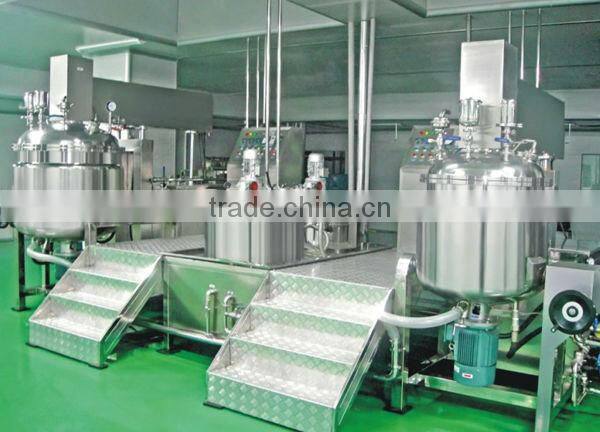

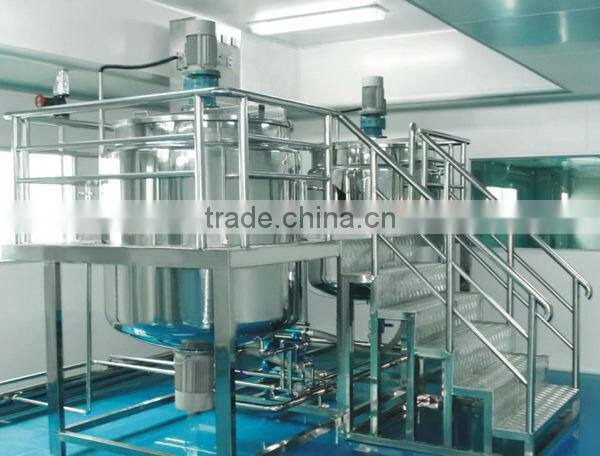

Show Room:
Professional machine for produce facial cream, body lotion, toothpaste, shampoo, liquid detergent, perfume, powder foundation,lipstick, bechamel,ketchup medicine of cosmetic, daily chemical, pharmacy, foodstuff etc.
CE and Canton fair:
After training:
When you buy our packing machine, you should be after trained to use the packing machine. We have user manual, online video to teach you how to use the packing machine.
After sales service:
1. We have one year warranty and lifetime maintenance.
2. If the buyer has any questions from our technical department, we can supply on-line service.
3. Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; both of them are free of charge.
4. After one year, we offer to repair the machine, but cost of the changed parts are paid by customers.
Jiahe Street, Baiyun District, Guangzhou, Guangdong, China (Mainland)
Jerry
Trade manager
Guangzhou Guanyu Machinery Co.,Ltd
Website:
Skype: gymachine
QQ: 2584328625
Mobile: 0086-13825018778
Tel: 008620-61196671 Fax: 008620-61196670
1. Q: Where is your factory?
A: We are in Guangzhou, China.
2. Q: How can I check the quality?
A: You can fly to our factory to inspect or we take video for you.
3. Q: How will you deliver my goods?
A: We can deliver it by sea or by air.
4. Q: Do I have to learn how to operate this machine?
A: No, you just turn on it, it will work automatically.
5. Q: Where can I get help on this machine?
A: Contact us whenever you need help, or we can arrange oversea engineer to help.
6. Q:Are you a manufacturer or a trading company?
A:We are the manufacturer.
7. Q:What's the payment terms?]
A: T/T,30% deposit and 70% balance before delivery. L/C
8. Q:How to order?
A: You can send me an inquiry, then we could confirm the details through emails or telephone.
9. Q:How much is the transportation freight?
A:The freight depends on the weight and size, also the destination port.
10. Q:This is my first time to import, how can I trust your company and ensure to get the goods
if I order from you?
A:We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.
Escrow, to ensure your safety.
11. Q:There are too many models, i don't know which one to choose?
A: Welcome to contact us through TradeManager, we will recommend according to your
requirement. If during closing time or weekend, Please send mail to us, we will response
within 24 hours.
12. Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please be sure product undamaged,
otherwise, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
