Home > Instruments & Meters > Electronic Instrument > Signal Generator > Signal Generator

Signal Generator

Name: Signal Generator
Brand: WILLDONE
SKU: 141227784

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

WILLDONE

Model Number:

MAG-203D

Contact Supplier Request Quote Chat Now

Shenzhen Willdone Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name WILLDONE

Model Number MAG-203D

Specifications

Oscilloscope

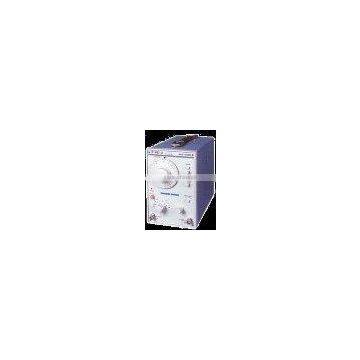

MAG-203D Low Frequency Signal Generator
Features:
Complete Japanese technologies and imported component

Oscilloscope

MAG-203D Low Frequency Signal Generator

Features:
Complete Japanese technologies and imported component assembly ensure minimum accuracy deviation.

Specifications

Oscillation frequency	x1 range: 10Hz to 100Hz x10 range: 100Hz to 1KHz x100 range: 1KHz to 10KHz x1K range: 10KHz to 100KHz x10K range: 100KHz to 1MHz
Frequency accuracy	+/-3% +1Hz
Output impedance	600Ω
Output attenuator	0dB, 10dB, 20dB, 30dB, 40dB, 60dB (6 ranges for selection) (with an accuracy of +/-1dB under a load of 600Ω)
Characteristics of sine wave
Output voltage	more than or equal to R5Vrms
Frequency response	10Hz to 1MHz: +/-0.5dB
Distortion	400Hz to 20KHz: ≤0.1% 100Hz to 100KHz: ≤0.3% (100Hz: x10 range) 50Hz to 200KHz: ≤0.5% 20Hz to 500KHz: ≤1% 10Hz to 1MHz: ≤1.5%
Characteristics of square wave
Output voltage	≥10VP-P
Rise/down time	200ns (at maximum output)
Duty ratio	45:55 (1KHz, at maximum output)
Synchronizing range	≤1% Vrms
Input voltage	15V (DC+AC peak value)
Nominal operation temperature/humidity	10ºC to 35ºC/within 85%RH
Power supply	220V/110V +/-10%; 50Hz/60Hz
Dimensions	128(W) x 190(H) x 239(D) mm
