Wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder Electrodes

Wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder Electrodes thumbnail-1
Wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder Electrodes photo-1
US$ 0.2999 - 5.999 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
yuheng
Model Number:
wt10/20/30/40/,wl10/15/20,wz3/wz8,wp
Contact Supplier Request Quote Chat Now
Shaanxi Yuheng Tungsten & Molybdenum Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name yuheng
Model Number wt10/20/30/40/,wl10/15/20,wz3/wz8,wp
Voltage v
Current a
Dimensions 1.0/1.6/2.0/2.4/3.0/3.2 mm
Usage welding
Certification tuv
After-sales Service Provided No overseas service provided

Welder electrodes
WT10/20/30/40,WP,WZ3/8,WL10/15/20,WCe20 ac/dc Welder electrodes wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes
Applications of all types wolfram Welder electrodes

PURE Tungsten Color Coded GREEN
PURE Tungsten Color Coded GREEN, are best suited for AC Tig welding applications.
Pure Tungsten, Green, AWS Class EWP, AC welding applications. Least expensive of all electrodes. Applications: aluminum and magnesium alloys.

THORIATED Tungsten Color Code RED, YELLOW, or ORANGE
THORIATED Tungsten Color Code RED, YELLOW, or ORANGE, are best suited for DC Tig welding applications.
2% Thoriated, Red, AWS Class EWTH-2, DC welding applications. The most common type of electrode used today. Applications: carbon & stainless steel, nickel alloys and titanium.

LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE
LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE, are suitable for AC & DC welding applications.
Lanthanated, Black, AWS Class EWLA-1.5, AC & DC welding applications. Non-Radioactive Good arc characteristics in ac/dc applications. Applications: carbon & stainless steel,nickel alloys and titanium.

CERIATED Tungsten Color Code GREY or ORANGE
CERIATED Tungsten Color Code GREY or ORANGE, are best suited for low amperage DC welding applications.
Ceriated, Grey, An excellant alternative to Thoriated tungsten especially in low amperage welding. Takes 10% less current to start and has a very stable arc.

ZIRCONIATED Tungsten Color Code WHITE or BROWN
ZIRCONIATED Tungsten Color Code WHITE or BROWN, are best suited for AC Tig welding applications.
Zirconiated, White, AC Welding applications. Better start up than Pure Tungsten, Balls up well and has a more stable arc than Pure Tungsten. Better current carrying capacity and high resistance to contamination during welding.

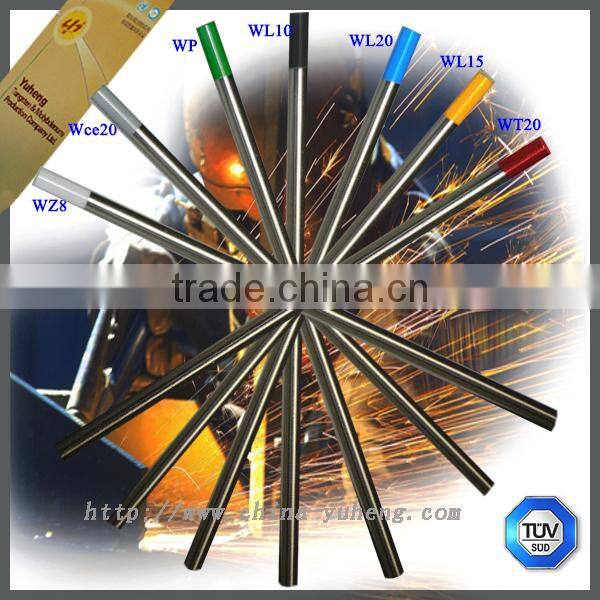

 Photos of wt20 ac & dc  Welder electrodes
 wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes

wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes
Packaging & Shipping

 1) 10 pieces china tungsten electrode welding put into 1 plastic box, or plastic bag is available as client's requirement.

 2) Then packed in one carton box.

 3) Shipping by Air or Express as following for refer and option,  within One Week from China to Client's office



DHL           UPS               FEDEX            EMS                    SF               TNT or Other way as client request







  wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes





Our Services

We always pursue cooperation, win-win strategy and honesty to work with our customers, Truly high technology, technolgy innovation as the driving force for thre purpose of excellent quality, and honesty as a creed. Dedicated to new and old customer to provide quality products and good serivces
To provide our best service for each clients, no matter where they come from.

Company Information



Shaanxi Yuheng Tungsten& Molybdenum Industrial Co., Ltd is located in Baoji city, China.
It is specialized in the research and produce nonferrous metals such as Tungsten( Tungsten/ tig welding wolfram electrodes have WT10/WT20/WT30/WT40/WL10/WL15/WL20/WP/WZ3/WZ8/WY20), Molybdenum, Titanium,

those alloys for more than 17years in this line. And we have more than 8years export experience in the world.
Especially in South Korean, USA and Europe market such as poland, UK, Germany etc

wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes



 wt10/20/30/40/,wl10/15/20,wz3/wz8,wp Ac/Dc Tig Welder electrodes
