Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-1

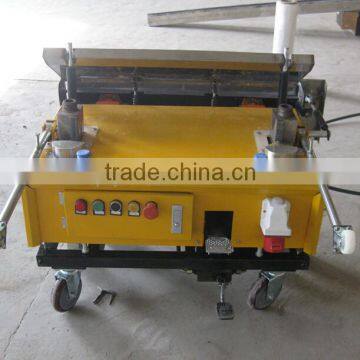

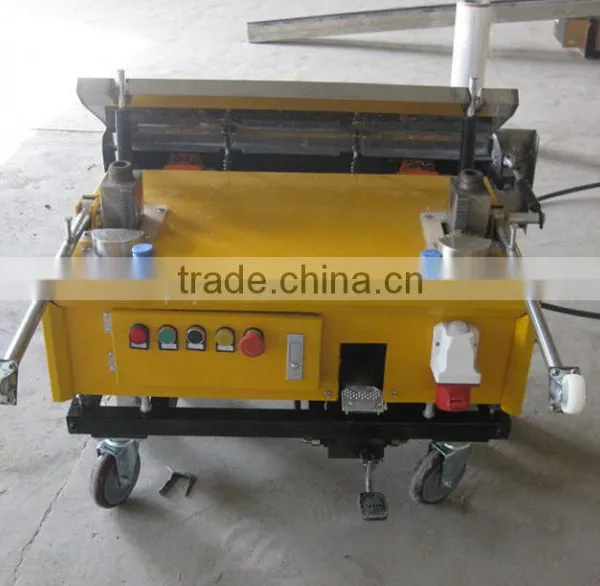

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-2

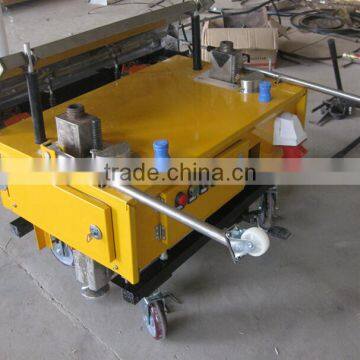

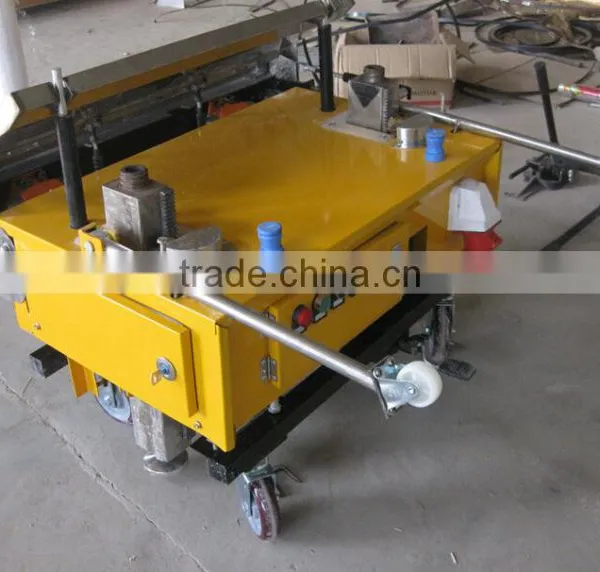

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-3

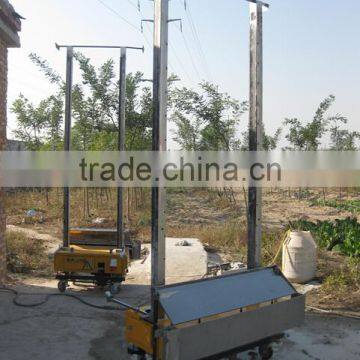

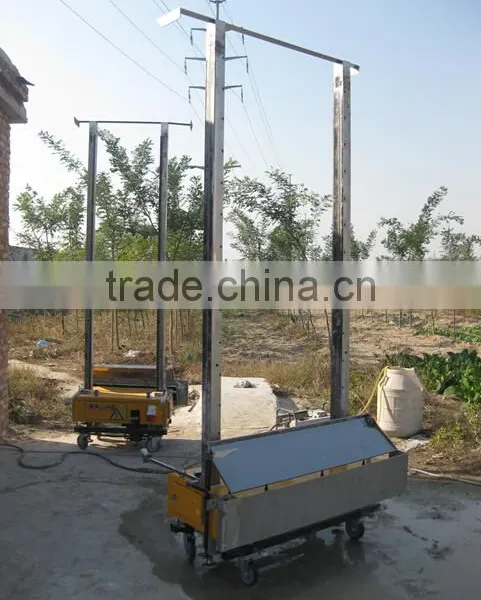

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-4

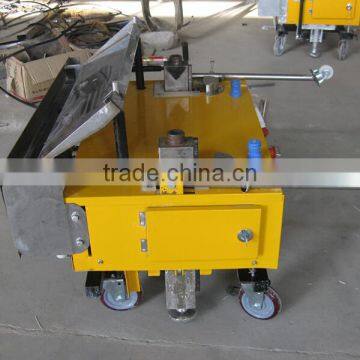

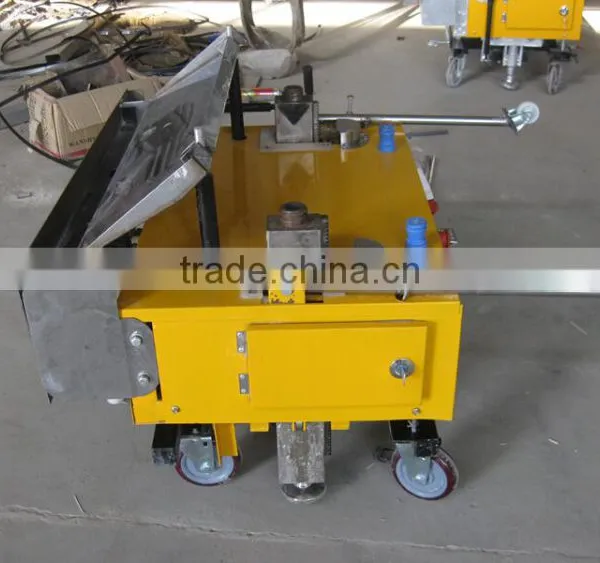

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-5

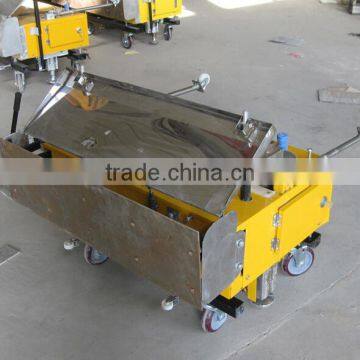

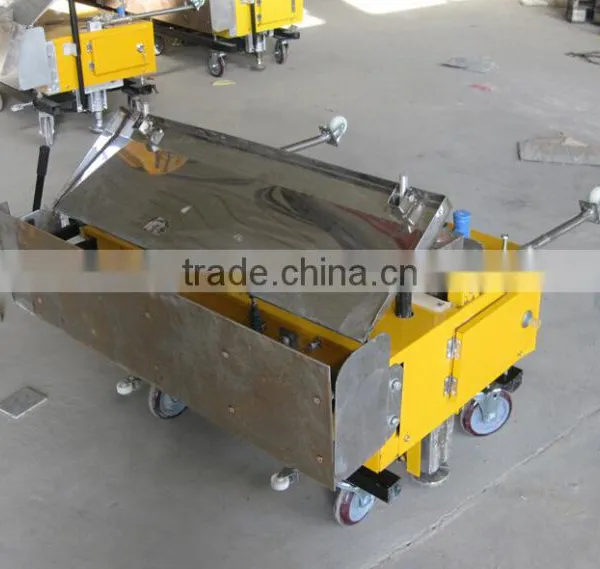

Auto Plaster Rendering Machine,Render Machine,wall Plaster Machine photo-6
US$ 1,000 - 3,650 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Power(W):
2.2KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Power(W) 2.2KW
Rendering Thickness 30 mm
Rendering Height 5 m
Place of Origin Hebei, China
Brand Name ZB
Model Number ZB800-4A
Dimension(L*W*H) 1350*800*500MM
Weight 195KG
Certification CE Certification
Warranty 18 MONTHS
After-sales Service Provided Engineers available to service machinery overseas

auto plaster render machine



Product Description

 ZB800-4A Technical data

Plastering Height

0-5meters

Plastering Thickness

2-25mm

Plastering Width

80cm

Capacity

450 square meters/8 hours

Dimensions

800×650×480mm

Voltage/frequency

According to your demands

Weight

150KG

Surface

smooth

Vibrator

2 vibrators

Juncture device

Yes

Smoothing knife

Yes

Perpendicularity degree

2mm

Level degree

2mm

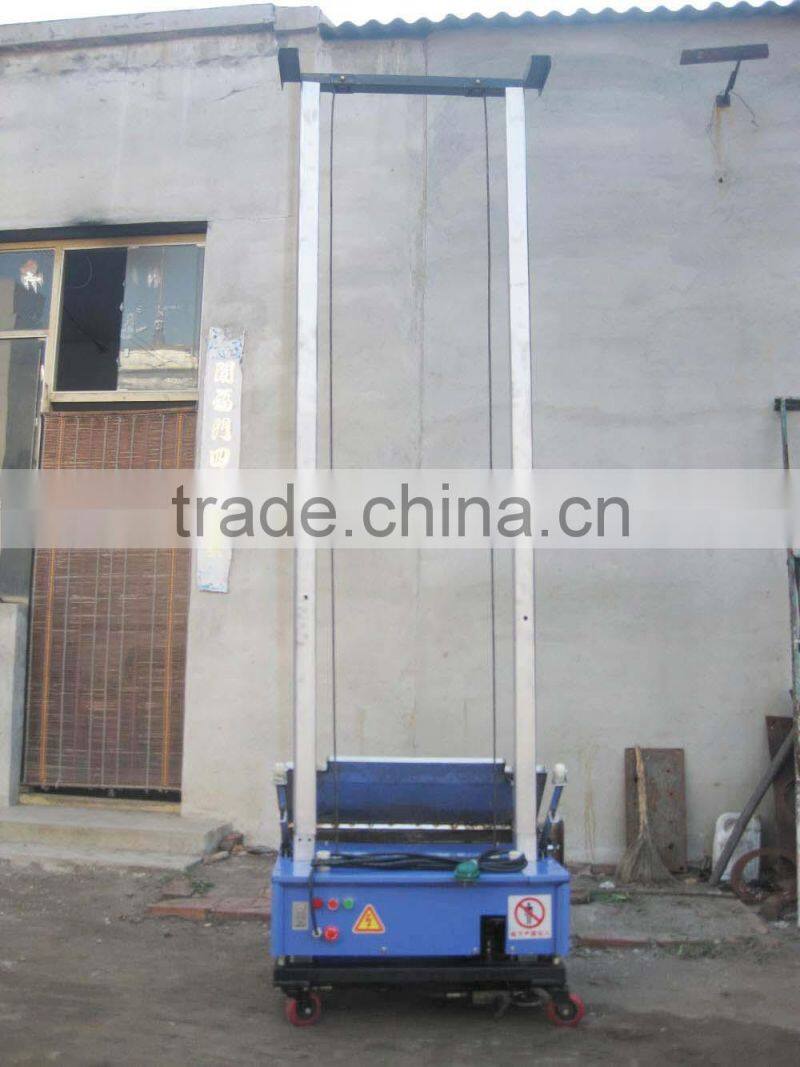

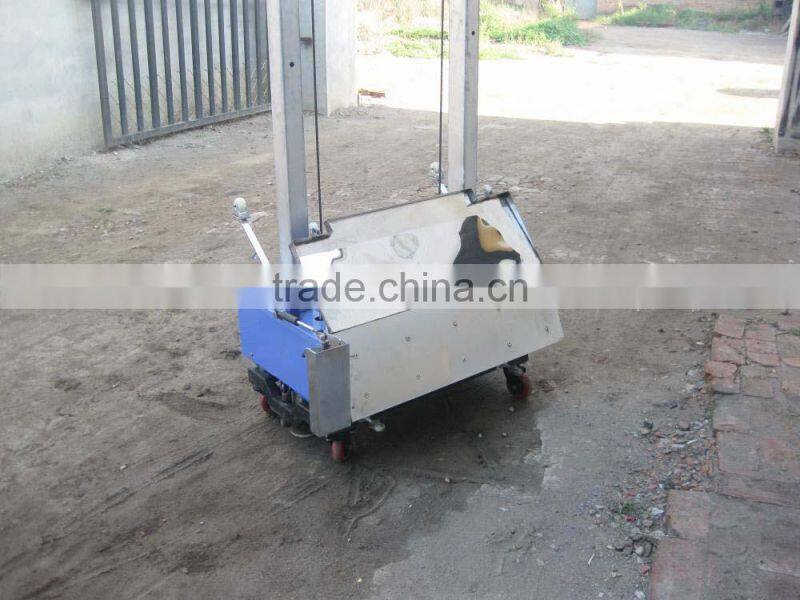

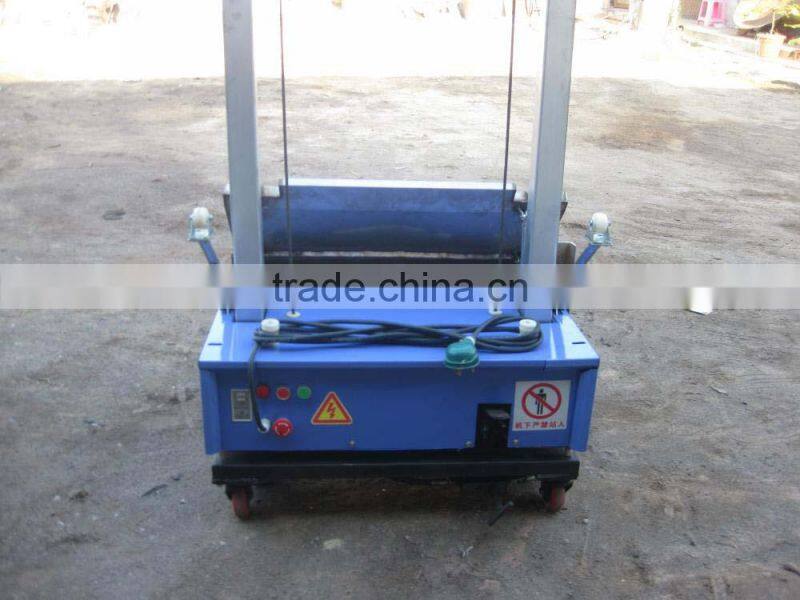

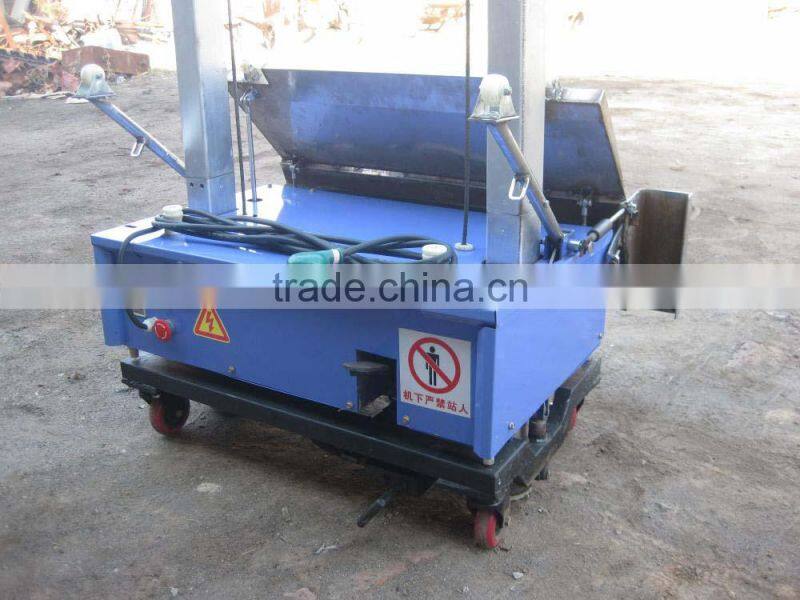

Detailed Images

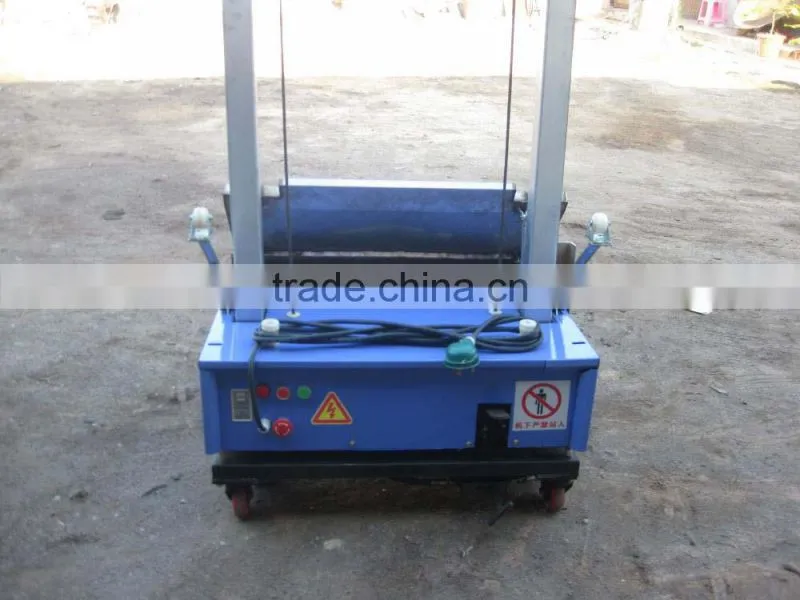

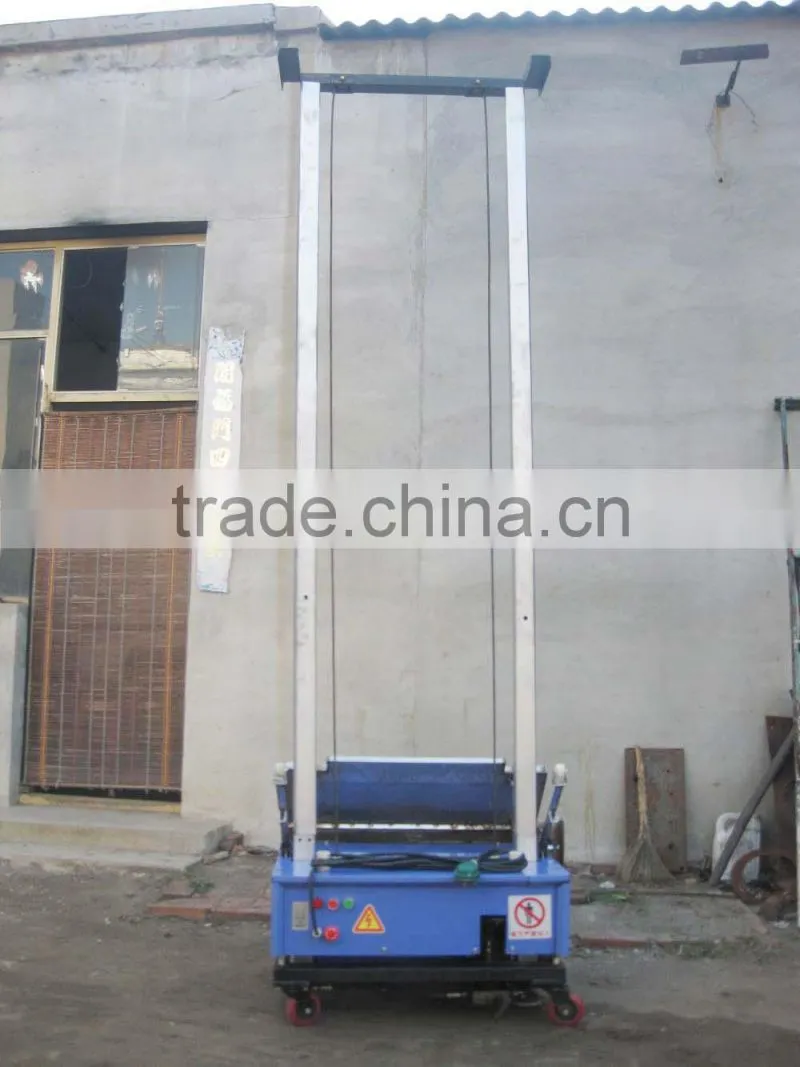

Auto plaster rendering machine,Render machine,wall plaster machineAuto plaster rendering machine,Render machine,wall plaster machineAuto plaster rendering machine,Render machine,wall plaster machineAuto plaster rendering machine,Render machine,wall plaster machineAuto plaster rendering machine,Render machine,wall plaster machine

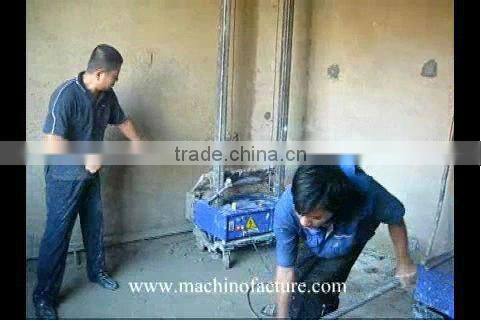

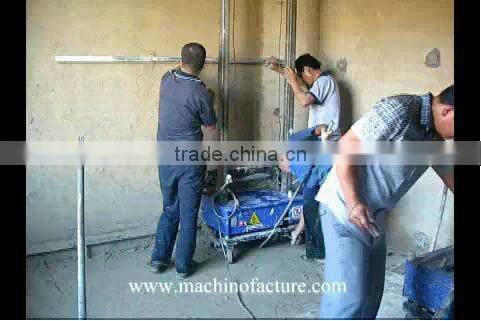

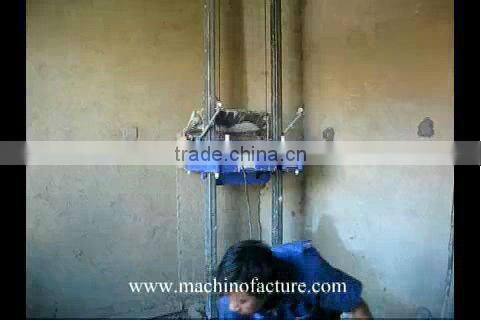

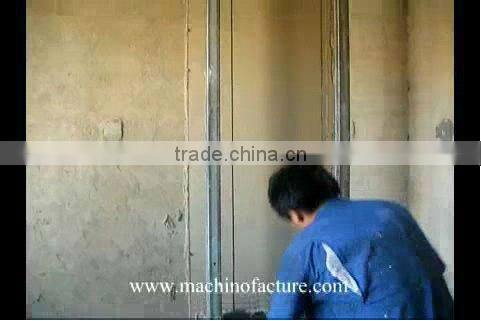

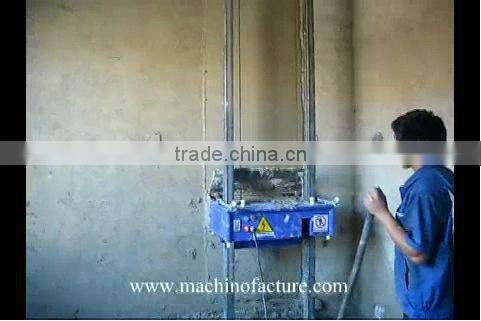

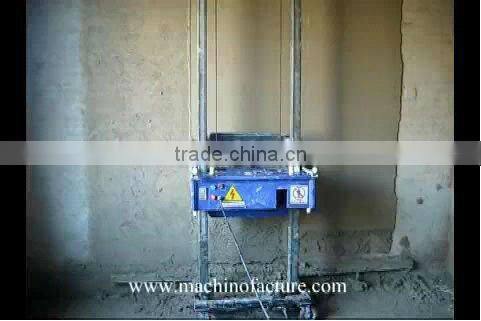

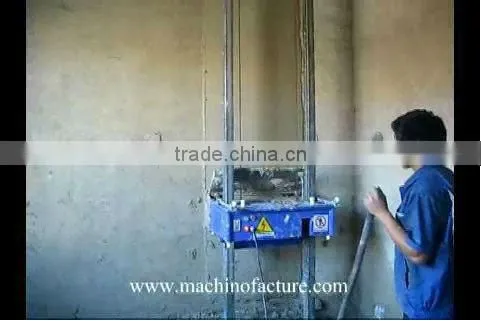

operation

Step 1.fix the machine

Step 2. load ash

Step 3. go up to the first plastering

Step 4. go down for the first smoothing

Step 5. the first section of plastering wall is finished



Step 6.repeat step1-5

 .

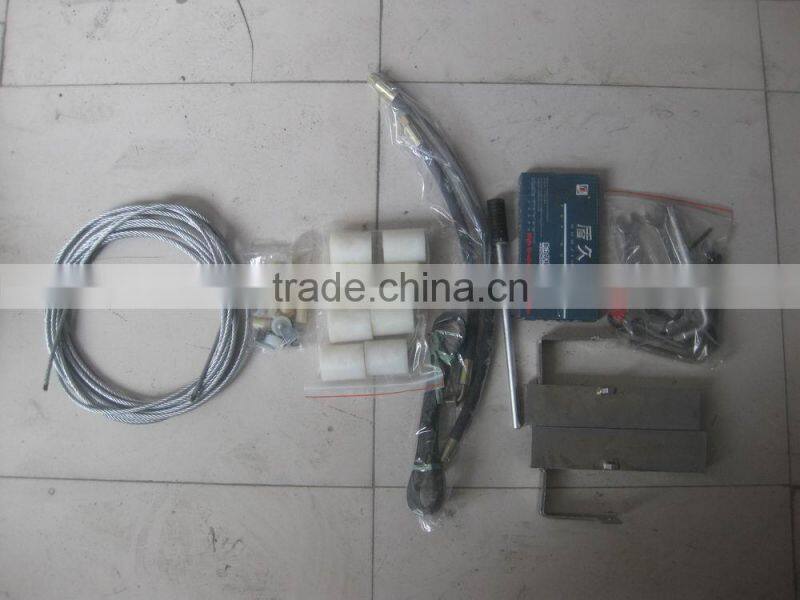

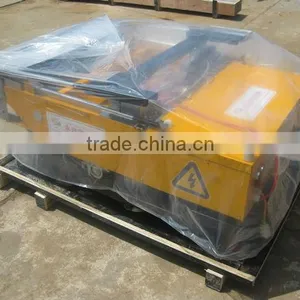

Packaging

Auto plaster rendering machine,Render machine,wall plaster machine

FAQ
Machine doesn't go down  Hydraulic is very fastness, any bulge will stop the machine
1. Shake the upright tube strongly.
2. Use Supporting square tube to pry down it.
3. Loosen the hydraumatic, and then lock it again.
If intermittent stop on the way
1. Nylon wheel is lack of oil, take out the pin roll and put some oil on it
2. There are sand on the upright tube, please wash it by watered woven bag
3. There are sand on the nylon wheel, pull out the upright tube, knock out the drivepipe by hydraumatic, wash the drivepipe by high pressure water.
The machine go down without smoothing  Two of the gas spring need do forward adjustment
The machine go up slowly or cannot go up The motor v-belt is loose, please adjust it tighten
Difficult moving Pry up the machines’ chassis, then prick a hole on the mineral water bottle to wash the universal wheel

Auto plaster rendering machine,Render machine,wall plaster machine
