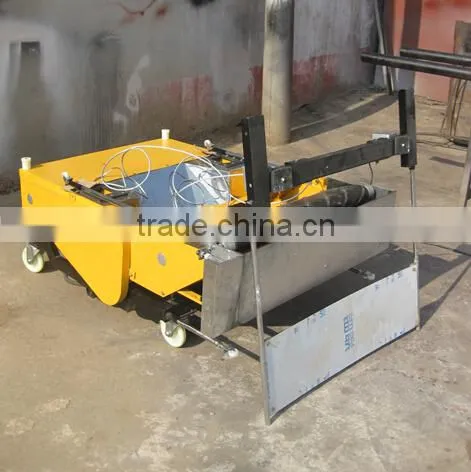

Efficient Automatic Cement Sand Plaster Machine
US$ 1,000 - 3,700
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Power(W):
1.5KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price Automatic Plaster Machine for WallUS$ 1,000 - 3,650MOQ: 1 Set -
Pasterer Equipment/automatic Rendering Machine/Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Pasterer Equipment/construction Equipment/Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Pasterer Equipment/auto Rendering Machine/Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Pasterer Equipment/constuction Machinery/Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Power(W)
1.5KW
Rendering Thickness
25 mm
Rendering Height
5 m
Place of Origin
Hebei, China
Brand Name
ZB
Model Number
ZB800-4A
Dimension(L*W*H)
800*650*480MM
Weight
150KG
Certification
CE Certification
Warranty
18 MONTHS
After-sales Service Provided
Engineers available to service machinery overseas
cement sand plaster machine
Product Description
ZB800-4A Technical data | |
Plastering Height | 0-5meters |
Plastering Thickness | 2-25mm |
Plastering Width | 80cm |
Capacity | 450 square meters/8 hours |
Dimensions | 800×650×480mm |
Voltage/frequency | According to your demands |
Weight | 150KG |
Surface | smooth |
Vibrator | 2 vibrators |
Juncture device | Yes |
Smoothing knife | Yes |
Perpendicularity degree | ≤2mm |
Level degree | ≤2mm |
Detailed Images
operation
Step 1.fix the machine
Step 2. load ash
Step 3. go up to the first plastering
Step 4. go down for the first smoothing
Step 5. the first section of plastering wall is finished
Step 6.repeat step1-5
.
Packaging
FAQ
Machine doesn't go down Hydraulic is very fastness, any bulge will stop the machine
1. Shake the upright tube strongly.
2. Use Supporting square tube to pry down it.
3. Loosen the hydraumatic, and then lock it again.
If intermittent stop on the way
1. Nylon wheel is lack of oil, take out the pin roll and put some oil on it
2. There are sand on the upright tube, please wash it by watered woven bag
3. There are sand on the nylon wheel, pull out the upright tube, knock out the drivepipe by hydraumatic, wash the drivepipe by high pressure water.
The machine go down without smoothing Two of the gas spring need do forward adjustment
The machine go up slowly or cannot go up The motor v-belt is loose, please adjust it tighten
Difficult moving Pry up the machines’ chassis, then prick a hole on the mineral water bottle to wash the universal wheel
1. Shake the upright tube strongly.
2. Use Supporting square tube to pry down it.
3. Loosen the hydraumatic, and then lock it again.
If intermittent stop on the way
1. Nylon wheel is lack of oil, take out the pin roll and put some oil on it
2. There are sand on the upright tube, please wash it by watered woven bag
3. There are sand on the nylon wheel, pull out the upright tube, knock out the drivepipe by hydraumatic, wash the drivepipe by high pressure water.
The machine go down without smoothing Two of the gas spring need do forward adjustment
The machine go up slowly or cannot go up The motor v-belt is loose, please adjust it tighten
Difficult moving Pry up the machines’ chassis, then prick a hole on the mineral water bottle to wash the universal wheel
