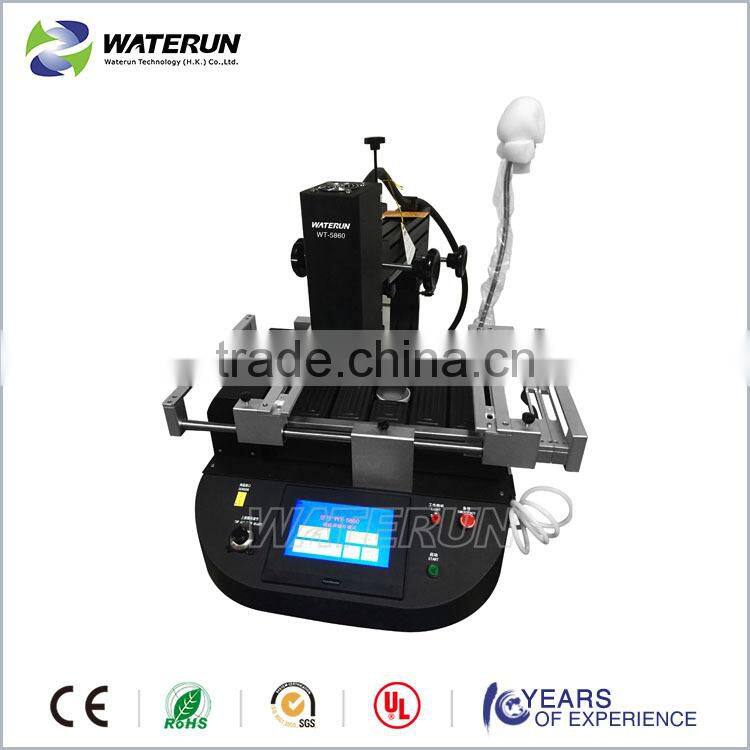

WT-5860 BGA 4800W Welding Field Robot Rework Station with 800w Heater Power
| Model | WT-5860 |
| Total power | 4800W |
| Top Heater Power | 800W |
| Bottom Heater Power | 2nd heater : 1200W, 3rd IR heater :2700W |
| Dimensions | 635x 600x 560mm |
| Brand |
Waterun |
| Leadtime | About one week |
| Packing | 1 set/carton |
WT-5860 BGA Rework Station
→ With the liner slide, all the X,Y,Z axis can do precision adjustment and fast positioning.
→ HD touch screen, PLC control, can save multiple sets of temperature profile data; with instant temperature curve analysis function.
→ 3 independent heating areas from top to bottom. The 1st and 2nd are hot air heaters, the 3rd is IR preheating, temperature controlled within ±3°C
→ Offer all kinds of hot air nozzles which can rotate 360° with magnet, easy to install and change.
→ Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB from deformation when heated or cooled; it can rework any BGA package size.
→ Powerful cross-flow fan rapidly cool the PCB to improve efficiency; Also built-in vacuum pump and external vacuum suction pen, pick up the Chips rapidly.
Technical Data:
Total Power |
4800W |
Top Heater Power |
800W |
Bottom Heater Power |
2nd heater: 1200W, 3rd IR heater: 2700W |
Dimensions |
635 x 600 x 560mm |
Positioning |
V-groove, with external universal fixture |
Temperature Control |
K-type thermocouple (closed loop control) |
PCB Size |
Max: 410 x 370mm Min: 20 x 20 mm |
Net Weight |
40 Kg |
Recommend Models
1.We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
3.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
4. Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
5. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
6. Price: we always offer competitive prices and help our customers to cost down.
7. Quality: we do 100% inspection before the shipment.
8. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
Why us?
1. ONE-STOP: We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. SERVICE: With our big and efficient sales team, we can guarantee the fast response and excellent service.
3. Orders: We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. ODM: We can also customize the products to fulfill different requirements.
| Product | 4800W BGA Robot rework station |
| Package | 1 set / carton |
| Delivery Date | 5-7 days |
| Delivery Terms | FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery |
| Payment Terms | T/T, L/C, PayPal, Western Union, Escrow |
| Port | Shenzhen |
| Shipment Method |
A. By Courier: 4-7 Working days by special offer |
| B. By Air: 7 Working days at appointed airport | |
| C. By Sea: 20-25 Working days at appointed port |
