welding fume extractor Model: F6001
Summary:
Waterun Fume Purifying and Filtering System is for cleaning of both particles and gases. It is designed to filter the harmfu substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc. It catches harmful smoke with freestanding ducts and adjustabl air volume to significantly improve your working environment.

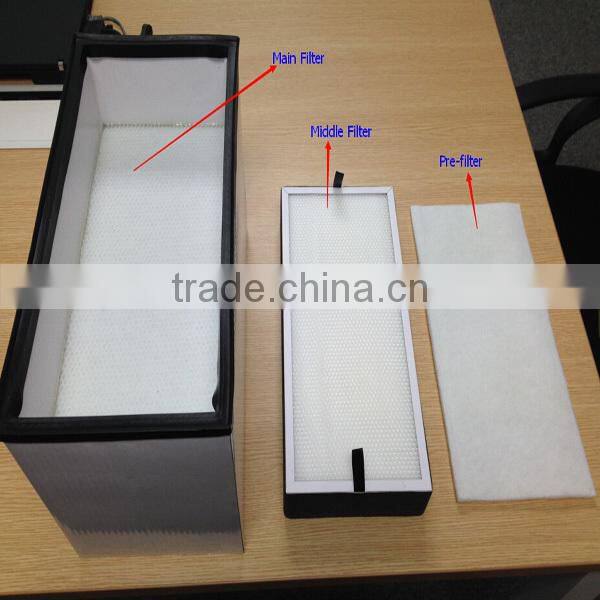

It has a triple-filter system:
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.
Features:
- It realizes powerful suction with quiet operation;
- Brushless motor ensures low noise, stable performance, and long product life;
- Triple-filter design. Pre-filters and Main Filters can be replaced separately for prolonging the filter‘ s life time and cutting down the cost:
- Built-in air cycling filtering system avoids discharging the cool/hot air to outside;
- It is easy to install and no need to lay pipelines;
- The airflow is freely adjustable according to working environments;
- Freestanding flexible ducts facilitate production changeovers;
- Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.
Specifications:
| Model | Voltage | Power | Ducts | Systemic Flow | Air Velocity | Filtering Efficiency | Length of Duct | Noise | Dimensions (mm) | Weight |
| F6001 | 110V/220V | 80W | 1 | 235m3/h | 17m/s | 0.3μm 99.97% | Φ75mm x 1.4m | <55dB | 420 X 245 X 400 | 12 kg |
| F6002 | 110V/220V | 200W | 2 | 2 x 150m3/h | 2 x 11m/s | 0.3μm 99.97% | Φ75mm x 1.4m | <60dB | 420 X 24 |

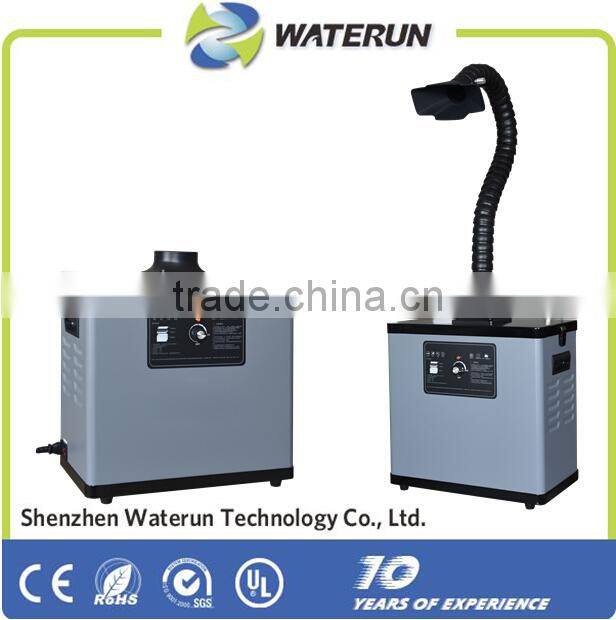

F6001 Fume extractor picture showing:
Welding fume extractor
Packaging details:
machine body: 1 carton = 1 unit
carton size: 53 x 33 x 50cm
gross weight: 17.49 kg
extracting duct: 1 carton = 1pcs
carton size: 45 x 45 x 15cm
gross weight: 6.10kg
Shipping details:
By sea, by air, by courier
1. We can also customize the products to fulfill different requirements.
2. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
