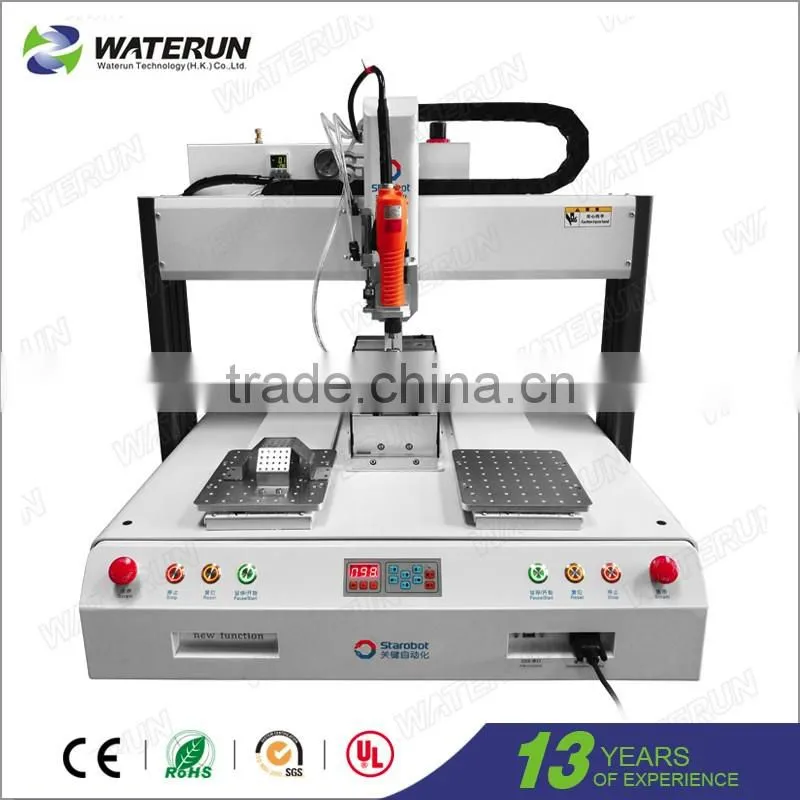

LS-300YY Desktop Screw Fastening Robot, 4 axis Screw Fastening Robot
---- You could choose different screw feeder and screwdriver combination to meet different requirement
| Screw Fastening Robot |
LS-300YY |
| Voltage | 110V/220V AC |
| Drive Mode | 4 Axis precision step motor |
| Operating Range | 500mm x 300mm x 80mm (X*Y*Z) |
| Movement Speed | X*Y Axis: 0.1~800mm/s, Z Axis:0.1~400mm/s |
| Repeatability Accuracy | ±0.02mm (X*Y*Z) |
| Min. Analysis | 0.01mm (X*Y*Z) |
| Max. Load Weight | 8kgs (for work platform |
| Program Capacity | Max.255 programs |
| Operating Temperature | 10℃-40℃ |
| Operating Humidity | 20-90% |
| External Dimensions | 760 x 620 x 710mm |
| Weight | about 91 kgs |
Description:
Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistency & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
Applications: Basic Configuration
It is suitable for all kinds of screw fastening process on mobile phones, keyboards,monitors, car accessories, toys,small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers) etc..

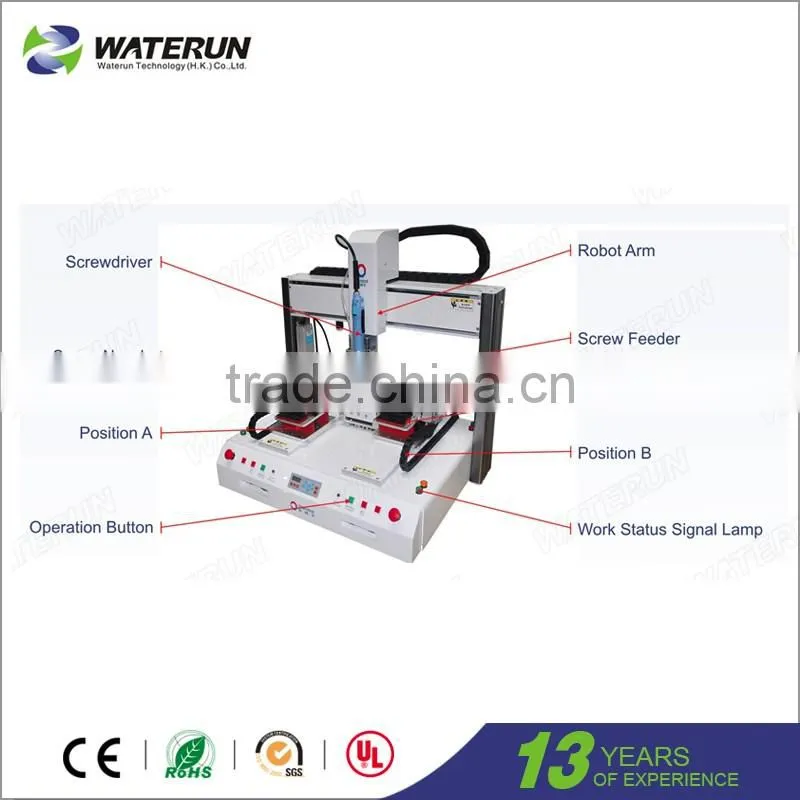

Basic Configuration:
Optional Combination:
| A | One screw feeder, one screwdriver |
| B | Two screw feeder, one screwdriver |
| C | Two screw feeder, two screwdriver |
| D | Two screw feeders, two screwdriver, two clamping devices. (this is specially designed to fasten screws for cellphone and small tablets |
Robot:

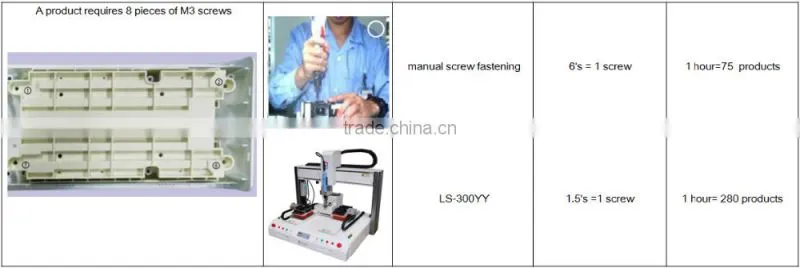

1. Each screw takes 1.5 seconds, two products in one machine, total 16pcs screws
2. Two products can be completed by 26 seconds.
3. One products takes 14 seconds
4. One screw fastening robot production capacity: about 280pcs product/hour
Manual screw fastening, each screw takes 6 seconds, one product takes about 48 seconds, production yield: 75pcs products/hour
Test result: screw fastening robot's production efficiency is 3 times higher than manual screw work.
- The Stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy ad repeat precision.
- Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
- It guarantees the high precision of screw fastening which cannot be achieved by the traditional maunal screw fastening.
- Besides, it improves the production efficiency and reduces the labor cost.
- Suitable for most of the screws,especially the stainless steel screws.
- It is easy to learn the operation. One operator can operate several machines at the same time.
- The rail of the screw feeder is adjustable. (Applicable screws:M1.5-M5.0)
1.We are a leading manufacturer of Screw Fastening Robot and we controll Robot in high quality!
2. We can also customize the products to fulfill different requirements.
3. Credibility: We are the 7th year Alibaba Gold Supplier. Our customers are located all over the world.
4. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
5.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
6.We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
7. Price: we always offer competitive prices and help our customers to cost down.
8. Quality: we do 100% inspection before the shipment.
9.Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
10. We also supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
Q1: Are you manufacturer, and are you make the Screw Fastening Robot yourselves?
A1: Yes, we make Screw Fastening Robot, Soldering Robot and Glue Dipenseing Robot ourselves! Warm welcome to inquiry!
| Model | LS-300YY |
| Package | 1set/exported case |
| Weight | about 91kg |
| Delivery | 3-5 days |
| Payment | Bank, Westerun Union, Paypal |
| Port | Shenzhen |
| Shipment |
A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
