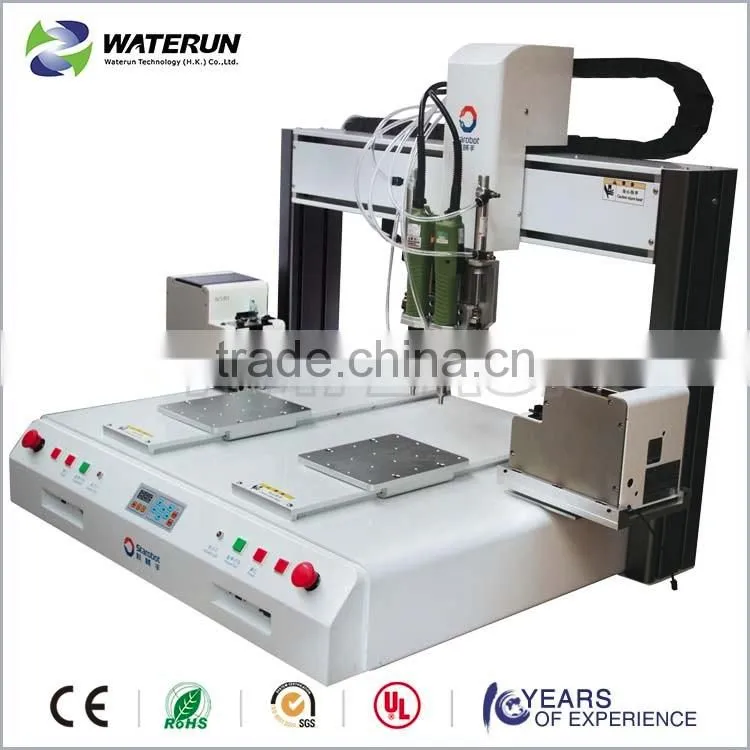

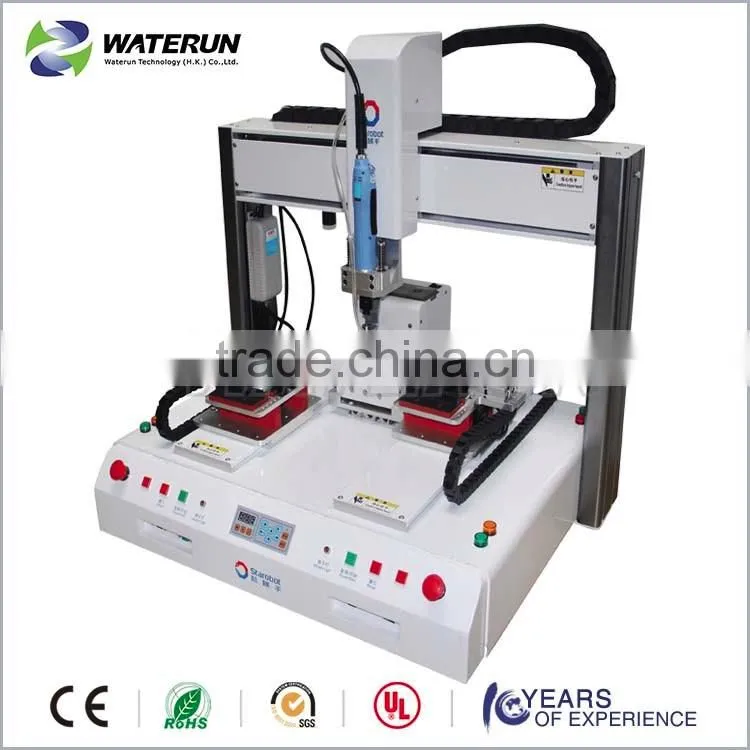

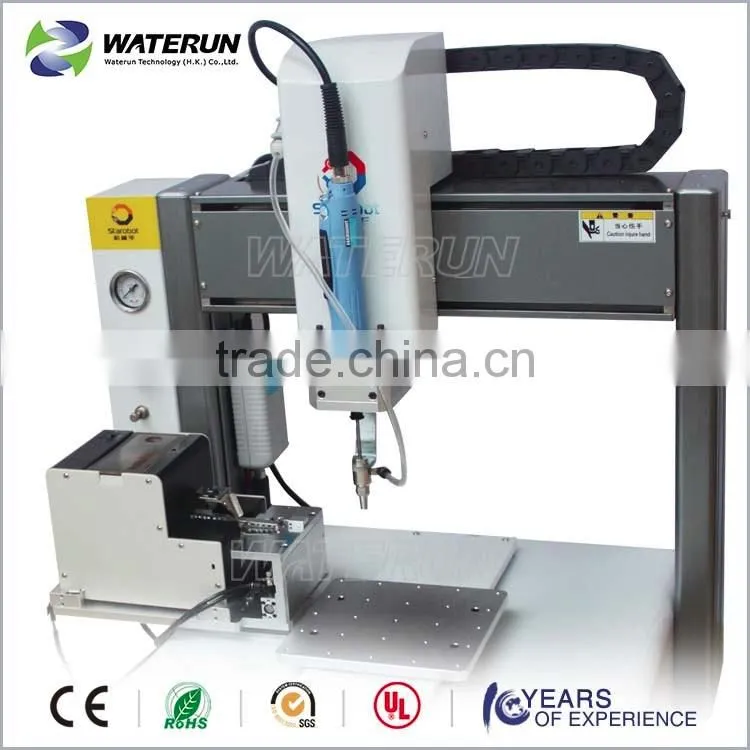

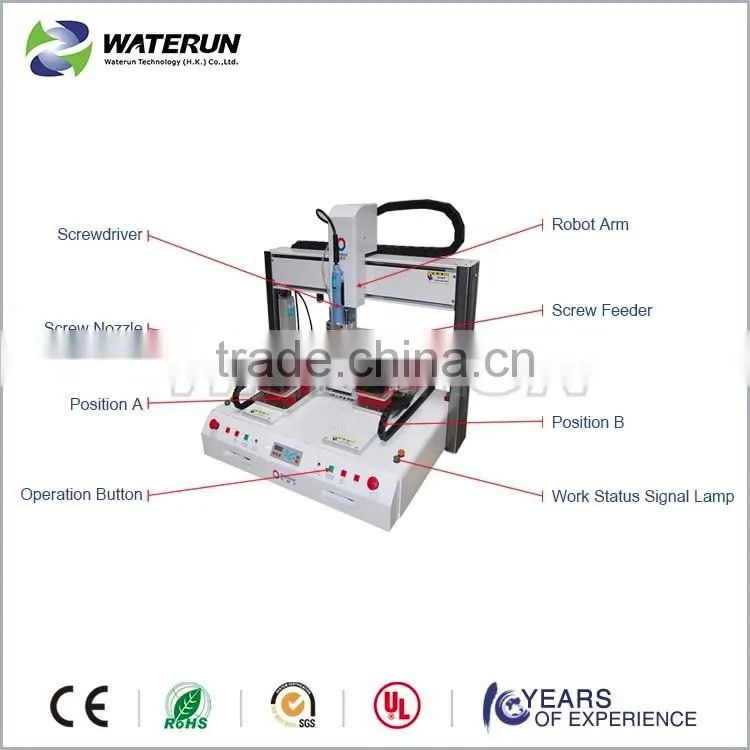

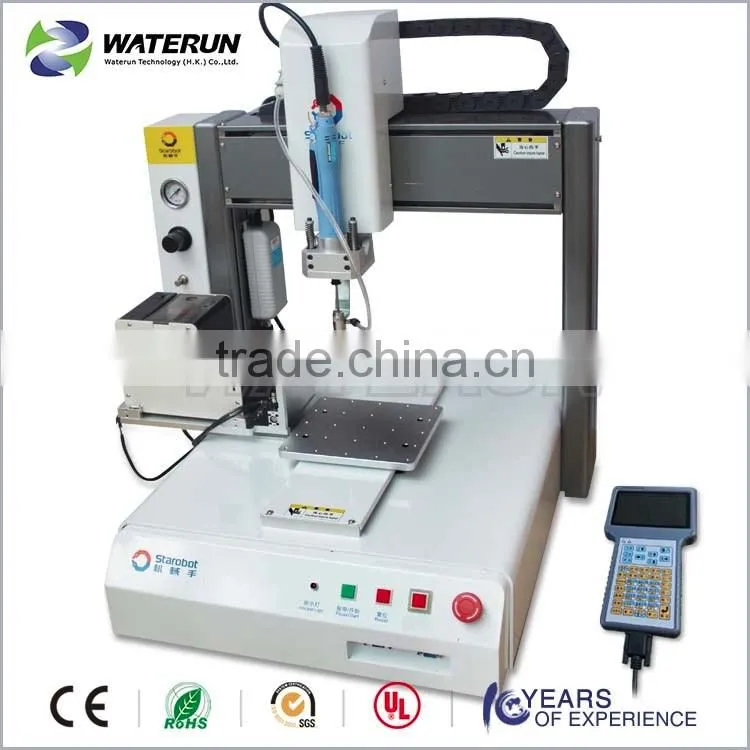

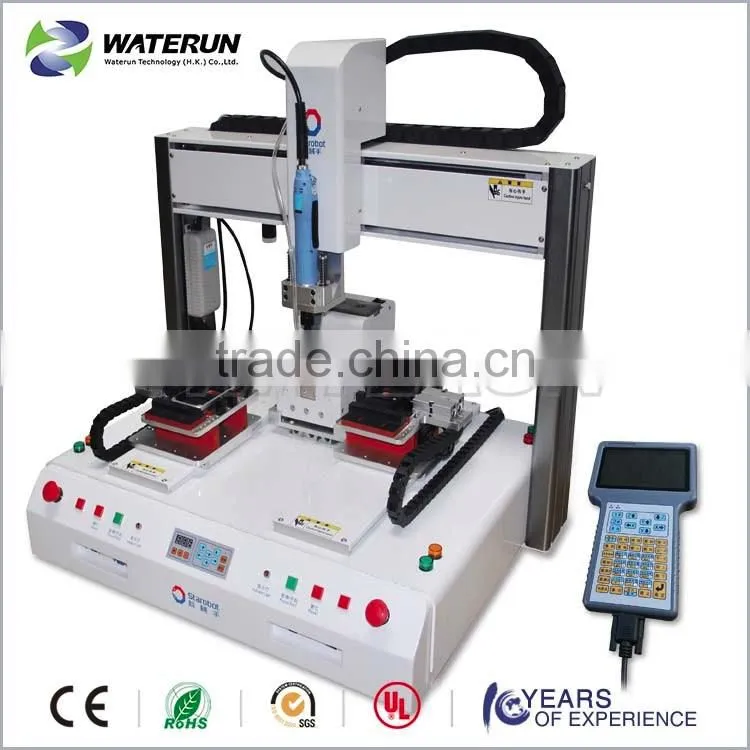

Desktop automatic screw fastening industrial robot for assembly
| Type | 4 axis screw tightening robot for assembly automation |
Model |
LS-300YY |
Voltage |
110V/220V AC |
| Drive Mode | 4 axis precision step motor |
| Operating Range | 500mm x 300mm x 80mm (X*Y*Z) |
| X / Y Axis Movement Speed | 0.1-800mm/sec |
| Z Axis Movement Speed | 0.1-400mm/sec |
| Resolution | 0.01mm (X*Y*Z) |
| Maximum Portable Load | 8kg (for work platform) |
| Program Capacity | 0~255 programs |
| Operate Temperature | 0°C~40 °C |
| Operate Humidity | 20~90% |
| Dimensions | 620 x 600 x 770mm |
| Weight | about 80kg |
| Optional Accessory |
A. one screw feeder, one screwdriver B. two screw feeder, one screwdriver C. two screw feeder, one screwdriver D. one screw feeder, one screwdriver, two cylinder clamping E. two scrwe feeder, one screwdriver, two cylinder clamping |
| Accessories | Different screw feeder and screwdriver combination to meet different requirement |

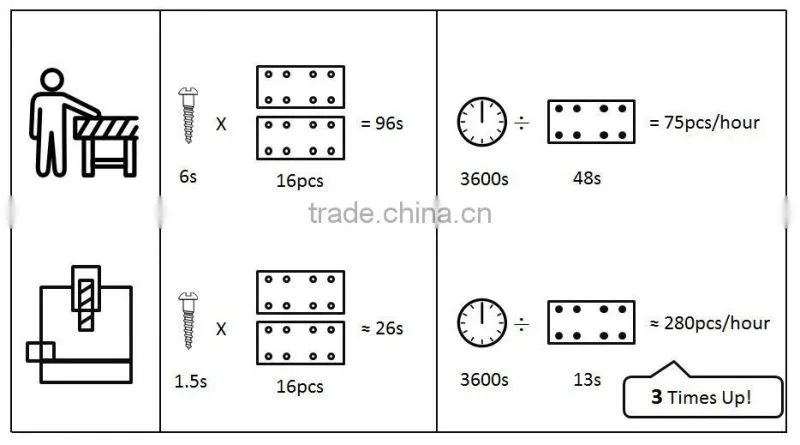

How does the screw tightening robot improve production efficiency?
Project Example: products require 8 umbers of M3 screws
Screw Robot: LS-300YY-D
| Object Located | Sate Screw Tightening | Collect the Finished Object | Next Station |
| 2s | 8 x 1.5s | 2s | |
| During these procedures, workder can operate other object placing | |||
- The stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy and repeat precision.
- Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
- It guarantees the high precision of screw fastening which cannot be achieved by the traditional manual screw fastening.
- Besides, it improves the production efficiency and reduces the labor cost.
- Suitable for most of the screws, especially the stainless steel screws.
- It is easy to learn the operation. One operator can operate several machines at the same time.
- The rail of the screw feeder is adjustable. (Applicable screws: M1.5 – M5.0)
| Model | Desktop automatic screw fastening industrial robot for assembly |
| Package | 1 set/ctn |
| Delivery | 5-7 days |
| Payment | Bank, Westerun Union, Paypal |
| Port | Shenzhen |
| Shipment |
A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
1.We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
