Help CenterJapan Precision Connector Mold Parts Manufacture
Related Products
-
Japan Precision Mould Components ManufacureUS$ 10 - 20MOQ: 1 Piece -
China Precision Mould Components ManufacturerUS$ 10 - 20MOQ: 1 Piece
-
SABIC M40053S HDPE Plastic Granules for Injection MoldingNegotiableMOQ: 1 Kilogram
-
PA66 R530H NAT Polyamide 66 Granules for Injection MoldingNegotiableMOQ: 1 Kilogram
-
HDPE Injection Molded Coffee Cup Lids in 8oz-20oz SizesNegotiableMOQ: 50000 Pieces
Product Information

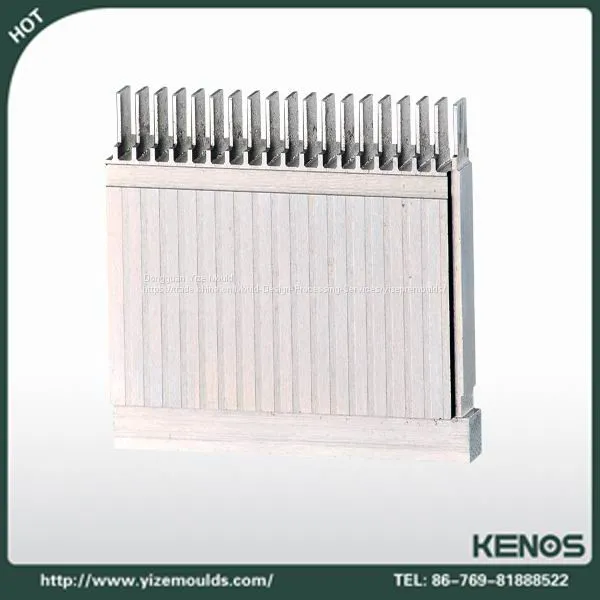

| Product name | precision connector mold parts |
| Material | imported material:SKD11,SKH9,SKH51,SKH55,high-speed steel,special material can customize |
| Grinding precision | 0.001mm |
| Surface roughness for EDM |
Ra 0.04 |
| EDM precision | 0.002mm |
| Grinding angle clearness | 0.002mm |
| MOQ | 1 PC |
Production Information
| Product accuracy | diamension tolerance ±0.001mm ,axiality within 0.002mm,roundness withing 0.0015mm,surfacae roughness wthin Ra 0.025,straightness within 0.002 |
| Technique standard | according to national standars GM,JIS,DIN,AISI,ect. and other national standard |
| Technique advantage |
grinding parts with precision less than 0.002,precise EDM parts with precision less than 0.005 |

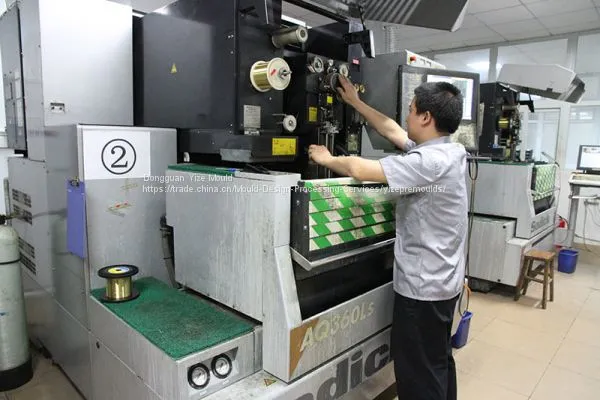

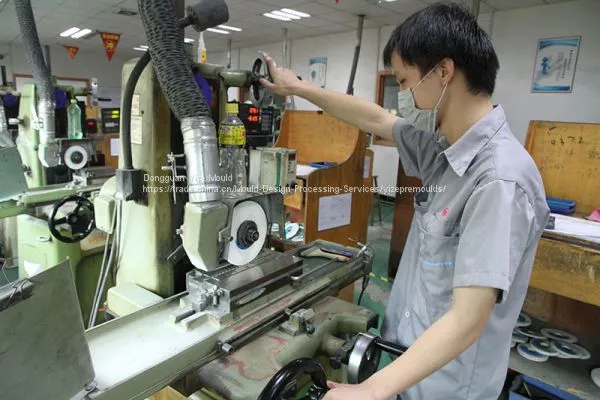

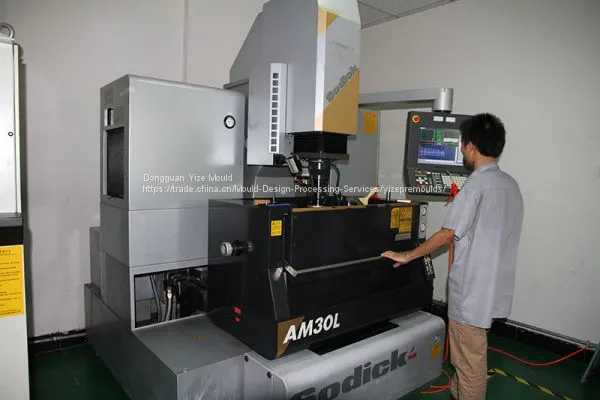

| Production equipment | all machinery used from import ,with EDM 15 sets,grinder 15 sets,,wire-cutting 3 sets,CNC 2 sets,milling machine 1 set |
| Our service | grinding process,grinding surface process,electro-discharge(wire EDM),CNC EDM,mirror EDM,CNC processing,precision mold parts process |
Processing Detail
Grinding precision can be within 0.001mm and grinding angle clearance can be within R0.015.
For stack tolerance of 100 pieces, we can control within 0.01mm.
The thinnest wire we use for wire cutting is 0.1mm,wire cutting precision can be within 0.005mm,linearity, parallelism, verticality can be within 0.002mm.
EDM precision within 0.003mm, EDM angle clearance within R0.015,EDM surface roughness within Ra0.2 are the technical precision available.
yizemould302147
After-sales service
If there are quality problems within 3 months, we are free to the customer maintenance and heavy, the resulting freight our burden.
Contact Information:
E-mail:cherry@dgyize.com
Telephone: +86-769-86243329 ext:8010
Skype: cherry@dgyize.com
Web: /
Address :No.122, Hexing Road, South Shatou District, Dongguan City, Guangdong Province, China 523866
