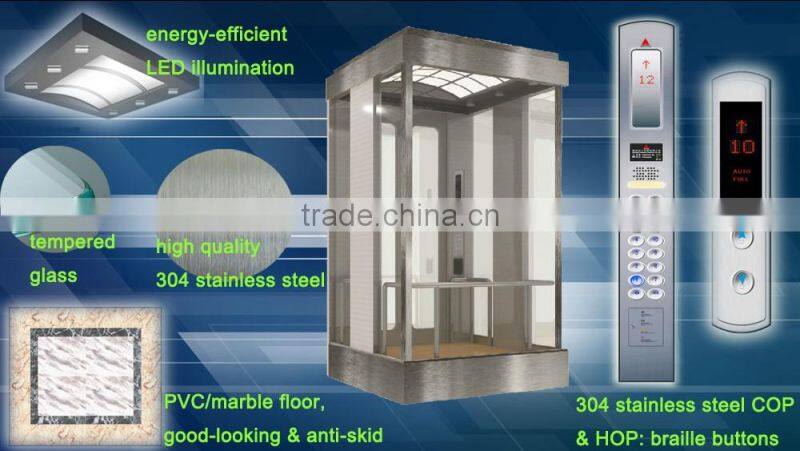

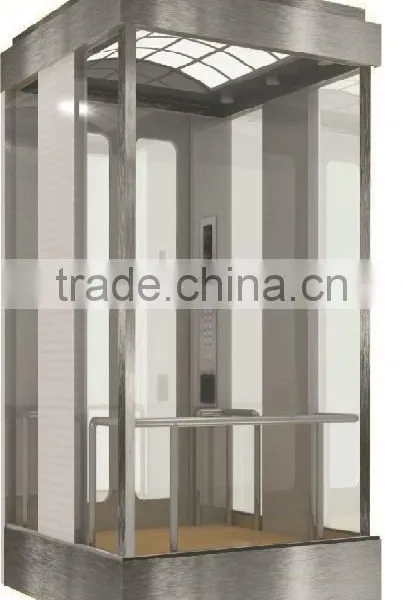

Yuanda Passenger Glass Lift

No.

Basic Function

No.

Basic Function

1

Full collective operation

2

Inverter multiple protection

3

Door detector function

4

Landing display flashing prompt

5

Non-entrance-opening protection outside the door

6

Full load by-pass

7

Anti-stall protection

8

Overload protection

9

Phase protection

10

Anti-lock shorting protection

11

Brake contactor detecting protection

12

Terminal Anti-over travel protection

13

Operation contactor detection protection

14

Running direction in scroll display

15

Floor nomination settings

16

Prevent slipping protection

17

Prevent reversal protection

18

Service floor settings

19

Automatic home landing

20

Door open button response indicating

21

Keep entrance opening time auto control

22

Door close button response indicating

23

Hall station exterior entrance opening

24

Door open button response indicating

25

Car reversal instruction elimination

26

Dot matrix floor display

27

Overload warning

28

Hoistway self-learning data

29

Parking function

30

Auto revision of hall station signal

31

Door open-closing blocked protection

32

Intercom communication with alarm

33

Inspection running

34

Arrival gong

35

Hall call function

36

Emergency lighting

37

Self-rescue operation

38

Running timeout protection

39

Arrival auto entrance

40

Over speed protection

41

Automatic close

42

Numbers of running record

43

Instant door close

44

Error code display

45

Open button for entrance opening

46

Error history

47

Failure Re-open

48

Attendant operation

49

Emergency return in case of fire

50

Remote monitoring interface reserving

51

Fireman operation function & reservation for fire fighting linkage interface

52

Car lighting and ventilation energy conservation control

53

Stainless steel panel/Stainless steel Braille buttons

54

Car LED energy efficient illumination

55

Five parties intercom

56

Car call reset

57

Humanized ultrahigh car configuration

Load(kg)

Number of Passenger

Speed(m/s)

Size Inside the Cabin(mm)

Entrance Opening Width(mm)

450

6

1.0/1.5/1.75

1400×900

800

630

8

1.0/1.5/1.75

1400×1200

800

800

10

1.0/1.5/1.75/2.0/3.0

1400×1400

800

1000

13

1.0/1.5/1.75/2.0/3.0

1600×1500

900

1250

16

1.0/1.5/1.75/2.0/3.0

2000×1400

1000

1350

18

1.0/1.5/1.75/2.0/3.0

2000×1500

1100

1600

21

1.0/1.5/1.75/2.0/3.0

2000×1700

1200

Load(kg)

Hoistway Dimension(mm)

Machine Room Dimension(mm)

Pit Depth(m)

Overhead(m)

450

2300×1400

2300×1400

1.5/1.6/1.7

4.3/4.4/4.5

630

2300×1600

2300×1600

1.5/1.6/1.7

4.3/4.4/4.5

800

2300×1800

2300×1800

1.5/1.6/1.7/1.8/2.5

4.3/4.4/4.5/4.8/5.0

1000

2500×1900

2500×1900

1.5/1.6/1.7/1.8/2.5

4.3/4.4/4.5/4.8/5.0

1250

2900×1900

2900×1900

1.5/1.6/1.7/1.8/2.5

4.3/4.4/4.5/4.8/5.0

1350

2900×1900

2900×1900

1.5/1.6/1.7/1.8/2.5

4.3/4.4/4.5/4.8/5.0

1600

2900×2100

2900×2100

1.5/1.6/1.7/1.8/2.6

4.3/4.4/4.5/4.8/5.0
