Specifications
truck body panel1,military technology
2,economic and convenient
3,CCC,ISO TS16949 certificate
4,export 40 country
Specifications
truck box body panels/frp truck body panels
1,military technology
2,3C certificate
3,Easy Installation
4,export 20country
A.- Cargo van or Box Truck
Camp (Skeleton Structure): Steel C channel, Omega channel or other that meets the quality. Thickness > 3 mm (equal or greater than) of course
Panels: Outer made with steel plate. Inner made with steel strips or steel lath in C or Omega channel. of course
Total Thickness 10 mm.(inner-outer) approx. bigger box panel is thicker ,usually panel thickness is 30mm or 40mm
Inner and outer use galvanization materials. chio steel(color steel) is better than galvanization
Floor: diamond or flat steel plate. Thickness >2,5 mm. (equal or greater than) of course, bigger box floor is thicker,usually it is 2.5mm or 3mm.

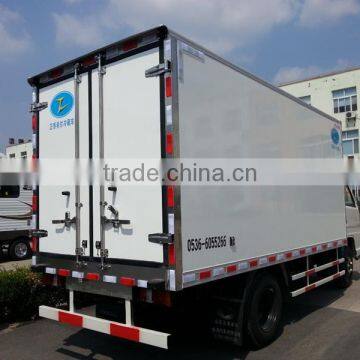

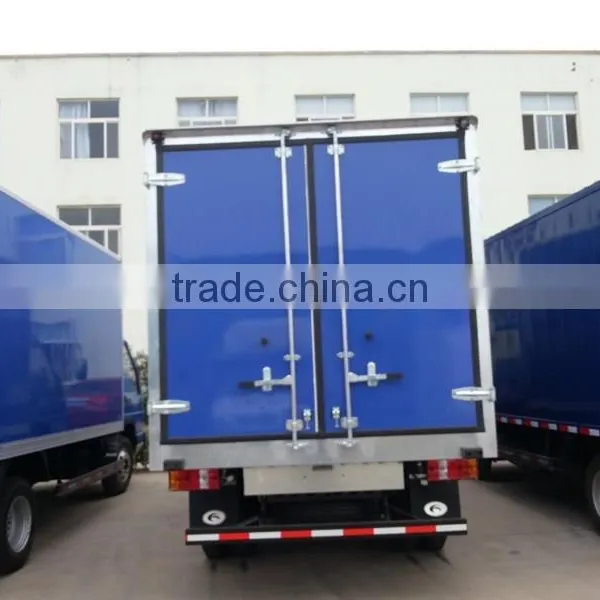

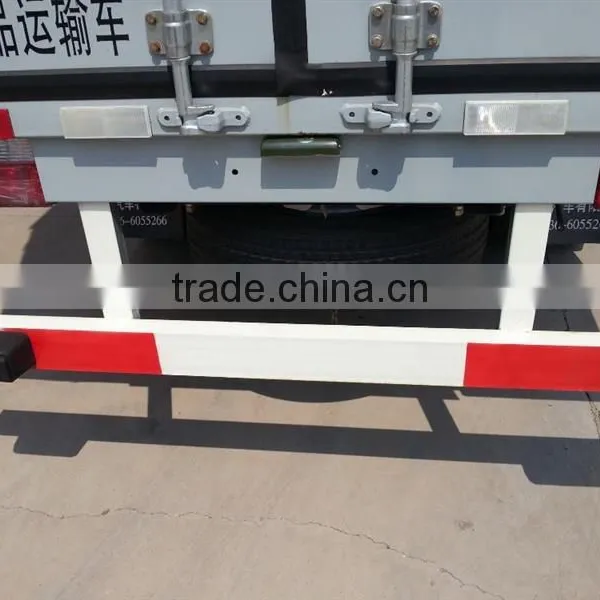

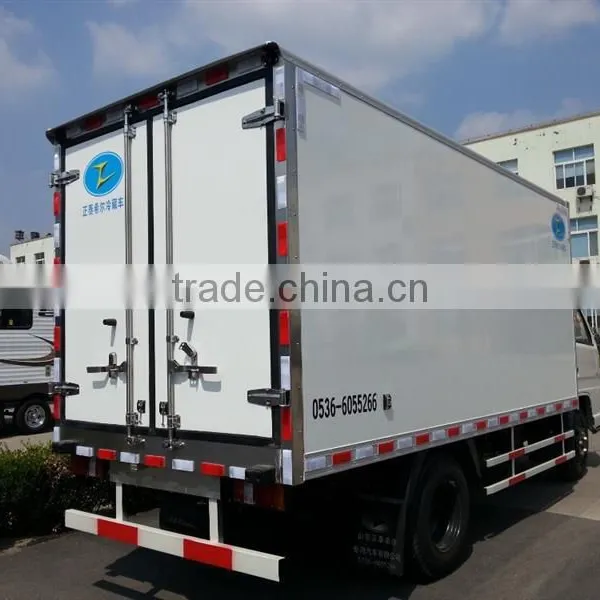

Rear doors (2) with galvanization materials. Right door open first. Mortise lock. ok
Side door on the right (1) with galvanization materials. ok
Inner dome light of course
Aluminum corner track. Of course
Corner body lights (4). Of course
model |
Box size |
thickness |
Door frame and lock |
20ft/40ft container |
A |
3.3*1.85*1.9 |
62mm |
Stainless steel |
8sets/ 20sets |
|
4.4*2.03*2.11 |
82mm |
Stainless steel |
|
|
4.9*2.21*2.11 |
82mm |
Stainless steel |
|
|
6.4*2.42*2.36 |
102mm |
Stainless steel |
|
|
6.72*2.3*2.1 |
102mm |
Stainless steel |
|
|
7.1*2.45*2.39 |
102mm |
Stainless steel |
|
B |
3.3*1.85*1.9 |
60mm |
Galvanized polishing |
5sets/ 11sets |
|
4.4*2.03*2.11 |
80mm |
galvanized polishing |
|
|
4.9*2.21*2.11 |
80mm |
galvanized polishing |
|
|
6.4*2.42*2.36 |
100mm |
galvanized polishing |
|
|
6.72*2.3*2.1 |
100mm |
galvanized polishing |
|
|
7.1*2.45*2.39 |
100mm |
galvanized polishing |
1.Products of our factory: Aluminum truck box body panels/frp truck body panels

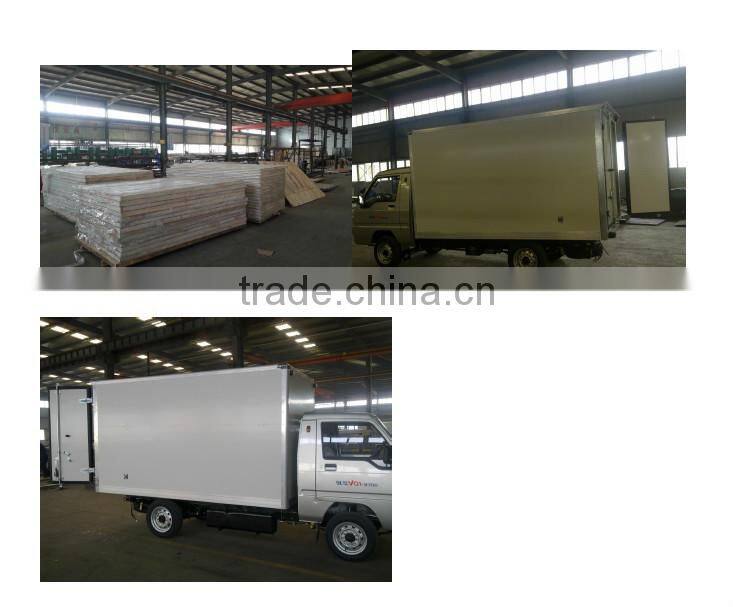

Truck body from FRP honeycomb panel
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc
The refrigerated truck body proecessed with FRP with insulation foam. Our standard thickiness is 100mm. But the thickness can be change according to customer's requirements.

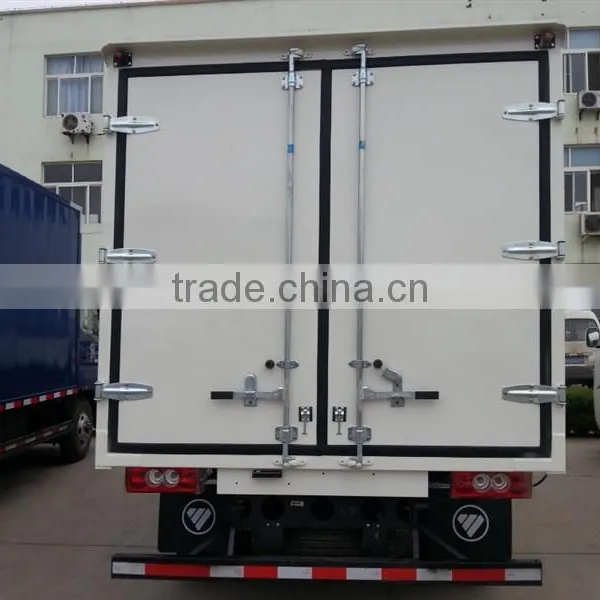

Stainless steel door frame and door lock system.
2, Aluminum truck box body panels/frp truck body panels Main Characters
Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.
3, Aluminum truck box body panels/frp truck body panels can be chosen at the follow range:
Length 0-15000mm
Width 0-3100mm
Thickness 25-135mm
4,Our products have been widely exported to India, Philippines, Pakistan, Yemen, Singapore, Hong Kong, Thailand, Uzbekistan, Peru, Australia, New Zealand, Tanzania as well as many other countries in Middle East, Southeast Asia, South America and Africa

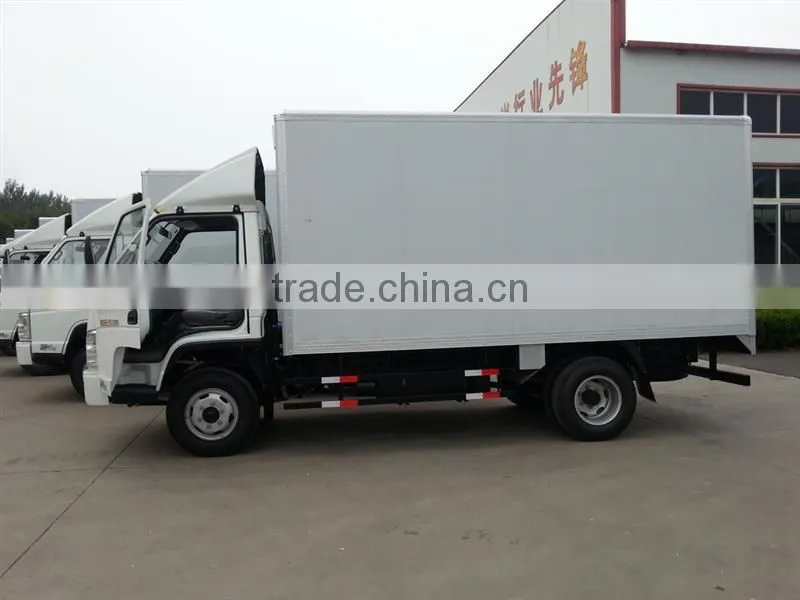

Aluminum Truck Bodies refrigerated cold room van truck
1) Germany technique
2)easier installation:pu foam,FPR,
3)Sandwich panel assembly
4) -18-20 degree
refrigerator truck,refrigerator box truck,refrigerated truck,refrigerator freezer truck,refrigerated freezer truck,
refrigerated box truck,refrigerator transport truck,refrigerator
refrigerated van and truck/cooling van truck/cold food truck/refrigerated freeze truck
refrigerator car truck/refrigerated truck/cold van /Refrigerated Cold Room Van Truck/refrigerator car
1.The advantage of refrigerated truck body
/cooling van truck/refrigerated truck/isuzu van truck refrigerator truck TK5209XLC
1).Cooling effect
2).Energy saving
3).Driving Comfort
4).High safety design
5).capacity:10tons
6).temperature:-18-20
7). High efficient and comfortable ergonomic space
8).Technical equipment leading in market

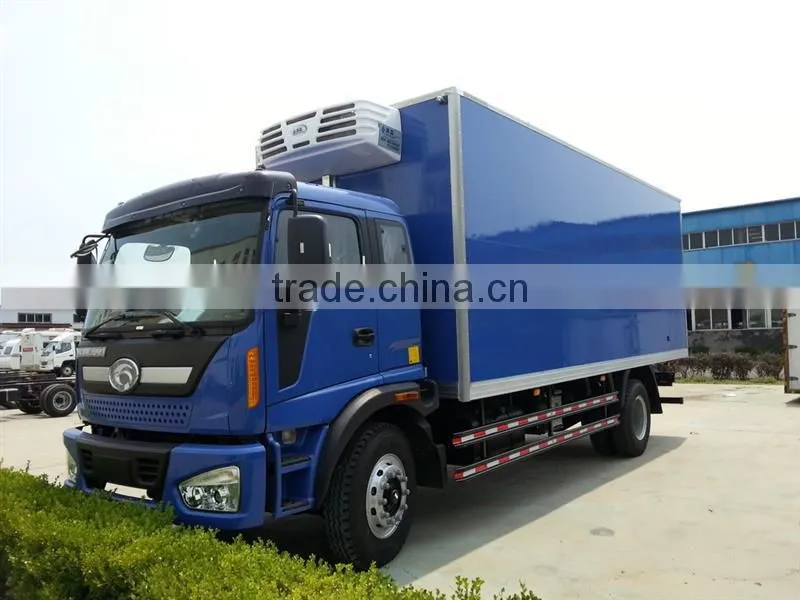

2.The Specifications of 16feet-26feet refrigerated truck body
refrigerated van truck/cooling van truck / cooling van truck/refrigerated truck/isuzu van truck /10feet -14feet refrigerated van and truck/cooling van truck/cold food truck/refrigerated freeze truck/ refrigerator car truck/refrigerated truck/cold van / Refrigerated Cold Room Van Truck/refrigerator car TK5120XLC
Product name |
refrigerated truck |
Product brand |
Taikai |
Product model |
TK5120XLC |
Chassis brand |
DFL1120B |
Overall dimension |
8530×2495×3840(mm) |
Cargo inside Size |
6000×2260×2300(mm) |
Total Mass |
12495 (Kg) |
Curb weight |
6400(Kg) |
Rated load |
6000(Kg) |
Approach/departure angle |
20/13(°) |

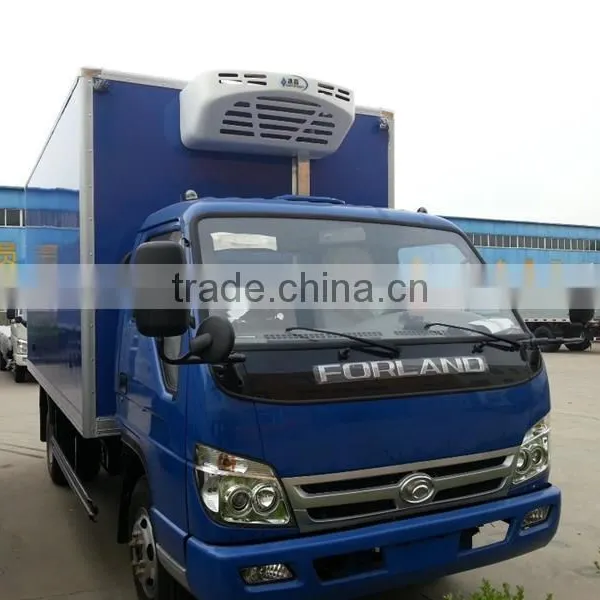

Cold unit |
KX-500 |
||
Displacement |
Engine type |
Engine manufacturers
|
Power |
Others |
Truck box top closure, side door option |
||
Cold Box For Van and Truck
1) Germany technique
2)easier installation:pu foam
3)Sandwich panel assembly
4) -18-20 Degree
-------------------------------------------------------------------------------------------------------------------------------------------------
2.Products of our company: CKD van truck body/
Truck body from FRP honeycomb panel
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc
The refrigerated truck body proecessed with FRP with insulation foam. Our standard thickiness is 80mm. But the thickness can be change according to customer's requirements.
Design of whole vehicle match; give full play to good quality sites, high quality refrigeration car comprehensive performance.
Dedicated dual compressor chassis development. Standardized installation of refrigeration system, ensure the reliability of system operation.
Development thinking in accordance with the vehicle, the chassis carrying capacity of front and gear axles, brake-force distribution and lateral stability, consider the design of car body sizes and chassis connections, ensure that the vehicle’s performance.
Good insulation properties, high quality transport
carriage plate forming as a whole, no seams; car body using the seamless bonding process.
intermediate insulating layer of composite plate with rigid PU foam, density, closed-cell rate is above 80%.
no heat thermal bridge design of car body structure.
Overall heat transfer coefficient of ≤ 0.3W/M2 van • k, air tightness and heat insulation performance is higher than the national a-level standard. Refrigerated van body cools faster, refrigerator with shorter working hours, guarantee the quality of freight transport at the same time, more fuel, and electricity-saving.
High strength, light weight, long life.
Surrounding the use of enhanced aluminum, thickness up to 4mm, guaranteed connection compartment strength while reducing car body weight.
Integrated design of stiffeners, greatly increased to enhance the car plate strength

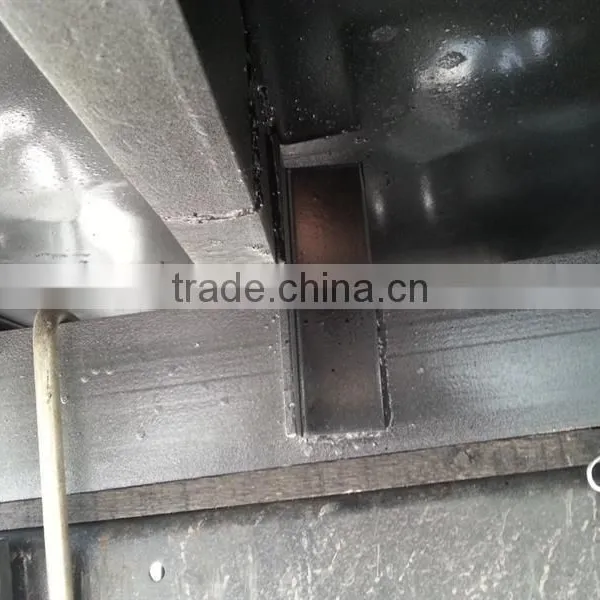

Floor under longitudinal beam-beam structure, improve the car's carrying capacity
Car plate surface according to user requirements or resin material made of aluminum, stainless steel plate, car body surface corrosion-resistant performance of up to 10 years or more.
