32T BPW Type Truck Spoke Bogie

32T BPW Type Truck Spoke Bogie thumbnail-1
32T BPW Type Truck Spoke Bogie photo-1
US$ 2,500 - 3,500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
TMBS32-A01
Max Payload:
60T
Contact Supplier Request Quote Chat Now
Xiamen Tinmy Autoparts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Suspension
OEM No. TMBS32-A01
Max Payload 60T
Size 32T
Place of Origin Fujian, China
Brand Name Tinmy
Model Number TMBS32-A01



Product Description

Truck Bogie:

1) Type: Drum & Spoke & Spider type Bogie
2) Capacity: 24T, 28T, 32T, 40T

3) Brake: S 420x180, 420x200, 420x220
4) Track: 1840mm/1870mm, by customer's request
5) Axle Tube: 150*150mm

6) High quality, Good price, Fast delivery





Drum type Bogie



Item No. Capacity(T) Weight (kg) Bearing type Axle Tube (mm) Brake Lining Size(mm) Track   (mm) P.C.D   (mm) Tyre Screw Steel Turn Position(mm) Axle Space(mm)
TMBD24-A01 24 2040 33213   33118 150×150×12 Φ 420*180 1840 Φ335 10-M22*2 Φ280 1400
TMBD28-A01 28 2492 33215   32219 150×150×14 Φ 420*200 1870 Φ335 10-M22*2 Φ280 1550
TMBD32-A01 32 2492 32314   32222 150×150×16 Φ 420*220 1870 Φ335 10-M22*2 Φ280 1550
TMBD40-A01 40 2572 32314   32222 150×150×20 Φ 420*220 1870 Φ335 10-M22*2 Φ280 1550



Spoke type Bogie:



Item No. Capacity(T) Weight(kg) Bearing type Axle Tube (mm) Brake Lining Size (mm) Dual Spacing(mm) Rim Diameter Axle Space(mm)
TMBS24-A01 24 2150 33213   33118 150×150×12 Φ 420*180 1870 6×M22   Space 24" 1400
TMBS28-A01 28 2665 33215   32219 150×150×14 Φ 420*200 1870 6×M22   Space 24" 1550
TMBS32-A01 32 2665 32314   32222 150×150×16 Φ 420*220 1870 6×M22   Space 24" 1550
TMBS40-A01 40 2745 32314   32222 150×150×20 Φ 420*220 1870 6×M22   Space 24" 1550

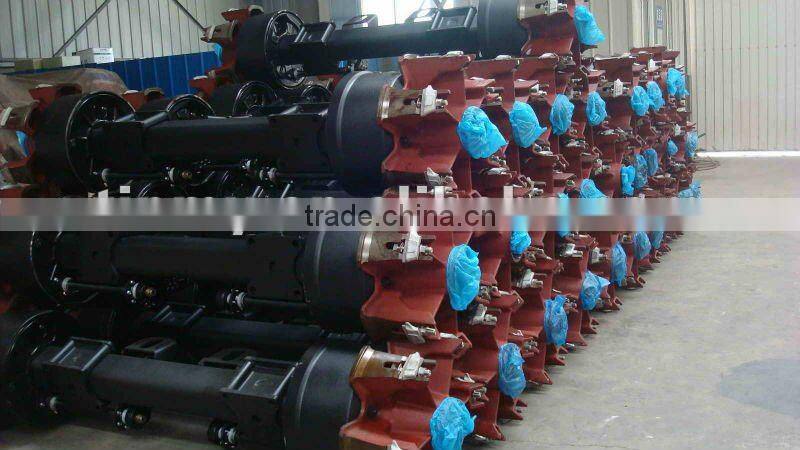

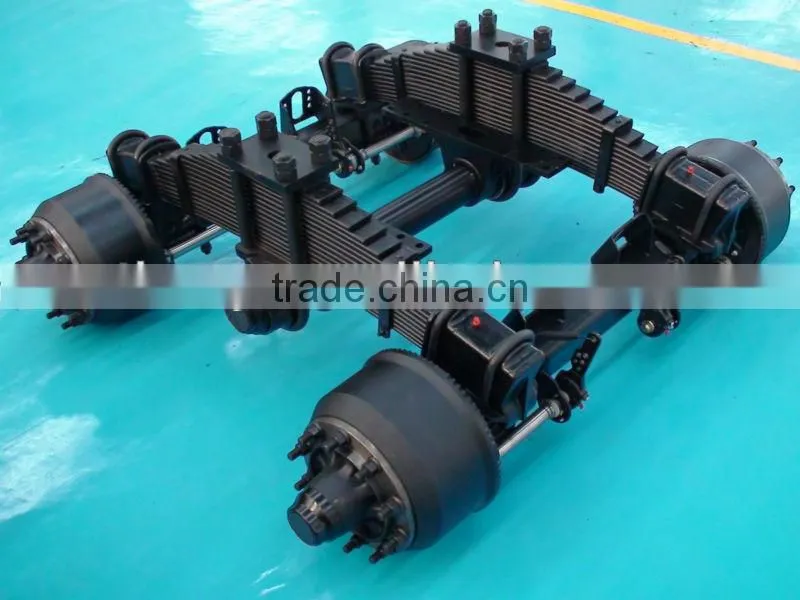

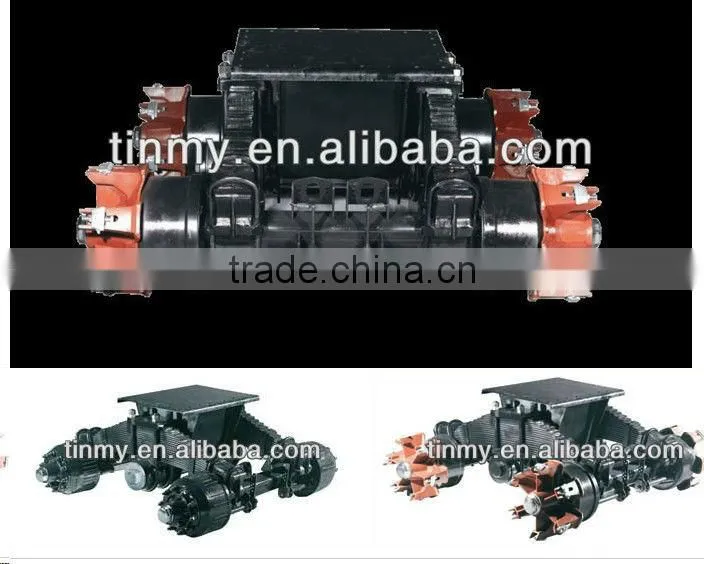

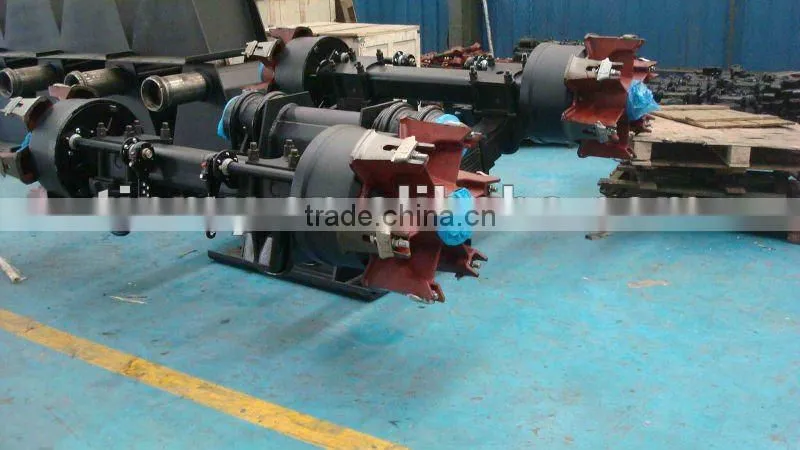

32T BPW type Truck Spoke Bogie32T BPW type Truck Spoke Bogie32T BPW type Truck Spoke Bogie

32T BPW type Truck Spoke Bogie

32T BPW type Truck Spoke Bogie



Packaging & Shipping

  Assembled Loose packing, or CKD parts in seaworthy packing



Our Services

 Sample service, Customized service
