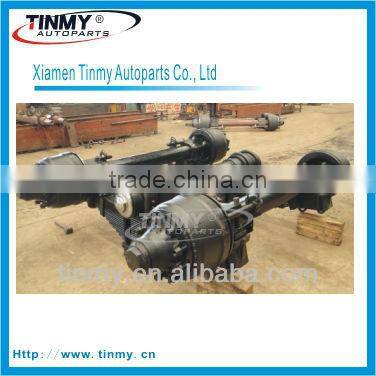

BPW Drum Bogie for trucks & trailers with high quality

Specifications

BPW Drum Bogie for trucks & trailers with high quality:
1.Drum&spoke Bogie
2.German BPW type Bogie axle
3.Certi:ISO/TS16949

BPW Drum Bogie for trucks & trailers with high quality:



1. Tinmy  manufacture 24 TONS, 28 TONS, 32 TONS and 40TONS Bogie
2. Drum and spoke Bogie
3. German bpw type Bogie axle

4. Certificate: ISO/TS16949







Mechanical suspension, bogie suspension and air suspension with high quality and competitive price:

1. 1-axle, 2-axle, 3-axle and 4-axle mechanical suspension and air suspension.

2. 24 T, 28 T, 32T and 40T  Bogie .

3. our yearly turnout is over 8000 units different suspension basic on on-time delivery.



Various axles for different trucks and trailers:

1. American Type Axle: 5.5T, 8T, 9T, 10.5T, 11T, 12T, 13T, 14T, 16T, 18T, 20T.

2. German Type Axle: 12T, 14T, 16T, 20T.

3. Other special axles are available according to clients' design or requirement.

4. The yearly turnout is over 100,000 pieces different axles based on on-time delivery





Drum Bogie:



Item No.	Capacity(T)	Weight  (kg)	Bearing type	Axle Tube  (mm)	Brake Lining Size(mm)	Track   (mm)	P.C.D   (mm)	Tyre Screw	Steel Turn Position(mm)	Axle Space(mm)
TMBD24-A01	24	2040	33213   33118	150×150×12	Φ 420*180	1840	Φ335	10-M22*2	Φ280	1400
TMBD28-A01	28	2492	33215   32219	150×150×14	Φ 420*200	1870	Φ335	10-M22*2	Φ280	1550
TMBD32-A01	32	2492	32314   32222	150×150×16	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550
TMBD40-A01	40	2572	32314   32222	150×150×20	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550



Spoke Bogie:

Item No.	Capacity(T)	Weight  (kg)	Bearing type	Axle Tube  (mm)	Brake Lining Size(mm)	Track   (mm)	P.C.D   (mm)	Tyre Screw	Steel Turn Position(mm)	Axle Space(mm)
TMBD24-B01	24	1850	33213   33118	150×150×12	Φ 420*180	1840	Φ335	10-M22*2	Φ280	1400
TMBD28-B01	28	2320	33215   32219	150×150×14	Φ 420*200	1870	Φ335	10-M22*2	Φ280	1550
TMBD32-B01	32	2320	32314   32222	150×150×16	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550
TMBD40-B01	40	2540	32314   32222	150×150×20	Φ 420*220	2120	Φ335	10-M22*2	Φ280	1550
