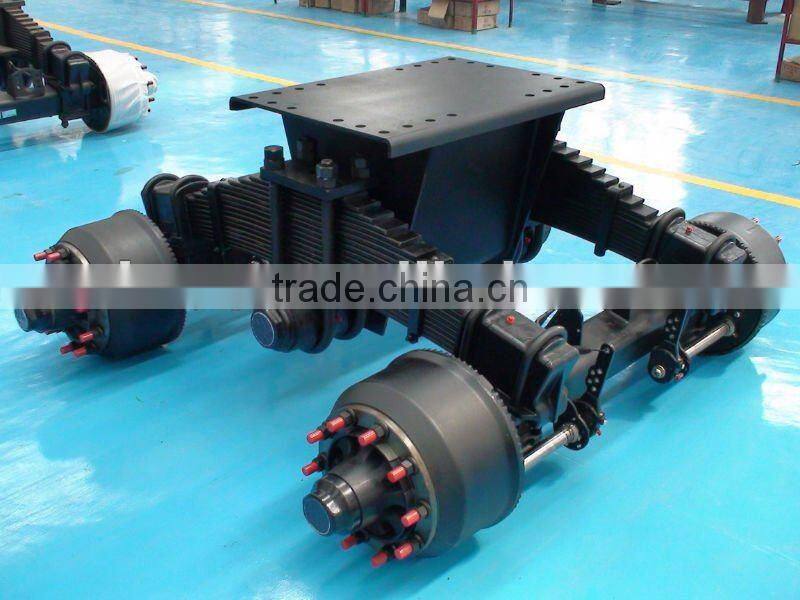

BPW Trailer Bogie Suspension

Specifications

BPW Trailer Bogie Suspension:
1.Supply 24 T,28T,32T, 40T
2.Drum&Spoke Bogie;
3.FUWA, BPW type bogie suspension.
4. TS16949

BPW Trailer Bogie Suspension:
1.Supply 24 T,28T,32T, 40T
2.Drum&Spoke Bogie;
3.FUWA, BPW type bogie suspension.
4. TS16949







Xiamen Tinmy Autoparts Co., Ltd, belongs to Tinmy Group.

Our company is a leading supplier in auto parts that organized

by several factories and jointventured manufacturers,

which are successfully certified with TS16949 and ISO9001/2000 quality control system.







Drum Bogie:

Item No.	Capacity(T)	Weight  (kg)	Bearing type	Axle Tube  (mm)	Brake Lining Size(mm)	Track   (mm)	P.C.D   (mm)	Tyre Screw	Steel Turn Position(mm)	Axle Space(mm)
TMBD24-A01	24	2040	33213   33118	150×150×12	Φ 420*180	1840	Φ335	10-M22*2	Φ280	1400
TMBD28-A01	28	2492	33215   32219	150×150×14	Φ 420*200	1870	Φ335	10-M22*2	Φ280	1550
TMBD32-A01	32	2492	32314   32222	150×150×16	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550
TMBD40-A01	40	2572	32314   32222	150×150×20	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550



Spoke Bogie:

Item No.	Capacity(T)	Weight  (kg)	Bearing type	Axle Tube  (mm)	Brake Lining Size(mm)	Track   (mm)	P.C.D   (mm)	Tyre Screw	Steel Turn Position(mm)	Axle Space(mm)
TMBD24-B01	24	1850	33213   33118	150×150×12	Φ 420*180	1840	Φ335	10-M22*2	Φ280	1400
TMBD28-B01	28	2320	33215   32219	150×150×14	Φ 420*200	1870	Φ335	10-M22*2	Φ280	1550
TMBD32-B01	32	2320	32314   32222	150×150×16	Φ 420*220	1870	Φ335	10-M22*2	Φ280	1550
TMBD40-B01	40	2540	32314   32222	150×150×20	Φ 420*220	2120	Φ335	10-M22*2	Φ280	1550
