US$ 1,800 - 3,600
MOQ: 2 Units
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
24Ton
Max Payload:
50Ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Suspension
OEM No.
24Ton
Max Payload
50Ton
Size
track 1840
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMBS24-A1
Specifications
Bogie Suspension for Truck Trailer1> 24T, 28T, 32T, 40T Bogie
2> Durm type Bogie, Spoke type Bogie
3> ISO/TS16949

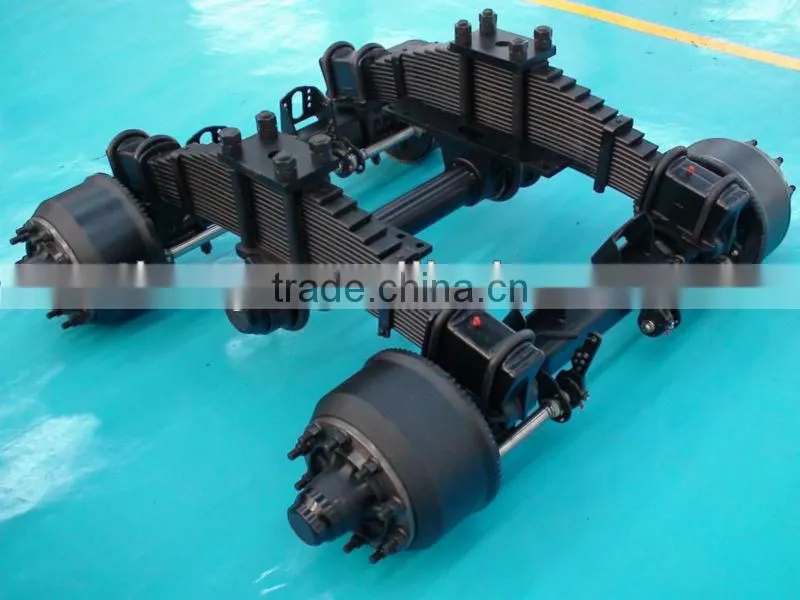

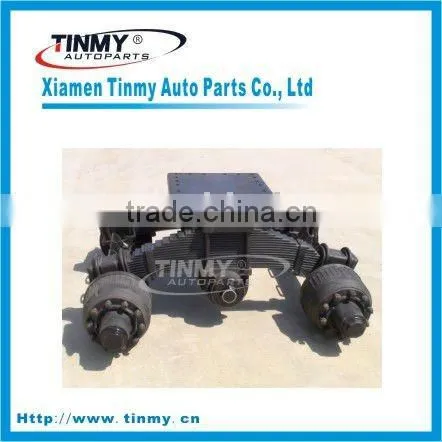

Bogie Suspension for Truck Trailer:
1)Type: Drum, Spoke, Spider type Bogie
2)Capacity: 24T, 28T, 32T, 40T
3)Certificate: ISO9001:2000/TS16949
4)Brake: S 420x180, 420x200, 420x220
5)Track: 1840mm/1870mm, made by customer's request
6)Axle Tube: 150*150mm
7)High quality, Good price, Fast delivery
Drum type Bogie
| Item No. | Capacity(T) | Weight (kg) | Bearing type | Axle Tube (mm) | Brake Lining Size(mm) | Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn Position(mm) | Axle Space(mm) |
| TMBD24-A01 | 24 | 2040 | 33213 33118 | 150×150×12 | Φ 420*180 | 1840 | Φ335 | 10-M22*2 | Φ280 | 1400 |
| TMBD28-A01 | 28 | 2492 | 33215 32219 | 150×150×14 | Φ 420*200 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD32-A01 | 32 | 2492 | 32314 32222 | 150×150×16 | Φ 420*220 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD40-A01 | 40 | 2572 | 32314 32222 | 150×150×20 | Φ 420*220 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
Spoke type Bogie:
| Item No. | Capacity(T) | Weight(kg) | Bearing type | Axle Tube (mm) | Brake Lining Size (mm) | Dual Spacing(mm) | Rim Diameter | Axle Space(mm) |
| TMBS24-A01 | 24 | 2150 | 33213 33118 | 150×150×12 | Φ 420*180 | 1870 | 6×M22 Space 24" | 1400 |
| TMBS28-A01 | 28 | 2665 | 33215 32219 | 150×150×14 | Φ 420*200 | 1870 | 6×M22 Space 24" | 1550 |
| TMBS32-A01 | 32 | 2665 | 32314 32222 | 150×150×16 | Φ 420*220 | 1870 | 6×M22 Space 24" | 1550 |
| TMBS40-A01 | 40 | 2745 | 32314 32222 | 150×150×20 | Φ 420*220 | 1870 | 6×M22 Space 24" | 1550 |
