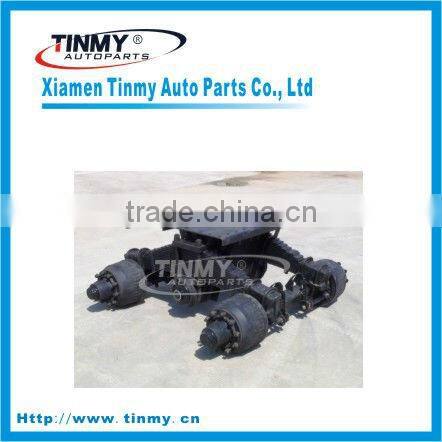

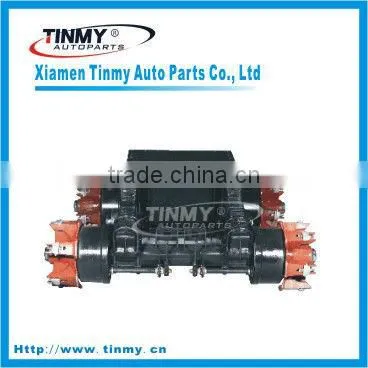

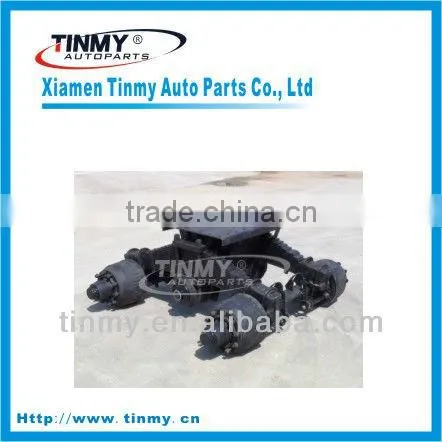

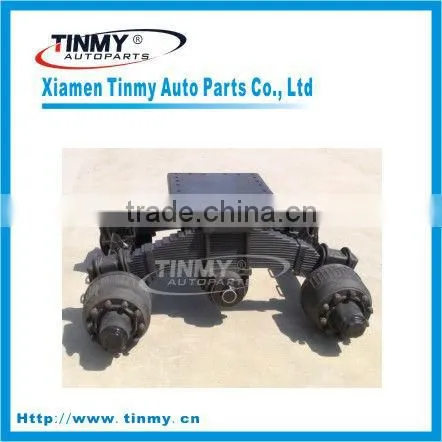

Bogie suspension for trailer:
1) Type: Drum, Spoke, Spider bogie
2) Certificate: ISO/TS16949
3) Capacity: 24T,28T,32T,40T, etc
4) Brake: S420x180,420x200,420x220, etc
5) Track: 1840~2120mm
6) Beam : 150*150*12 ,150*150*14,150*150*16, etc
Tinmy Axle Factory can produce various bogies for different trucks and trailers.
High quality with competitive price & fast delivery.
Trailer Bogie:
Drum Bogie:
| Item No. | Capacity(T) | Weight (kg) | Bearing type | Axle Tube (mm) | Brake Lining Size(mm) | Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn Position(mm) | Axle Space(mm) |
| TMBD24-A01 | 24 | 2040 | 33213 33118 | 150×150×12 | Φ 420*180 | 1840 | Φ335 | 10-M22*2 | Φ280 | 1400 |
| TMBD28-A01 | 28 | 2492 | 33215 32219 | 150×150×14 | Φ 420*200 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD32-A01 | 32 | 2492 | 32314 32222 | 150×150×16 | Φ 420*220 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD40-A01 | 40 | 2572 | 32314 32222 | 150×150×20 | Φ 420*220 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
Spoke Bogie:
| Item No. | Capacity(T) | Weight (kg) | Bearing type | Axle Tube (mm) | Brake Lining Size(mm) | Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn Position(mm) | Axle Space(mm) |
| TMBD24-B01 | 24 | 1850 | 33213 33118 | 150×150×12 | Φ 420*180 | 1840 | Φ335 | 10-M22*2 | Φ280 | 1400 |
| TMBD28-B01 | 28 | 2320 | 33215 32219 | 150×150×14 | Φ 420*200 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD32-B01 | 32 | 2320 | 32314 32222 | 150×150×16 | Φ 420*220 | 1870 | Φ335 | 10-M22*2 | Φ280 | 1550 |
| TMBD40-B01 | 40 | 2540 | 32314 32222 | 150×150×20 | Φ 420*220 | 2120 | Φ335 | 10-M22*2 | Φ280 | 1550 |
Xiamen Tinmy Co., Ltd, which belongs to Xiamen Tinmy Inc., Is a leading supplier in auto parts and construction machine parts that organized by several factories and joint-ventured enterprises and is successfully certified with TS16949 and ISO9001/2000 quality control system.
OEM service provided.
Complete & considerate after-sale service.
By standard seaworthy packing.
If you have any special request, feel free to contact us.
