China Drum Axle Semi Trailer Bogie Manufacturers

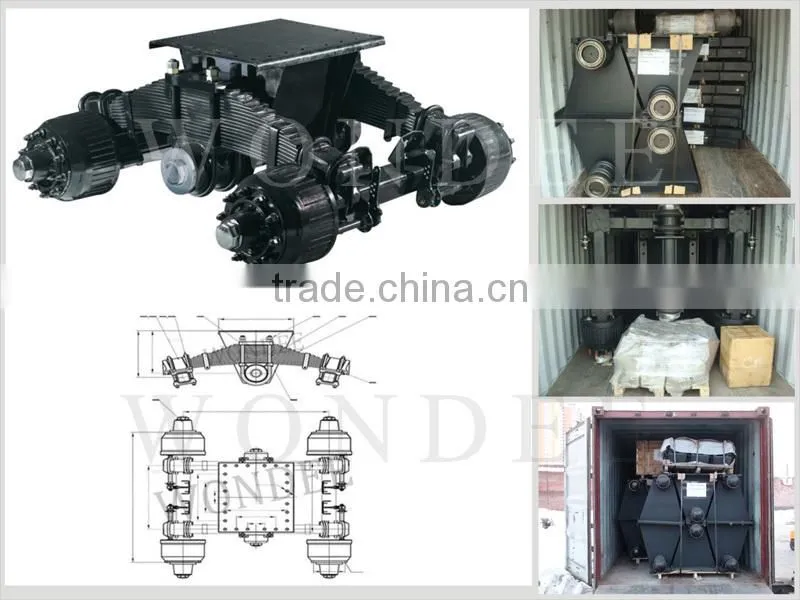

China Drum Axle Semi Trailer Bogie Manufacturers photo-1
US$ 2,500 - 3,500 MOQ: 6 Sets
Key Specifications
Get Latest Price
Type:
Other, Suspension Assembly, Drum Type,High Plate
Material:
Steel
Truck Model:
Other, Trailer
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Suspension Assembly, Drum Type,High Plate
Material Steel
Truck Model Other, Trailer
OEM No. WBHS24-232201 Trailer Bogie Manufacturers
Place of Origin Fujian, China
Brand Name WONDEE Trailer Bogie Manufacturers
Model Number WBHS24-232201















The Detail Package about China Drum Axle Semi Trailer Bogie Manufacturers:



China Drum Axle Semi Trailer Bogie Manufacturers







China Drum Axle Semi Trailer Bogie Manufacturers Information:



Wondee autoparts has been supplying trailer parts more than ten years.

You can be confident, because WONDEE believe in high quality and considerate service all the time.



1.Has passed the ISO and TS16949 standard authentication of international quality control system

2.Strict quality control system to assure our excellent product quality.

ducts are popular in the worldwide market, including North American, South American, European, African and Southeast Asian markets.



Wondee supply Mechanical Suspension with 2-axle,3-axle,4-axle suspension



Bogie Manufacturers Dimension:



Bogie(drum)



High plate



Item No.

Rated Load(kg)

Weight (kg)

Bearing type

Brake Lining(mm)

Track   (mm)

Leaf Spring(mm)

Axle Space(mm)

WBHD24-221101

24000

1850

33213/33118

Φ 420*200

1840

980

1400

WBHD28-222301

28000

2320

33215/32219

Φ 420*200

1840

900

1550

WBHD32-222301

32000

2320

32314/32222

Φ 420*200

1840

900

1550

WBHD36-232301

36000

2540

33214/32222

Φ 420*220

1850

900

1550





Bogie(drum)



Low plate



Item No.

Rated Load(kg)

Weight (kg)

Bearing type

Brake Lining(mm)

Track   (mm)

Leaf Spring(mm)

Axle Space(mm)

WBLD24-11101

24000

1850

33213/33118

Φ 420*200

1870

980

1400

WBLD28-11101

28000

2320

33215/32219

Φ 420*200

1870

900

1550

WBLD32-11101

32000

2320

32314/32222

Φ 420*200

1870

900

1550

WBLD36-11101

36000

2540

33214/32222

Φ 420*200

2120

1150

1550





Following axles with 8 holes and 10 holes are waiting for you to choose:

1) 12 ton capacity axle

2) 13 ton capacity axle

3) 14 ton capacity axle

4) 16 ton capacity axle



With the earnest work of our 50 technicians, we have developed diversity of different sizes and types axles for various applications.









Besides Bogie Manufacturers, WONDEE AUTOPARTS also Supply LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION,AXLE ... .... ...

 China Drum Axle Semi Trailer Bogie Manufacturers









WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying



a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From



2009,WONDEE has expanded the business to special steel , agricultural machinery parts &



wheel rim production line.





In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are



certified to the ISO/TS16949 international system.
